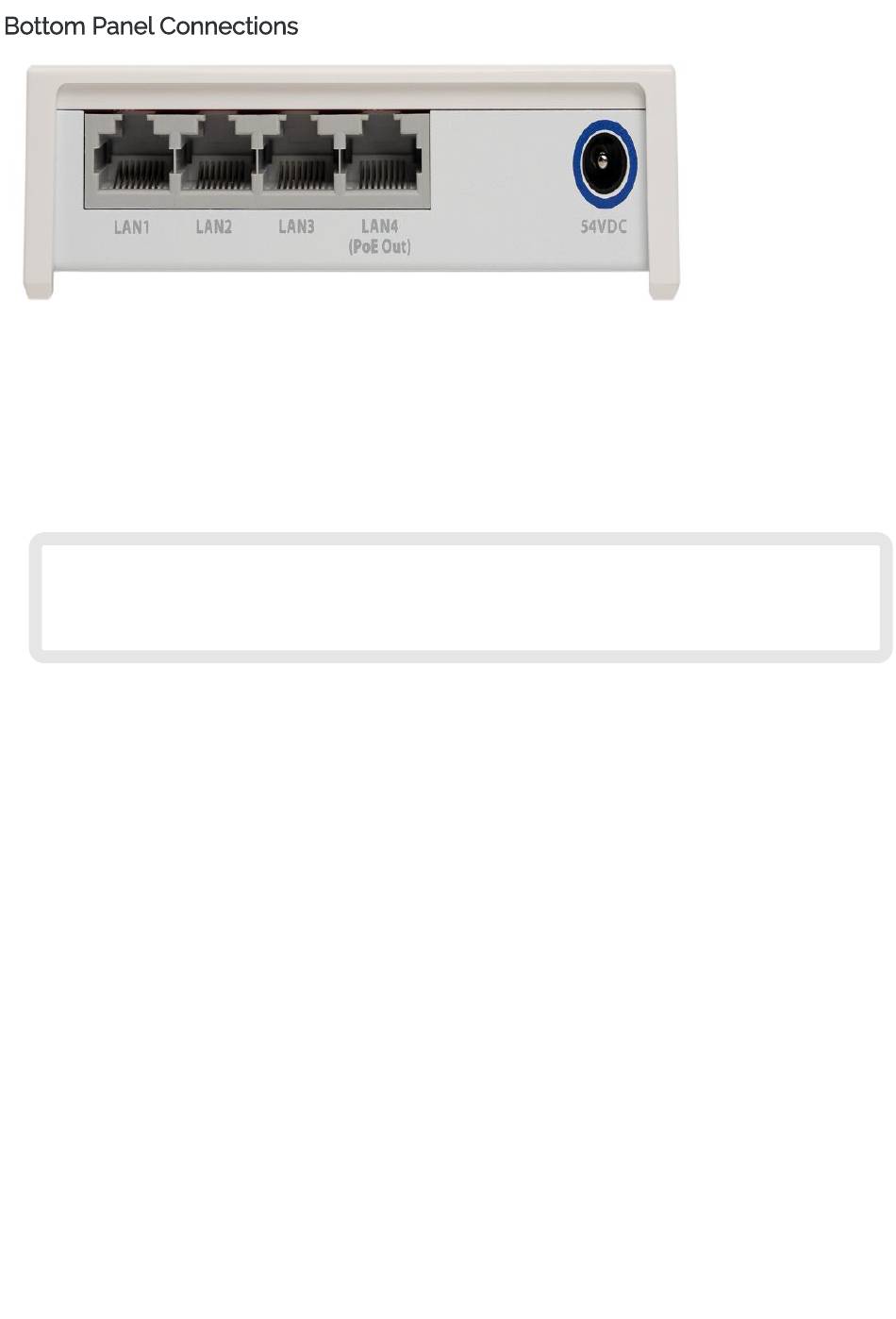

Bottom Panel Connections

LAN1, LAN2, LAN3
These are standard RJ45 connectors that support link speeds of 10/100/1000 Mbps for a wired
connection.
LAN4 (PoE Out)
This is a standard RJ45 connector that supports link speeds of 10/100/1000 Mbps for a wired connection.
This port can also provide PSE/PoE (802.3af) power (7W) for another device. The access point must be
connected to PoE+ (802.3at) or a power adapter to enable power on the LAN4 (PoE Out) port.
The PoE Out port is intended to power small devices such as IP-based phones, cameras, or
other similar devices. WatchGuard recommends that you do not power another access point
from this port.
54VDC Input
If PoE power is unavailable, you can power the device with the optional 54VDC power adapter. Before
you connect the adapter, verify that the color band on the cord matches the color ring around the power
plug on the access point (purple).
