Summary of Contents for Watchguard AP320

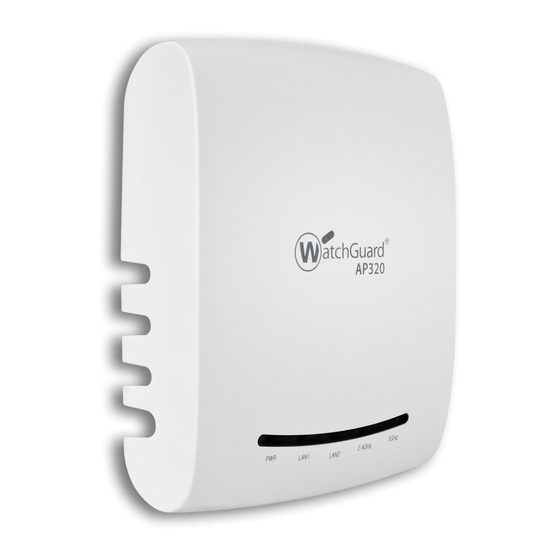

- Page 1 WatchGuard AP320 Hardware Guide AP320...
- Page 2 Copyright© 2017 WatchGuard Technologies, Inc. All rights reserved. WatchGuard, the WatchGuard logo, LiveSecurity, and any other mark listed as a trademark in the “Terms of Use” portion of the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard Technologies, Inc.
-
Page 3: Hardware Specifications
Local management, configuration, security, and monitoring of AP devices directly from your WatchGuard Firebox. The WatchGuard Firebox requires Fireware OS v11.11.2 or higher. For more information about how to set up and manage your WatchGuard AP device, you can find documentation online at: http://www.watchguard.com/wgrd-help/documentation/overview Package Contents ... -
Page 4: About Your Hardware
177mm × 155mm × 42mm Weight 0.82 lb. (0.37 kg) Environmental Requirements To safely install your WatchGuard AP device, we recommend that you: Install the device indoors. Make sure the device has adequate clearance for air flow and cooling. -
Page 5: Hardware Description
CONSOLE: Standard RJ45 connector for serial console access. Power Input The WatchGuard AP320 can be powered by an 802.3af PoE of nominal input voltage 48v DC on the LAN1 interface. You can also power the device with an optional AC power adapter. Make sure you use only an AC power adapter supported by the AP320 device. - Page 6 Hardware Specifications Reset Button Resets the WatchGuard AP device to factory-default settings. You must use a paper clip or other small object to press the reset button through the small hole on the back of the device. To reset the device to factory-default settings, power cycle the device (remove the power cable and reconnect it again).
-
Page 7: Device Indicators
LAN2 2.4 GHz 5 GHz Description Solid green Solid green On/Off Powered on and operating correctly. Connected to WatchGuard Wi-Fi Cloud services. Solid green Slow flash On/Off Slow flash Software upgrade in progress. Solid amber Solid green On/Off No Ethernet link. - Page 8 Not powered on or in startup process. If the Ethernet connection for an AP320 device drops down to 10/100 Mbps, the amber indicator for LAN1 will flash while the green indicator for LAN1 remains in its original state. The amber indicator for LAN1 may continue to flash even if the Ethernet connection switches back to 10/1000 Mbps mode.
-
Page 9: Mounting Instructions
Hardware Specifications Mounting Instructions Your package includes the AP320 device, and wall-mount and T-rail ceiling-mount accessories. Hardware Guide... -
Page 10: Wall Mounting
Hardware Specifications Wall Mounting To mount an AP320 device to a wall: 1. Affix the mounting screws to the wall. 2. Mount the AP device on the screws. The MAC address and serial number of your AP device are printed on a label on the back of the device. -
Page 11: Ceiling Mounting
Hardware Specifications Ceiling Mounting Use the supplied mounting bracket to install the AP320 on the ceiling with a T-rail. To mount the device: 1. Attach the mounting bracket to the device. 2. Slide the device on to the T-rail affixed to the ceiling. -
Page 12: Optional Mounting Accessories
Hardware Specifications Optional Mounting Accessories Optional mounting accessories for walls or ceilings without a T-rail are also available from WatchGuard. (Part #: WG8019) WatchGuard AP320... - Page 13 Hardware Specifications Connect the AP Device You can power the WatchGuard AP320 with an 802.3af PoE of nominal input voltage 48v DC. You can also power the device with an optional AC power adapter. To power on and connect the AP320 to the network with PoE: 1.
- Page 14 Hardware Specifications AC Power Adapter (Optional) An optional AC power adapter supplies 12V DC power to the WatchGuard AP and includes US, EU, UK, and AU region-specific adapter plugs. AC Power Adapter Specifications AC Power Adaptor WatchGuard Part # WG8016...
- Page 15 Hardware Specifications Ethernet Power Injector (Optional) You can also power the WatchGuard AP device with an optional Ethernet Power Injector. This PoE device allows you to power the WatchGuard AP through an existing ethernet connection. With this feature, you do not have to position your WatchGuard AP device near a power outlet.
- Page 16 Hardware Specifications Ethernet Power Injector Specifications Ethernet Power Injector WatchGuard Part # WG8568 Specification IEEE 802.3af AC Input Voltage Rating 100 to 240VAC Output Voltage Output Power 15.4W PoE Power Class Ethernet Interfaces In: RJ-45 for 10/100/1000 Mbps Out: RJ-45 for 10/100/1000 Mbps and 56V DC Voltage on pins 4-5 (+) and 7-8 (-).
-
Page 17: Safety Notices
When removing or installing an appliance, follow the general installation safety instructions. Disclaimer WatchGuard shall not be held liable if the end user alters, modify, or repairs any WatchGuard hardware appliance. HINWEISE ZUR SICHERHEIT Alle WatchGuard Produkte werden entwickelt und getestet, um strenge Sicherheitsanforderungen zu erfüllen. - Page 18 Hardware Specifications AVISO DE SEGURIDAD Todos los productos WatchGuard están diseñados y probados para satisfacer estrictos requisitos de seguridad. Estos requisitos incluyen la homologación de productos de seguridad y otras normas de cumplimiento global. Por favor, lea atentamente las siguientes instrucciones antes de utilizar el producto, y se refieren a ellos como sea necesario para garantizar el funcionamiento seguro y continuo de su producto.
-
Page 19: Legal And Regulatory Information
2. REMEDIES. If any Product does not comply with the WatchGuard warranties set forth in Section 1 above, WatchGuard will, following the receipt of the product you claim is defective and at its option, either (a) repair the Product, or (b) replace the Product with a like or similar product; provided, that you will be responsible for returning the Product and for all costs of shipping and handling. - Page 20 UNDER THE WARRANTY DO NOT VIOLATE ANY THIRD-PARTY AGREEMENT TO WHICH THE ENTITY IS A PARTY. No change or modification of the Warranty will be valid unless it is in writing and is signed by WatchGuard. All WatchGuard products are designed and tested to meet strict safety requirements. These requirements include product safety approvals and other global compliance standards.
-
Page 21: Declaration Of Conformity
Legal and Regulatory Information Declaration of Conformity Hardware Guide... -
Page 22: Fcc Certification
Übereinstimmung mit der Bedienungsanleitung, kann es Störungen im Funkverkehr verursachen. Der Betrieb dieses Gerätes in einem Wohngebiet wird wahrscheinlich schädliche Interferenzen in dem Fall muss der Benutzer die Störungen auf seine / ihre eigene Kosten zu beheben. WatchGuard AP320... -
Page 23: Industry Canada Certification
Legal and Regulatory Information CE Notice The CE symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). This equipment should be installed and operated with minimum distance 24cm between the radiator & your body. -
Page 24: R&Tte Compliance Statement
Broadband Radio Access Networks (BRAN); 5GHz high performance RLAN; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive -EN 301 489-1 V1.9.2:2011 Electromagnetic compatibility and Radio spectrum Matters (ERM); Electro Magnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements WatchGuard AP320... - Page 25 Hereby, WatchGuard Technologies, declares that this AP320 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente WatchGuard Technologies declara que el AP320 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la [Spanish] Directiva 1999/5/CE.
-
Page 26: Rohs Statement
WEEE statutes, and that the recovery of our product per the specific EU country legislative requirements is seamless for our product’s end users. If you have a WatchGuard product that is at its end of life and needs to be disposed of, please contact WatchGuard Customer Care Department at: U.S. Customers: 877.232.3531 International Customers: +1.206.613.0456... - Page 27 In accordance with the regulations, the products of WatchGuard do not need to be registered for the following reasons: WatchGuard does not import more than 1 metric ton per year of a substance as defined by REACH. WatchGuard products are non-chemical products that are not designed to release any substance under normal and reasonably predictable application.
-
Page 28: Gnu General Public License ("Gpl")
General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or WatchGuard AP320... - Page 29 Legal and Regulatory Information a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”. Activities other than copying, distribution and modification are not covered by this License; they are outside its scope.
- Page 30 This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. WatchGuard AP320...
- Page 31 Legal and Regulatory Information 8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded.
- Page 32 Legal and Regulatory Information WatchGuard AP320...
