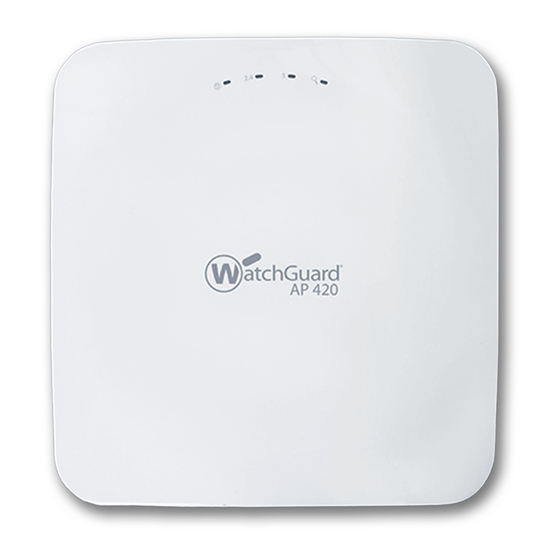

Watchguard AP420 Hardware Manual

Hide thumbs Also See for AP420:
Table of Contents

Advertisement

Quick Links

WatchGuard
AP420
Hardware
Guide
AP420

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP420 and is the answer not in the manual?

Questions and answers

Related Manuals for Watchguard AP420

Summary of Contents for Watchguard AP420

  • Page 1 WatchGuard AP420 Hardware Guide AP420...
  • Page 2 Copyright© 2017 WatchGuard Technologies, Inc. All rights reserved. WatchGuard, the WatchGuard logo, LiveSecurity, and any other mark listed as a trademark in the “Terms of Use” portion of the WatchGuard Web site that is used herein are either registered trademarks or trademarks of WatchGuard Technologies, Inc.

  • Page 3: Hardware Specifications

    Firebox. The WatchGuard Firebox requires Fireware OS v11.12.4 or higher. Note: The third-radio is not available when managed locally with a Gateway Wireless Controller. For more information about how to set up and manage your WatchGuard AP, you can find documentation online at: http://www.watchguard.com/wgrd-help/documentation/overview Package Contents ...

  • Page 4: About Your Hardware

    Power Interface Power over Ethernet: 802.3at (PoE+) / 802.3af (PoE) DC jack (6.3mm connector): 12V DC input, 2.0A Power Max: 19 W Consumption Min: 11W Average: 16W Dimensions 220mm × 220mm × 57mm Weight 2.86 lb. (1.3 kg) WatchGuard AP420...

  • Page 5: Environmental Requirements

    Hardware Specifications Environmental Requirements To safely install your WatchGuard AP, we recommend that you:  Install the device indoors.  Make sure the device has adequate clearance for air flow and cooling.  Connect it to a surge-protected power supply to prevent damage from sudden power changes...

  • Page 6: Hardware Description

    This interface can be used for link aggregration or as a wired extension for a wireless SSID that has NAT enabled. For more information, see the WatchGuard Wi-Fi Cloud Help. The second Ethernet port is not supported when the AP420 is managed locally by a Gateway Wireless Controller on a Firebox.
  • Page 7 The USB port is currently not in use. Reset Button Resets the WatchGuard AP to factory-default settings. You must use a paper clip or other small object to press the reset button through the small hole on top of the device.

  • Page 8: Device Indicators

    Hardware Specifications Device Indicators The front panel of the AP420 has four LEDs that indicate the status of the AP. WatchGuard AP420...
  • Page 9 Hardware Specifications The AP420 always works in AP combo mode where the first two radios work in AP mode and the third radio works in WIPS (Wireless Intrusion Prevention System) sensor mode. The fourth LED indicates that the WIPS sensor on the third radio is active.

  • Page 10: Mounting Instructions

    Hardware Specifications Mounting Instructions Your package includes the AP420 device, and a mounting bracket. The MAC address and serial number of your AP are printed on a label on the back of the device. Make sure you record this information before you mount the AP.

  • Page 11: T-Rail Bracket

    1. Attach the bracket to the T-rail and rotate the bracket so that it snaps on the T-rail. The bracket must be parallel to the T-rail. 2. To mount the AP420 on the bracket, place the first mounting post on the rear-side of the device on to the lower notch of the bracket.
  • Page 12 Hardware Specifications 4. Make sure that all the mounting posts on the rear-side of the device are secured into the respective notches on the bracket. WatchGuard AP420...
  • Page 13 1. To attach the bracket to the T-rail, rotate the bracket so it is parallel to the T-rail, and snap the bracket on the T-rail. 2. To mount the AP420 on the bracket, put the first mounting post on the back of the device over the lower bracket notch.
  • Page 14 Hardware Specifications Flat Surface Bracket (Optional) An optional surface mount bracket for walls or ceilings is available from WatchGuard (Part #: WG8020). 1. Attach the bracket to the wall with screws (not included). 2. Pull the side latch to unlock the mount bracket.

  • Page 15: Connect The Ap

    2. Connect the other end of the network interface cable to an Ethernet network jack. 3. Plug the power adapter cable into the 12V DC power receptacle on the back of the AP420. 4. Plug the power adapter into an 100V-240V 50/60 Hz AC power source.
  • Page 16 You can power the WatchGuard AP with an optional Ethernet Power Injector. This PoE+ capable device allows you to power the WatchGuard AP through an existing Ethernet connection. With this feature, you do not have to position your WatchGuard AP near a power outlet.
  • Page 17 Hardware Specifications Ethernet Power Injector Specifications Ethernet Power Injector WatchGuard Part # 802.3at PoE+ Injector with AC cord (US/FCC) (WG8599) 802.3at PoE+ Injector with AC cord (CE) (WG8600) 802.3at PoE+ Injector with AC cord (UK) (WG8601) 802.3at PoE+ Injector with AC cord (AUS) (WG8602) Specification IEEE 802.3at/af...
  • Page 18 Hardware Specifications AC Power Adapter (Optional) An optional AC power adapter supplies 12V DC power to the WatchGuard AP420 and includes region-specific adapter plugs. AC Power Adapter Specifications AC Power Adaptor WatchGuard Part # WG8025 AC Input Voltage Rating 100-240V, 50-60Hz Output Voltage DC12V, 2.0A...

  • Page 19: Safety Notices

     When removing or installing an appliance, follow the general installation safety instructions. Disclaimer WatchGuard shall not be held liable if the end user alters, modify, or repairs any WatchGuard hardware appliance. HINWEISE ZUR SICHERHEIT Alle WatchGuard Produkte werden entwickelt und getestet, um strenge Sicherheitsanforderungen zu erfüllen.
  • Page 20 Hardware Specifications AVISO DE SEGURIDAD Todos los productos WatchGuard están diseñados y probados para satisfacer estrictos requisitos de seguridad. Estos requisitos incluyen la homologación de productos de seguridad y otras normas de cumplimiento global. Por favor, lea atentamente las siguientes instrucciones antes de utilizar el producto, y se refieren a ellos como sea necesario para garantizar el funcionamiento seguro y continuo de su producto.

  • Page 21: Legal And Regulatory Information

    2. REMEDIES. If any Product does not comply with the WatchGuard warranties set forth in Section 1 above, WatchGuard will, following the receipt of the product you claim is defective and at its option, either (a) repair the Product, or (b) replace the Product with a like or similar product; provided, that you will be responsible for returning the Product and for all costs of shipping and handling.
  • Page 22 UNDER THE WARRANTY DO NOT VIOLATE ANY THIRD-PARTY AGREEMENT TO WHICH THE ENTITY IS A PARTY. No change or modification of the Warranty will be valid unless it is in writing and is signed by WatchGuard. All WatchGuard products are designed and tested to meet strict safety requirements. These requirements include product safety approvals and other global compliance standards.

  • Page 23: Declaration Of Conformity

    Legal and Regulatory Information Declaration of Conformity Declaration of Conformity WatchGuard Technologies Inc. hereby declares that the product(s) listed below conform to the European Union directives and standards identified in this declaration. Product (s): Wireless Access Point, WatchGuard Model AP420 EU Directive(s): Radio &...

  • Page 24: Fcc Certification

    Übereinstimmung mit der Bedienungsanleitung, kann es Störungen im Funkverkehr verursachen. Der Betrieb dieses Gerätes in einem Wohngebiet wird wahrscheinlich schädliche Interferenzen in dem Fall muss der Benutzer die Störungen auf seine / ihre eigene Kosten zu beheben. WatchGuard AP420...

  • Page 25: Industry Canada Certification

    Legal and Regulatory Information CE Notice The CE symbol on your WatchGuard Technologies equipment indicates that it is in compliance with the Electromagnetic Compatibility (EMC) directive and the Low Voltage Directive (LVD) of the European Union (EU). This equipment should be installed and operated with minimum distance 50cm between the radiator & your body.
  • Page 26 Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 50cm de distance entre la source de rayonnement et votre corps. WatchGuard AP420...

  • Page 27: Brazil Anatel

    Legal and Regulatory Information Brazil ANATEL Este equipamento opera em caráter secundário, isto é, não tem direito à proteção contra interferência prejudicial, mesmo de estações do mesmo tipo e não pode causar interferência a sistemas operando em caráter primário. Mexico NOM La operación de este equipo está...
  • Page 28 This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 - 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. WatchGuard AP420...
  • Page 29 Hereby, WatchGuard Technologies, declares that this AP420 is in compliance with the English essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente WatchGuard Technologies declara que el AP420 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la [Spanish] Directiva 1999/5/CE.

  • Page 30: Rohs Statement

    WEEE statutes, and that the recovery of our product per the specific EU country legislative requirements is seamless for our product’s end users. If you have a WatchGuard product that is at its end of life and needs to be disposed of, please contact WatchGuard Customer Care Department at: U.S. Customers: 877.232.3531 International Customers: +1.206.613.0456...

  • Page 31: Taiwan Class B Notice

    In accordance with the regulations, the products of WatchGuard do not need to be registered for the following reasons:  WatchGuard does not import more than 1 metric ton per year of a substance as defined by REACH.  WatchGuard products are non-chemical products that are not designed to release any substance under normal and reasonably predictable application.

  • Page 32: Japan Vcci Notice (Class B Ite)

    Legal and Regulatory Information Japan VCCI Notice (Class B ITE) WatchGuard AP420...

  • Page 33: Gnu General Public License ("Gpl")

    Legal and Regulatory Information GNU General Public License (GPL) Version 2, June 1991 Copyright © 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 34 Sections 1 and 2 above on a medium customarily used for software interchange; or, WatchGuard AP420...
  • Page 35 Legal and Regulatory Information  Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it.
  • Page 36 THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. WatchGuard AP420...
