Piper CHEROKEE TURBO ARROW III 1976 Pilot Operating Handbook page 91

PIPER AIRCRAFT CORPORATION
SECTION 5
PA-28R-201T, CHEROKEE TURBO ARROW III
PERFORMANCE
P A-2 8R-201 T
AF TARE© ERT©Ð¾AUCE
ASSOCIATED CONDlTIONS
-
POWER 2575 RPM& 41 INCHES HgMANIFOLD PRESSURE BEFORE B RAKE R ELEASE
PAVED
L EVEL DRY RUNWAY
I
I |
T. O. SPEED
-
KIAS
wT
LBS LIFTOFF AT50 FT.
2900
77 77
---
2600 74
74
- -7----- -- ----
2300 72
72
--R
5000
2000
70 70
-
- -
-- -
-
-
4000
3000
2000
1000
-5) -25
0
25
50 75 100
°¶
2930
2600 2300 2000 O
5 10
15
-40
-20
0 20
40
°C
WEIGHT
-
LBS
WIND
-
KNOTS
OUTSIDE AIRTEMP.
Example:
Pressure altitude:
4990 ft.
OAT:
20°C
Gross weight: 2740 lbs.
Surface
wind:
6
knots
(headwind)
Takeoff distance: 3750 ft.

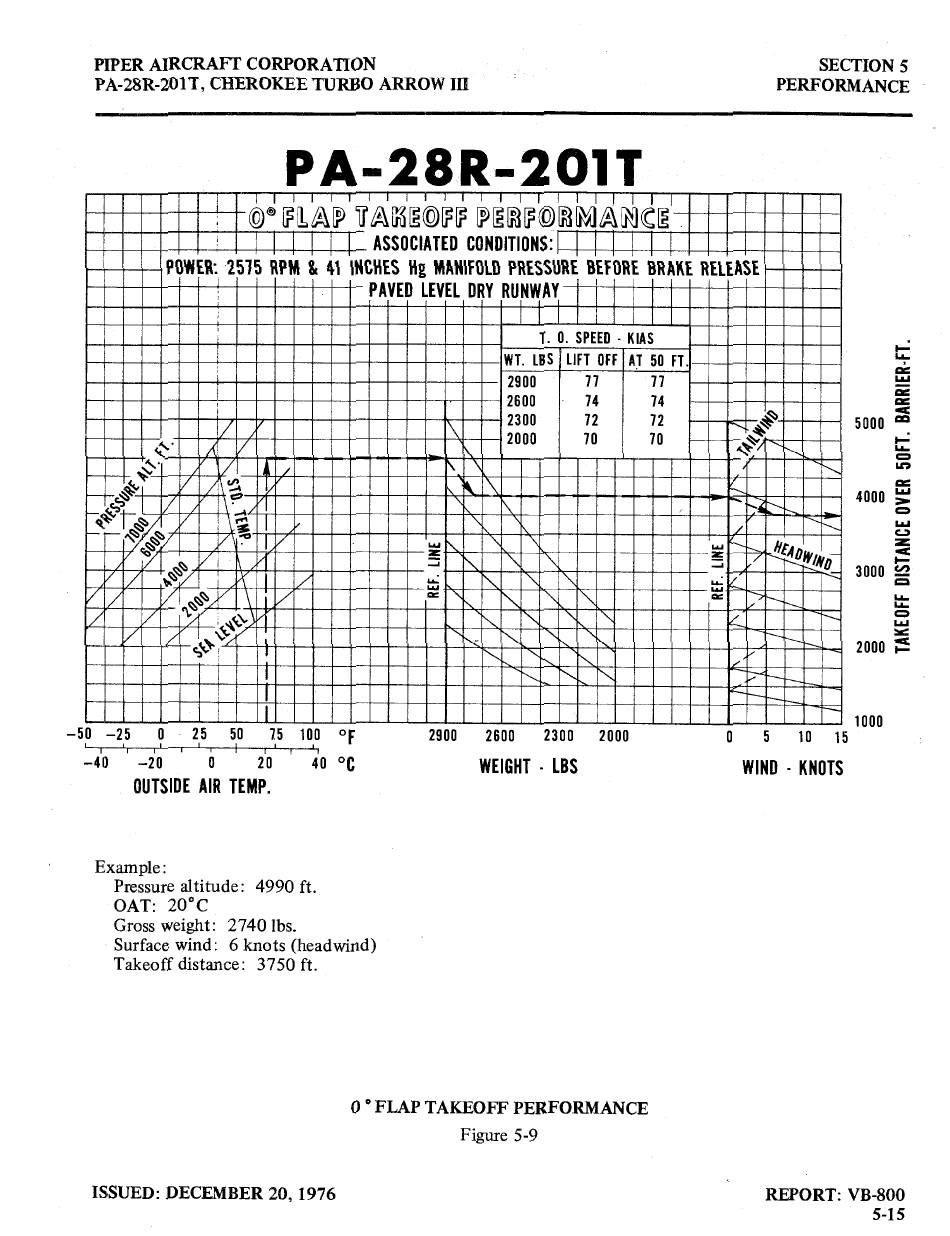

0 °FLAP TAKEOFF PERFORMANCE
Figure 5-9
ISSUED: DECEMBER
20, 1976
REPORT: VB-800
5-15
