SECTION
7
PIPER
AIRCRAFT CORPORATION
DESCRIPTION
AND
OPERATION
PA-28R-201T,
CHEROKEE
TURBO ARROW
III
15
20
-
O
ap
25
HU

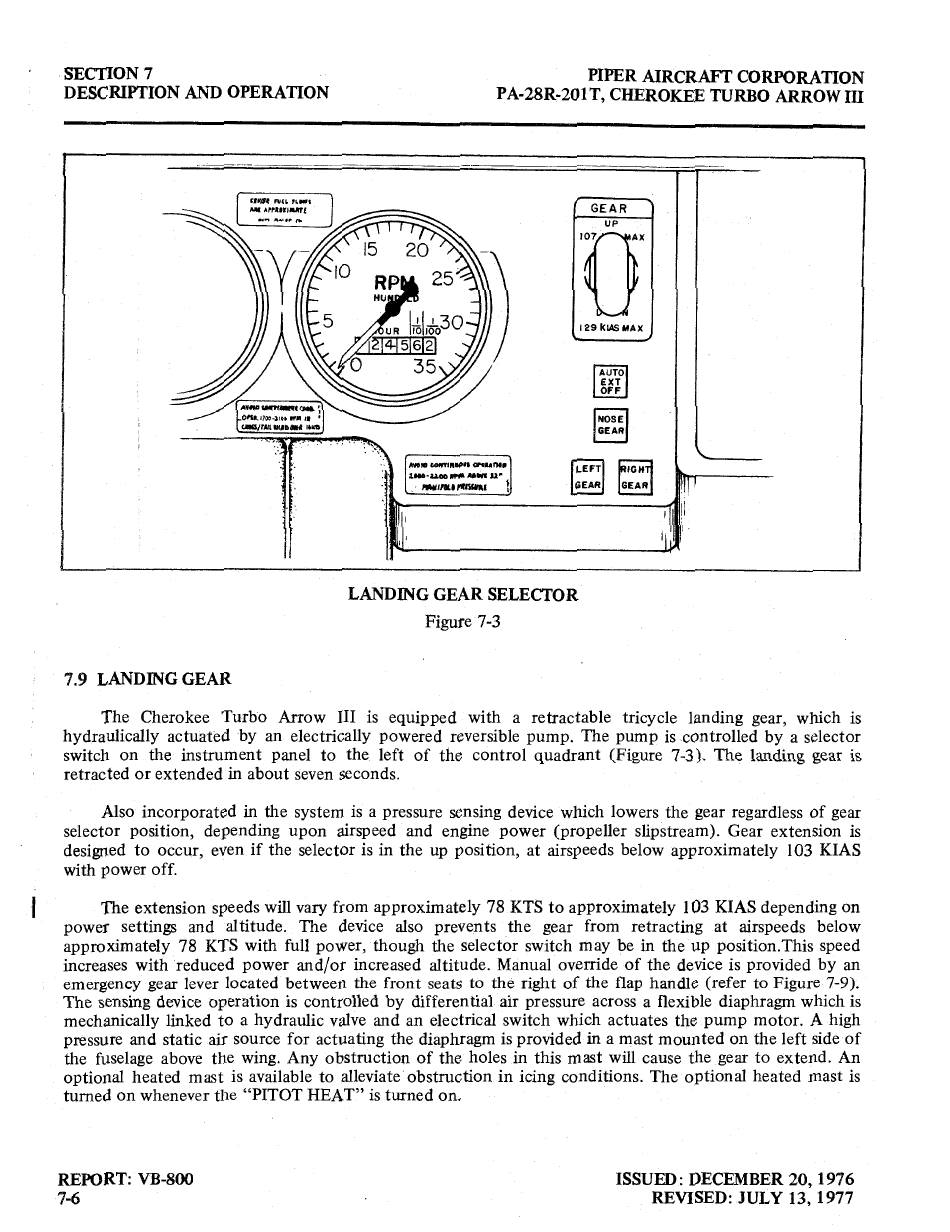

LANDING GEAR
SELECTOR
Figure
7-3
7.9 LANDING GEAR
The
Cherokee
Turbo
Arrow
III
is
equipped
with a retractable
tricycle
landing gear, which
is
hydraulically
actuated
by an electrically
powered
reversible pump. The pump
is
controlled
by a selector
switch on
the
instrument
panel
to
the
left of
the
control
quadrant
(Figure
7-3).
The landing gear
is
retracted or extended
in
about seven seconds.
Also incorporated
in
the
system is a pressure sensing
device
which lowers
the
gear regardless of gear
selector
position,
depending
upon
airspeed
and engine power
(propeller
slipstream).
Gear
extension
is
designed
to
occur, even if
the
selector
is in
the
up position,
at airspeeds below approximately
103
KIAS
with power off.
The extension
speeds will vary from approximately
78
KTS
to
approximately
103 KIAS
depending
on
power
settings
and altitude.
The
device
also prevents
the
gear
from
retracting
at airspeeds
below
approximately
78 KTS
with full power,
though the
selector switch may
be
in
the
up position.This
speed
increases with
reduced power and/or increased altitude.
Manual
override of
the device
is provided by an
emergency
gear
lever located between
the
front
seats
to
the
right
of
the
flap handle
(refer
to
Figure
7-9).
The sensing device
operation
is controlled
by
differential
air pressure across a flexible
diaphragm
which is
mechanically
linked
to
a hydraulic valve and an electrical switch which actuates
the
pump motor.
A
high
pressure and static air
source
for actuating
the diaphragm
is provided in a mast mounted on
the
left side of
the
fuselage above
the
wing. Any obstruction
of
the
holes in
this
mast will cause
the
gear
to
extend. An
optional heated mast is available
to
alleviate obstruction
in icing conditions.
The optional heated mast is
turned
on
whenever the
"PITOT HEAT" is
turned
on.
REPORT:
VB-800
ISSUED: DECEMBER 20, 1976
7-6
REVISED:
JULY
13 1977
