Piper CHEROKEE TURBO ARROW III 1976 Pilot Operating Handbook page 103

PIPER AIRCRAFT CORPORATION
SECTION 5
PA-28R-201T, CHEROKEE TURBO ARROW III
PERFORMANCE
P A-28 R-201T
GEAR
UP.FLAPS
UP,72GAL USEABLE FUEL 2 900LBSGROSS WEIGHT
ENDURANCE INCLUDES
TIME TOCLIMB &
DESCEND
BEST ECONOMY MIXTURE
(
PEAK EGT
-
1650°
F
MAX. ALLOWABLE
]
4 IN.RISEVE @
55% PO E
---
NOR SERVE
65
5%
75%
75%
-50 -25
0 25 50 75
100
o
2
6 1
6
8
-40 -20
O 20 40
°C
ENDURANCE
-
HOURS
OUTSIDE AIRTEMP.
Example:
Cruise pressure altitude: 8500 ft.
Cruise OAT:
10°C
Power: 75%
Endurance: 5 hours with reserve,
5.75 hours no reserve

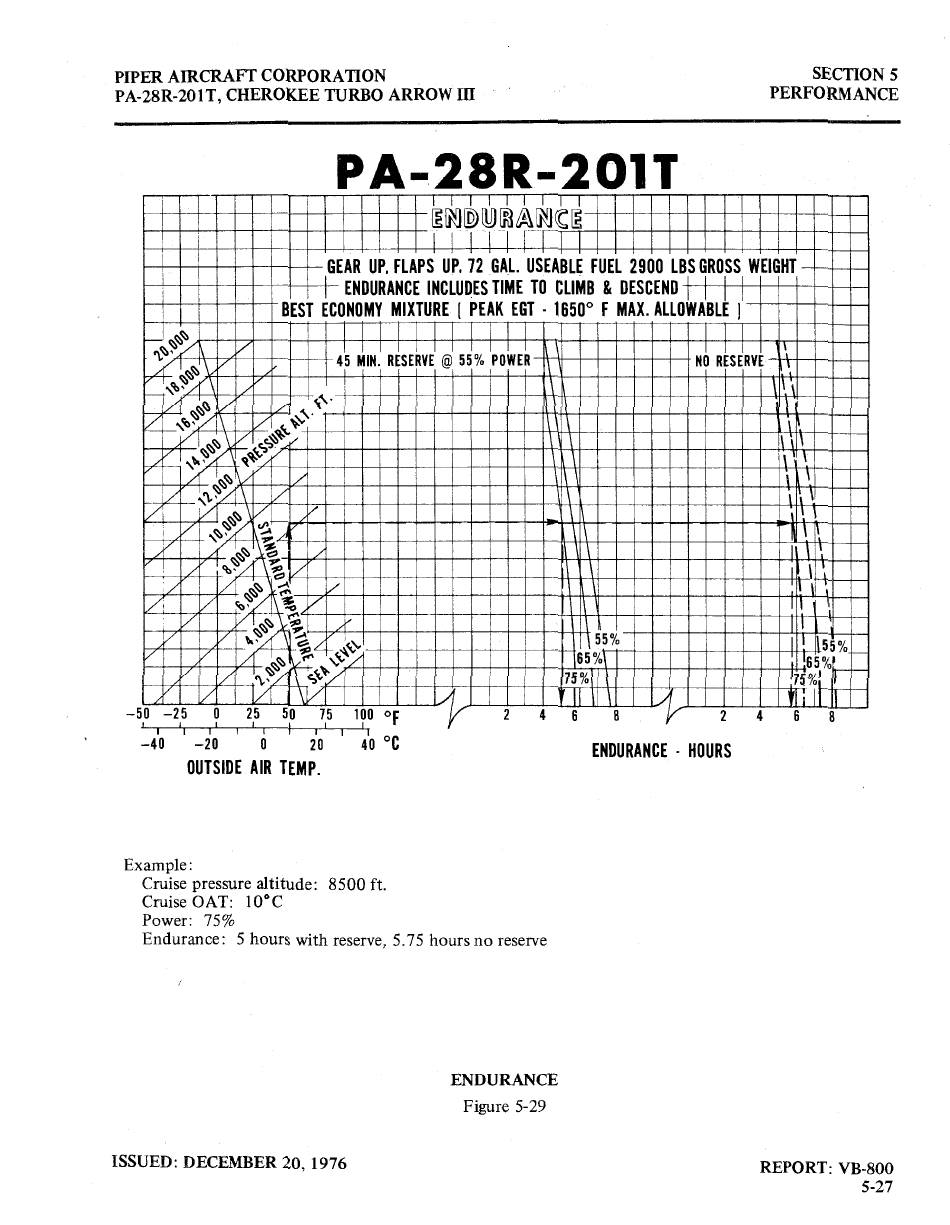

ENDURANCE
Figure
5-29
ISSUED: DECEMBER 20, 1976
REPORT: VB-800
5-27
