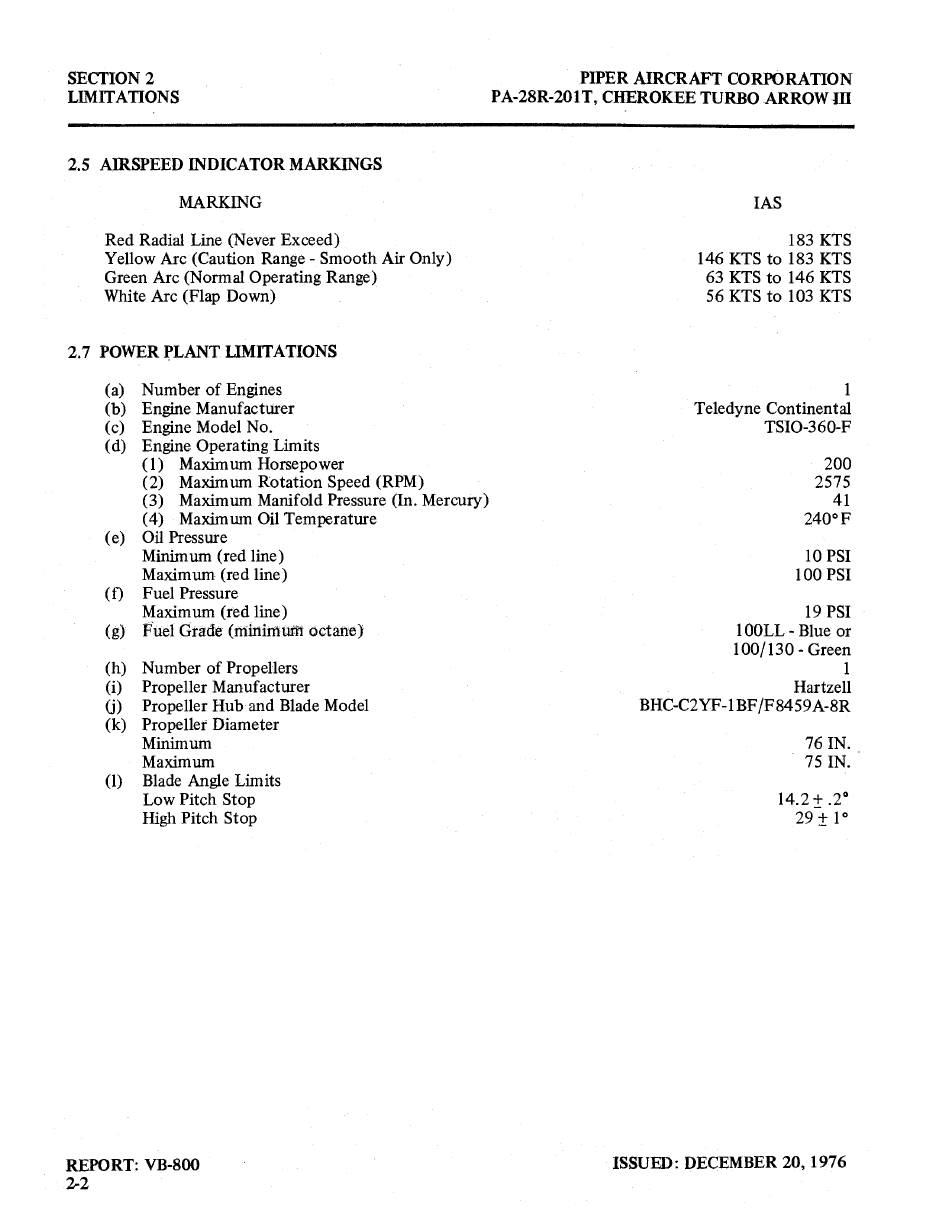

PIPER AIRCRAFT
CORPORATION
LIMITATIONS PA-28R-201T, CHEROKEE
TURBO ARROW III
2.5 AIRSPEED INDICATOR MARKINGS
MARKING
IAS
Red Radial Line (Never Exceed) 183 KTS
Yellow Arc
(Caution Range
-
Smooth Air Only)
146 KTS
to
183 KTS
Green Arc (Normal Operating Range) 63 KTS
to
146 KTS
White Arc
(Flap Down)
56 KTS
to
103 KTS
2.7 POWER PLANT LIMITATIONS
(a)
Number of Engines 1
(b)
Engine Manufacturer Teledyne Continental
(c)
Engine Model No. TSIO-360-F
(d)
Engine Operating Limits
(1)
Maximum Horsepower 200
(2)
Maximum Rotation Speed (RPM)
2575
(3)
Maximum Manifold
Pressure
(In. Mercury)
41
(4)
Maximum Oil Temperature 240°F
(e)
Oil Pressure
Minimum
(red
line) 10 PSI
Maximum (red line) 100 PSI
(f)
Fuel
Pressure
Maximum
(red
line) 19 PSI
(g)
Fuel
Grade
(niittinium
octane)
100LL
-
Blue or
100/130
-
Green
(h)
Number of Propellers
1
(i)
Propeller Manufacturer Hartzell
(j)
Propeller Hub
and Blade Model
BHC-C2YF-lBF/F8459A-8R
(k)
Propeller Diameter
Minimum 76 IN.
Maximum 75 IN.
(1)
Blade Angle Limits
Low Pitch Stop 14.2
±
.2°
High Pitch Stop 29 ± 1°
REPORT:
VB-800
ISSUED: DECEMBER 20,
1976
2-2
