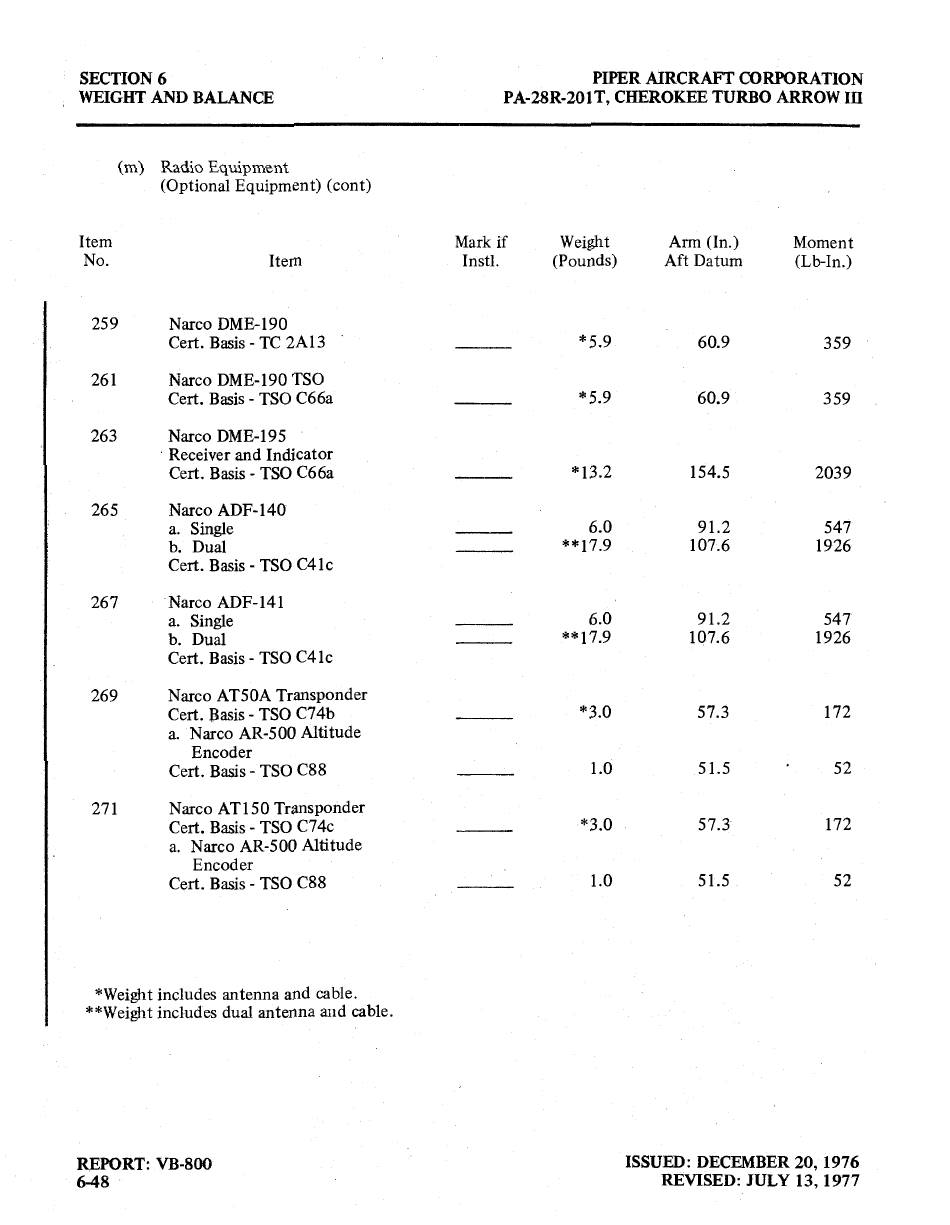

Piper CHEROKEE TURBO ARROW III 1976 Pilot Operating Handbook page 158

SECTION 6
PIPER AIRCRAFT CORPORATION
WEIGHT AND BALANCE PA-28R-201T, CHEROKEE TURBO ARROW
III
(m)
Radio Equipment
(Optional Equipment) (cont)
Item Mark if Weight Arm (In.)
Moment
No. Item Instl. (Pounds) Aft Datum (Lb-In.)
259 Narco DME-190
Cert. Basis
-
TC 2A13
*5.9
60.9
359
261 Narco DME-190 TSO
Cert.
Basis
-
TSO C66a
*5.9
60.9
359
263 Narco DME-195
Receiver
and Indicator
Cert. Basis
-
TSO C66a
*13.2
154.5
2039
265 Narco ADF-140
a.
Single 6.0 91.2
547
b. Dual
**17.9
107.6
1926
Cert. Basis
-
TSO C41c
267
Narco ADF-141
a.
Single
6.0 91.2 547
b. Dual
**17.9
107.6 1926
Cert.
Basis
-
TSO C41c
269
Narco ATSOA Transponder
Cert. Basis
-
TSO C74b
*3.0
57.3
172
a.
Narco
AR-500 Altitude
Encoder
Cert. Basis
-
TSO C88
1.0
51.5 52
271
Narco ATl50 Transponder
Cert. Basis
-
TSO C74c
*3.0
57.3 172
a.
Narco
AR-500 Altitude
Encoder
Cert. Basis
-
TSO C88
1.0
51.5 52
*Weight includes
antenna and cable.
**Weight includes dual
antenna and cable.
REPORT:
VB-800
ISSUED:
DECEMBER
20,
1976
6-48
REVISED: JULY 13, 1977
