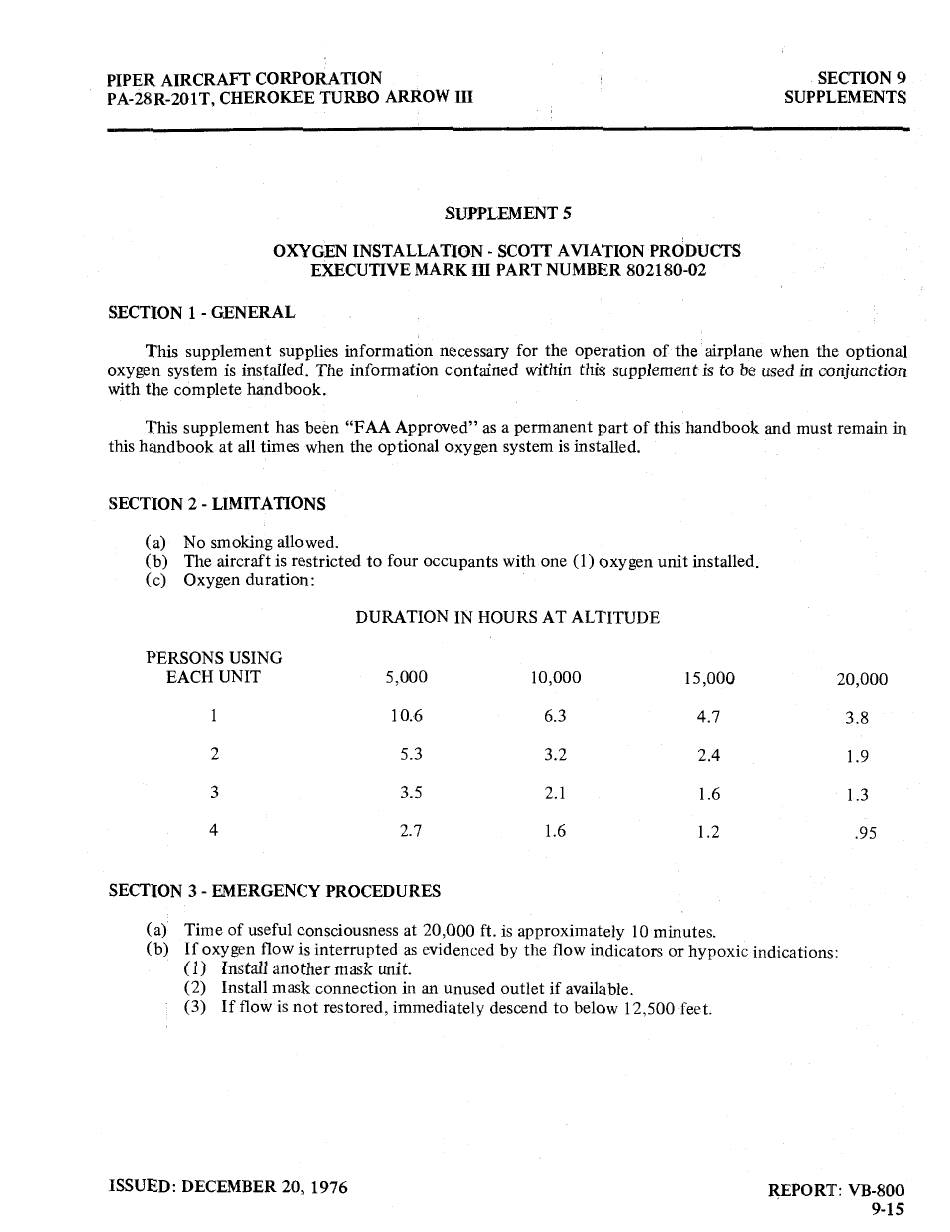

PIPER
AIRCRAFT CORPORATION SECTION 9
PA-28R-201T,
CHEROKEE TURBO ARROW
III SUPPLEMENTS
SUPPLEMENT 5
OXYGEN
INSTALLATION
-
SCOTT AVIATION PRODUCTS
EXECUTIVE MARK III PART NUMBER 802180-02
SECTION 1
-
GENERAL
This
supplement supplies information necessary for the operation of the airplane when
the optional
oxygen
system is
installed.
The
information contained within
this
supplement
is
to
be
used in conjunction
with the
complete handbook.
This supplement has beën "FAA Approved"
as a permanent
part of this handbook and must remain
in
this handbook at all
times
when the optional oxygen system is installed.
SECTION 2
-
LIMITATIONS
(a)
No smoking allowed.
(b)
The aircraft is restricted
to
four occupants with one
(1) oxygen unit installed.
(c)
Oxygen duration:
DURATION IN HOURS AT ALTITUDE
PERSONS USING
EACH UNIT 5,000
10,000 15,000
20,000
1 10.6 6.3
4.7
3.8
2 5.3
3.2
2.4
1.9
3
3.5 2.1
1.6
1.3
4
2.7 1.6
1.2
.95
SECTION 3
-
EMERGENCY PROCEDURES
(a) Time of useful consciousness at 20,000 ft. is approximately
10 minutes.
(b) If oxygen flow is interrupted as evidenced
by the flow indicators or hypoxic indications:
(1)
Install another
mask unit.
(2)
Install mask connection
in an unused outlet
if
available.
(3)
If flow is not restored, immediately
descend to below 12,500 feet.
ISSUED: DECEMBER 20, 1976
REPORT: VB-800
9-15
