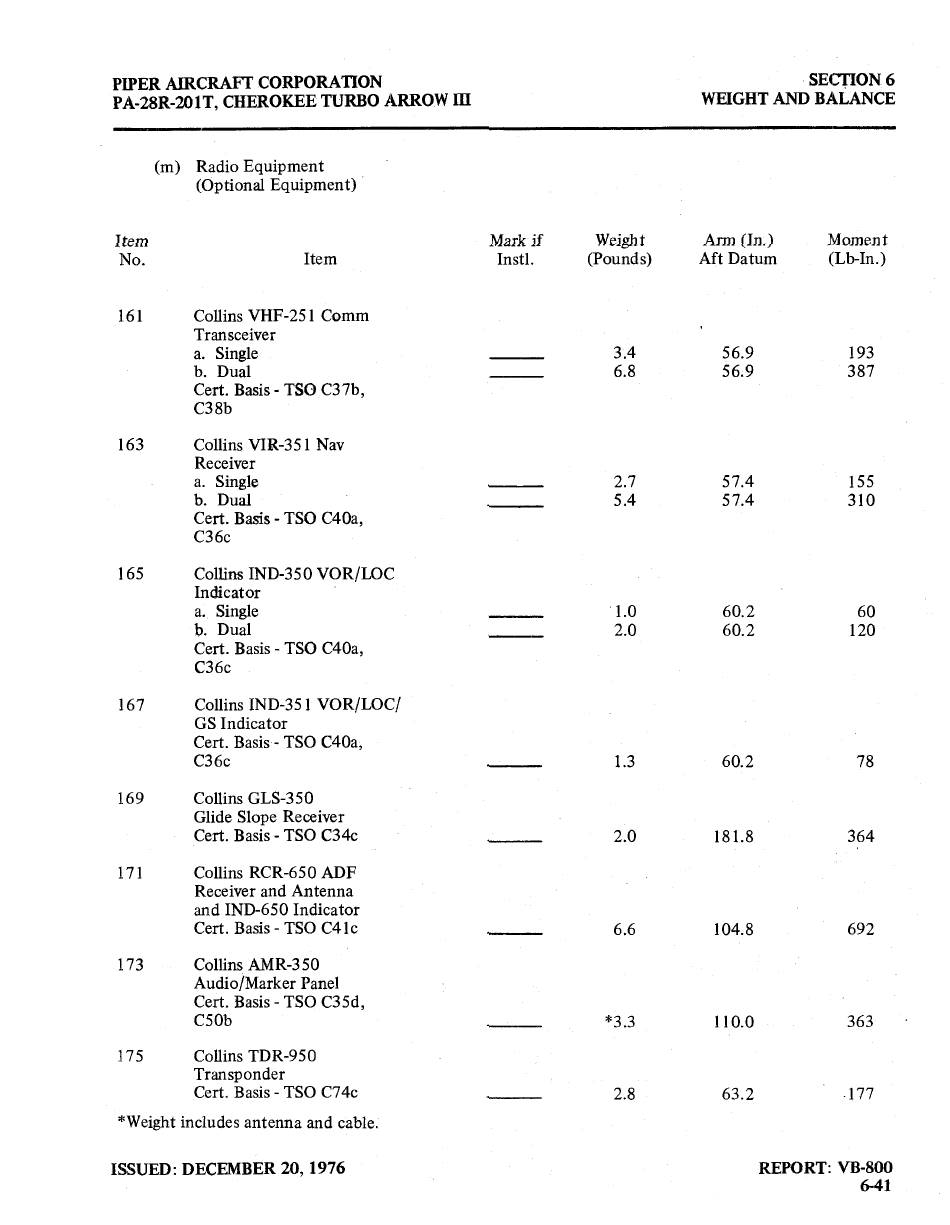

Piper CHEROKEE TURBO ARROW III 1976 Pilot Operating Handbook page 151

PIPER AIRCRAFT CORPORATION
SECTION 6
PA-28R-201T, CHEROKEE TURBO ARROW III
WEIGHT
AND BALANCE
(m) Radio Equipment
(Optional Equipment)
Item
Mark if
Weight
Arm (In.)
Moment
No. Item
Instl. (Pounds) Aft Datum (Lb-In.)
161 Collins VHF-251 Comm
Transceiver
a.
Single
3.4
56.9 193
b. Dual 6.8 56.9 387
Cert. Basis
-
TSO C37b,
C38b
163 Collins VIR-351 Nav
Receiver
a.
Single 2.7 57.4 155
b.
Dual
5.4 57.4 310
Cert. Basis
-
TSO C40a,
C36c
165
Collins
IND-350
VOR/LOC
Indicator
a.
Single 1.0 60.2 60
b. Dual 2.0
60.2 120
Cert. Basis
-
TSO C40a,
C36c
167 Collins IND-351
VOR/LOC/
GS
Indicator
Cert. Basis
-
TSO C40a,
C36c
1.3 60.2 78
169 Collins GLS-350
Glide Slope Receiver
Cert. Basis
-
TSO
C34c 2.0
18 1.8 364
171 Collins
RCR-650
ADF
Receiver and Antenna
and IND-650 Indicator
Cert. Basis
-
TSO C41c
6.6 104.8 692
173
Collins
AMR-350
Audio/Marker Panel
Cert. Basis
-
TSO C35d,
C50b *3.3
110.0 363
175 Collins TDR-950
Transponder
Cert. Basis
-
TSO C74c
2.8 63.2 -177
*Weight
includes antenna and cable.
ISSUED: DECEMBER 20, 1976 REPORT: VB-800
6-41
