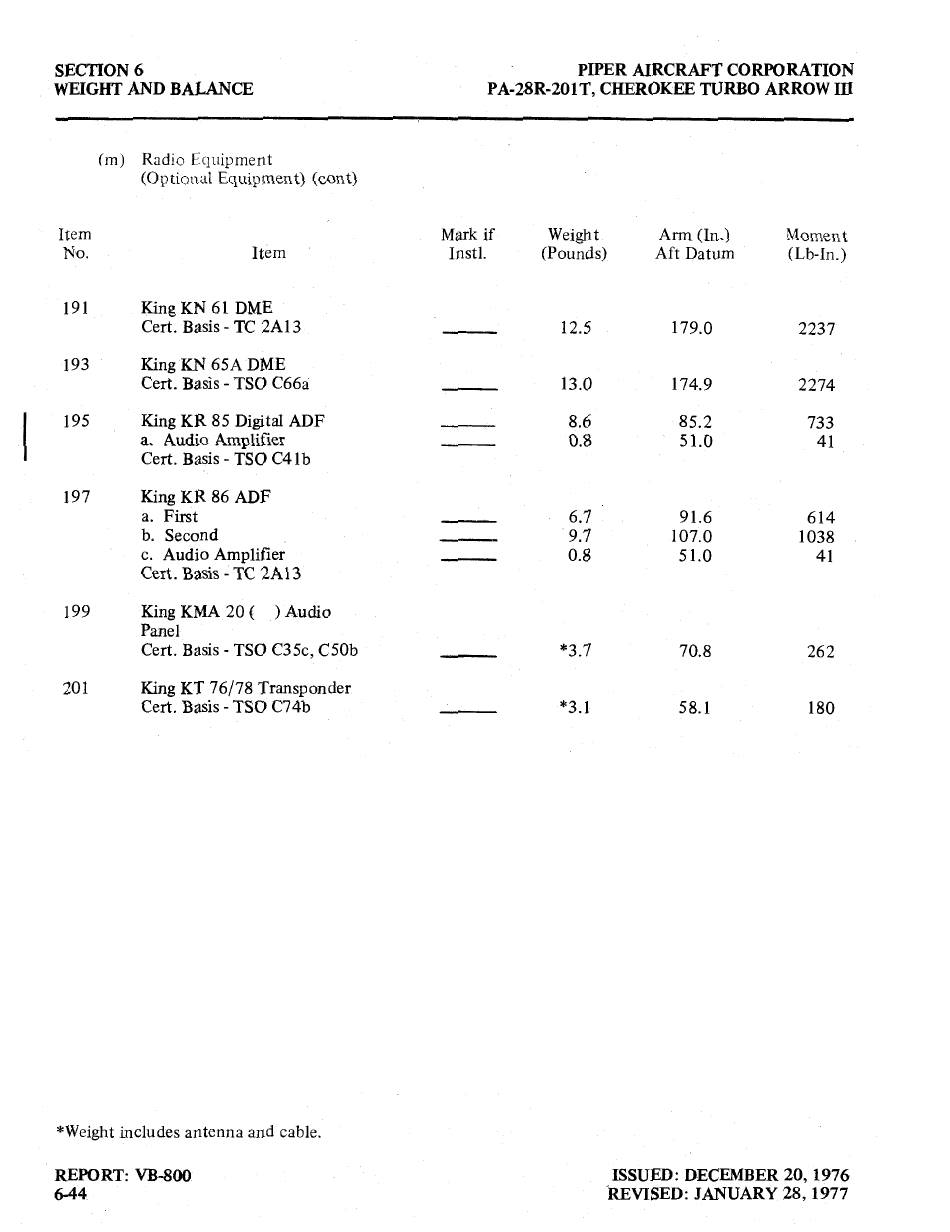

SECTION
6
PIPER AIRCRAFT CORPORATION
WEIGHT AND BALANCE PA-28R-201T, CHEROKEE TURBO ARROW IH
(m) Radio Equipment
(Optional Equipment) (cont)
Item Mark if Weight Arm (In.) Moment
No. Item
Instl.
(Pounds)
Aft Datum (Lb-In.)
191 King KN 61 DME
Cert. Basis
-
TC 2A13 12.5
179.0
2237
193 King KN 65A DME
Cert. Basis
-
TSO C66a 13.0
174.9 2274
195 King KR 85 Digital ADF 8.6
85.2
733
a. Audio Amplifier
0.8 51.0 41
Cert. Basis
-
TSO C4 lb
197
King KR
86 ADF
a.
First 6.7
91.6
614
b. Second
9.7 107.0
1038
c.
Audio Amplifier
0.8
5
1.0
41
Cert. Basis
-
TC 2Al3
199
King KMA 20 ( ) Audio
Panel
Cert. Basis
-
TSO C35c, C50b
*3.7
70.8
262
201 King KT
76/78
Transponder
Cert. Basis
-
TSO C74b
*3.1
58.1 180
*Weight includes antenna and cable.
REPORT: VB-800
ISSUED: DECEMBER
20,
1976
6-44
REVISED: JANUARY
28,
1977
