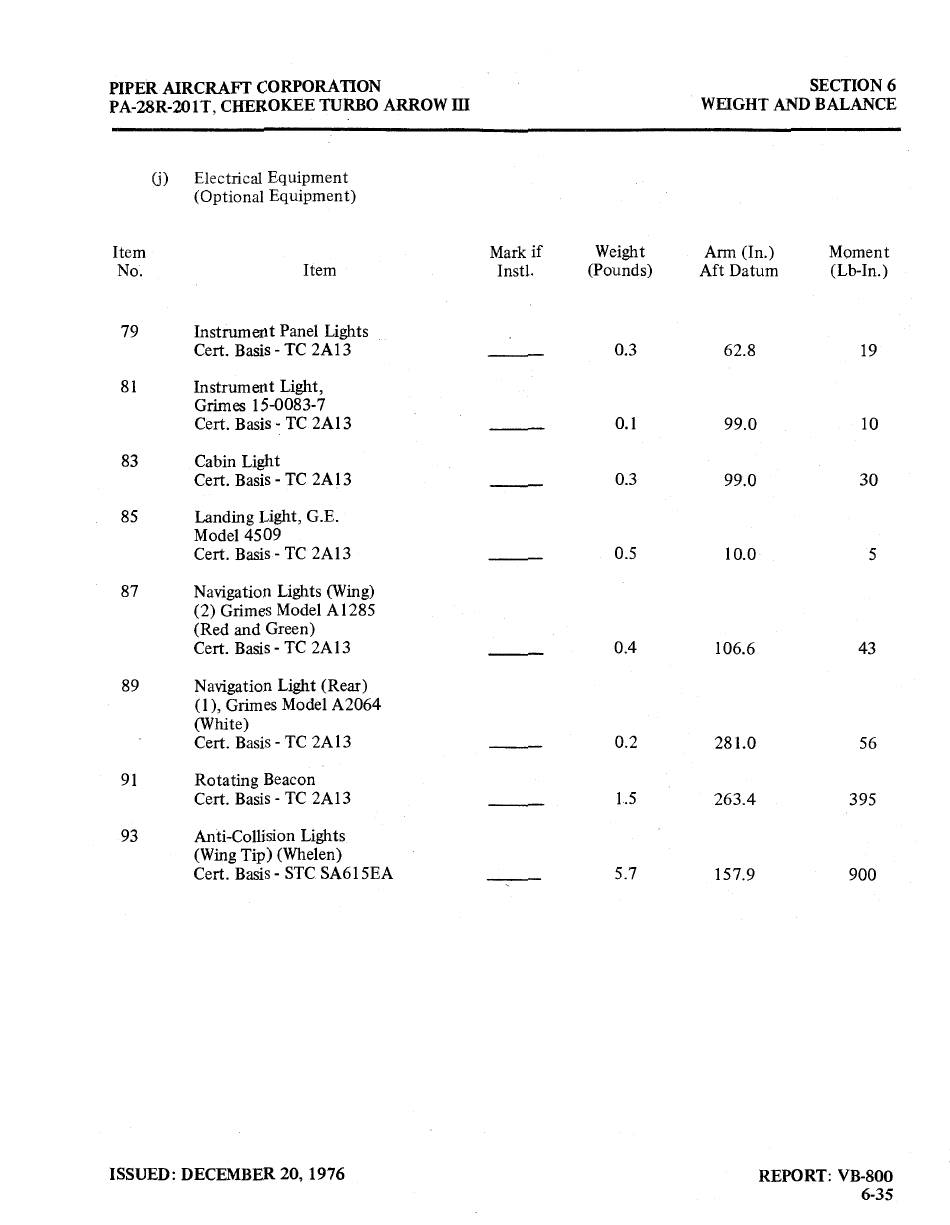

PIPER AIRCRAFT
CORPORATION
SECTION 6
PA-28R-201T,
CHEROKEE TURBO ARROW III
WEIGHT AND BALANCE
(j)
Electrical Equipment
(Optional Equipment)
Item
Mark if Weight Arm (In.)
Moment
No. Item Instl.
(Pounds)
Aft Datum (Lb-In.)
79 Instrument
Panel Lights
Cert.
Basis
-
TC 2A13 0.3
62.8 19
81 Instrument Light,
Grimes 15-0083-7
Cert. Basis
-
TC 2Al3 0.1 99.0 10
83
Cabin Light
Cert. Basis
-
TC 2Al3 0.3 99.0 30
85 Landing Light, G.E.
Model 4509
Cert. Basis
-
TC 2Al3 0.5 10.0
5
87 Navigation Lights (Wing)
(2)
Grimes Model A1285
(Red and Green)
Cert. Basis
-
TC 2Al3
0.4
106.6 43
89 Navigation Light
(Rear)
(1), Grimes
Model A2064
(White)
Cert. Basis
-
TC 2Al3 0.2 28 1.0
56
91
Rotating Beacon
Cert. Basis
-
TC 2A13 1.5
263.4 395
93
Anti-Collision Lights
(Wing Tip) (Whelen)
Cert. Basis
-
STC SA615EA 5.7
157.9 900
ISSUED: DECEMBER 20,
1976
REPORT: VB-800
6-35
