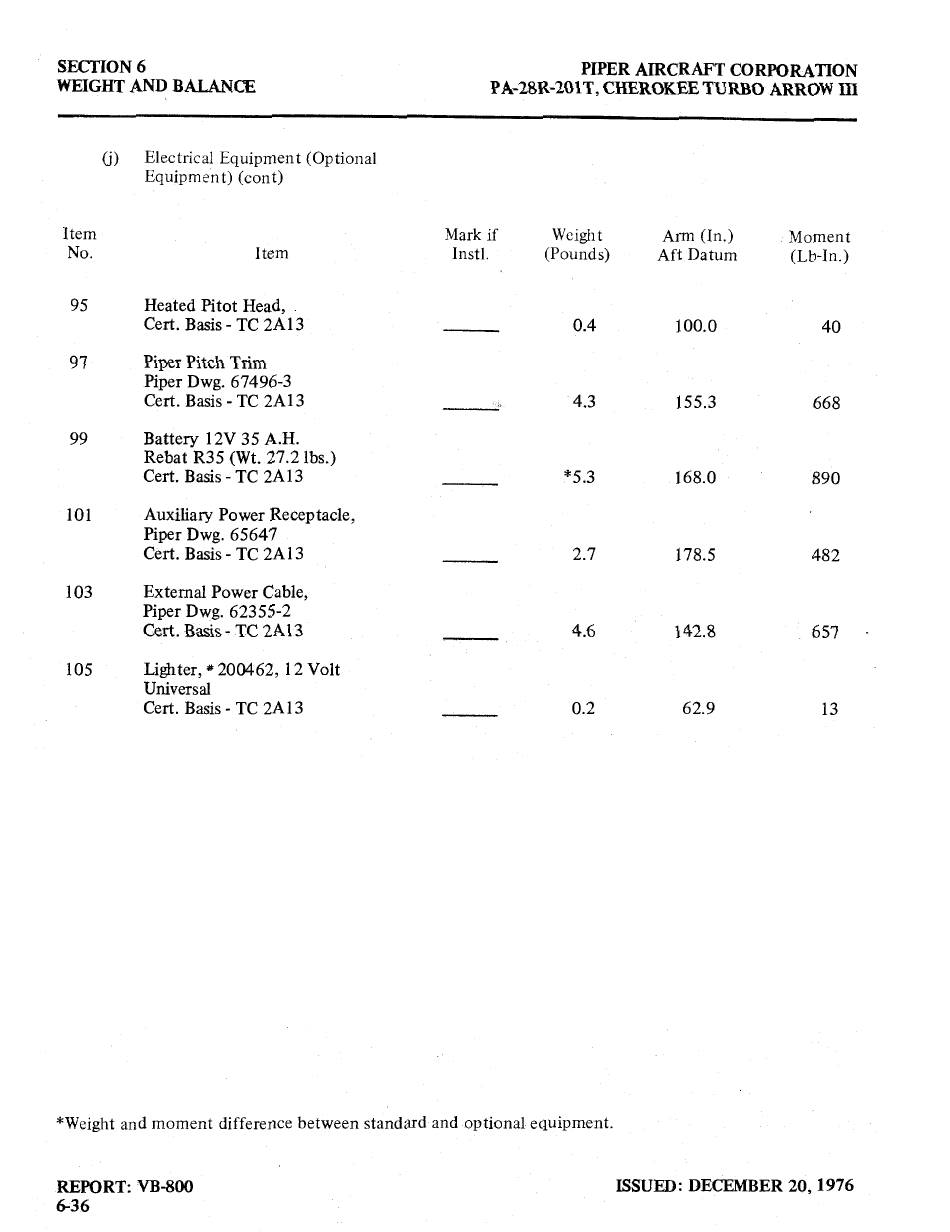

SECTION 6
PIPER AIRCRAFT CORPORATION
WEIGHT
AND
BALANCE
PA-28R-201T, CHEROKEE TURBO
ARROW IH
(j)
Electrical
Equipment
(Optional
Equipment)
(cont)
Item
Mark if
Weight
Arm (In.)
Moment
No.
Item
Instl.
(Pounds)
Aft Datum
(Lb-In.)
95
Heated Pitot Head,
Cert. Basis
-
TC 2A13
0.4
100.0
40
97
Piper Pitch Trim
Piper Dwg. 67496-3
Cert. Basis
-
TC 2A13
4.3
155.3
668
99
Battery 12V 35 A.H.
Rebat R35 (Wt. 27.2 lbs.)
Cert. Basis
-
TC 2A13
*5.3
168.0
890
101
Auxiliary Power Receptacle,
Piper Dwg. 65647
Cert. Basis
-
TC 2Al3
2.7
178.5
482
103
External Power Cable,
Piper Dwg. 62355-2
Cert.
Basis
-
TC
2Al3
4.6
142.8
657
105
Lighter,
*200462,
12 Volt
Universal
Cert. Basis
-
TC 2Al3
0.2
62.9
13
*Weight and
moment
difference between
standard
and optional equipment.
REPORT:
VB-800
ISSUED: DECEMBER
20, 1976
6-36
