RF-Lambda RAMP18G40GB Manual

12W Ultra Wide Band Bench Top Power Amplifier

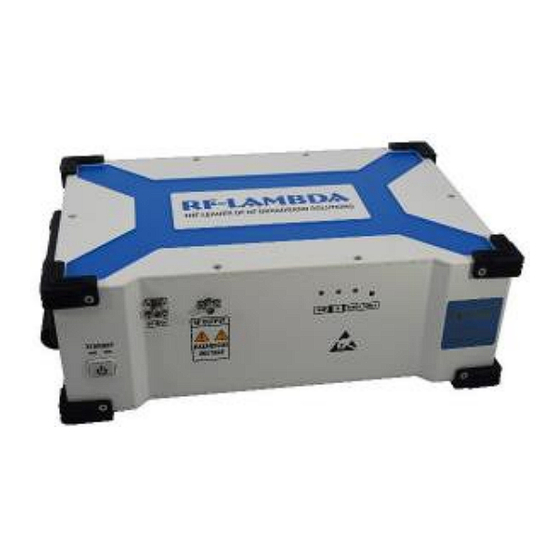

Note: Photo is for illustration purposes only.
Please refer to outline drawing.
Features
•
Ultra Wide Band Solid State AC Power Amplifier (SSPA)
•
Small Signal Gain 49dB Typical
•
Output Saturation Power 42dBm Typical
•
Supply Voltage 110/220 VAC
•
50 Ohm Matched Input / Output
•
Overcurrent Protection
Electrical Specifications (T
Frequency Range
Gain Flatness
Gain Variation Over Temperature
(-40℃~+70℃ )
Input Return Loss
Output 1dB Compression Point (P1dB)
Saturated Output Power (Psat)
Supply Current (AC=220V)
Power-Added Efficiency
Turn On/Off Speed (Switch Disable)
Turn On/Off Speed (Drain Disable)
Turn On/Off Speed (Gate Disable)
Weight
Input / Output Connectors
Rev 5. 03-26-2024 | Subject to change without notice
18GHz-40GHz
=+25⁰C)
A
Parameter
Gain
Isolation S12
ON
OFF
ON
OFF
ON
OFF
Net
Including Heat sink
Impedance
Package
Product Description
RAMP18G40GB is an ultra wide band AC Power amplifier with a frequency
range of 18 to 40GHz.
The power output of this amplifier is 42 dBm typical. The typical gain is 49
dB with a gain flatness of ±5.0dB.
The AC power amplifier uses a standard convenient 110V/220 VAC power
supply. The fan and heatsink are all completely integrated inside the unit.
The power amplifier's connectors are 2.92mm-Female and WRD180C24 .
The operating temperature of this product is within -30⁰C to +70⁰C.
Typical Applications
•
Wireless Infrastructure
•
Military and Aerospace Applications
•
Test Instrumentation
•
Radar Systems
•
5G Wireless Communications
•
Microwave Radio Systems
•
TR Modules
•
Research and Development
•
Cellular Base Stations
Min Typ
18
42
49
±5.0
±3.0
10
39
40 42
1.5
10
-50
100
100
50
50
1000
100
/ Max.
/ Max.
50
2.92mm-Female(Input) – WRD180C24 (Output)
Epoxy Sealed (Standard)
Hermetically Sealed (Optional)
Sales: sales@rflambda.com
RAMP18G40GB
Max Units
40 GHz
dB
dB
dB
dB
dBm
dBm
A
%
dB
ns
ns
us
us
us
us
lbs.
Ohms
RF-LAMBDA USA LLC: www.rflambda.com
Technical: support@rflambda.com
