RF-Lambda RAMP06G18GF Instructions Manual

Features
• Wideband EMC Solid State Power Amplifier
• Small Signal Gain 60dB Typical
• Output Saturation Power 51.5dBm Typical
• Supply Voltage 110/220 VAC
• 50 Ohm Matched Input/Output
• Overvoltage Protection
• Overcurrent Protection
• Auto Calibration
Electrical Specifications (T
Parameter
Frequency Range
Gain(Small signal)
Gain Flatness
Gain Adjustment Step (20dB Range)
Input Return Loss
Output Power 1dB Compression Point
(P1dB)
Output Power for 3 dB Compression (P3dB)
Saturated Output Power (Psat)
IM3
Harmonic Compression
Supply Current(220V)
Weight
Impedance
Input / Output Connectors
Package
Rev 3. 11-30-2021 | Subject to change without notice
Solid State Broadband
EMC Benchtop Power Amplifier
6GHz-18GHz
=+25⁰C)
A
Min Typ
6 - 13
60
±3.0
0.1
15
45
49
51.5
20
10
3.4
Product Description

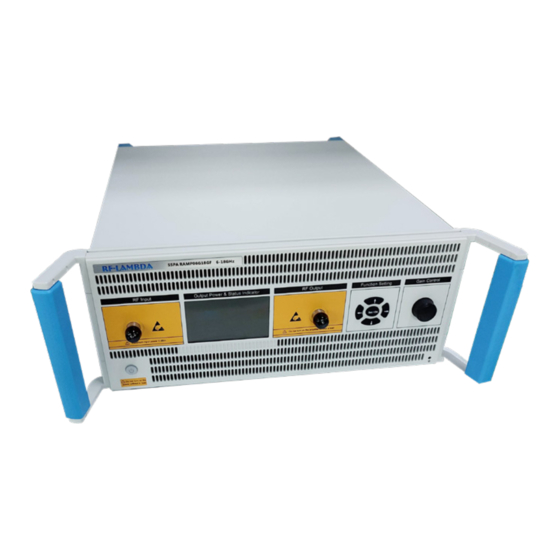

RAMP06G18GF is a wideband EMC benchtop power amplifier with a
frequency range of 6 to 18GHz
The power output of this amplifier is 51.5dBm typical. The typical small
signal gain is 60 dB with a great flatness of ±3 dB. This performance is
achieved through the use of GaN devices.
The power amplifier's input connector is N-Female and output connector is
N-Female.
The operating temperature of this product is within -30⁰C to +70⁰C.
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
Max Min
55 Typ.
50
N-Female(Input) – N-Female(Output)
4U
Please see the detail mechanical drawing
Sales: sales@rflambda.com
RAMP06G18GF
Typ Max Units
13 - 18 GHz
60 dB
±3.0 dB
0.1 dB
15 dB
45 dBm
48 dBm
50 dBm
20 dBc
10 dBc
3.4 A
lbs.
Ohms
