RF-Lambda REMC26G40GF Manual

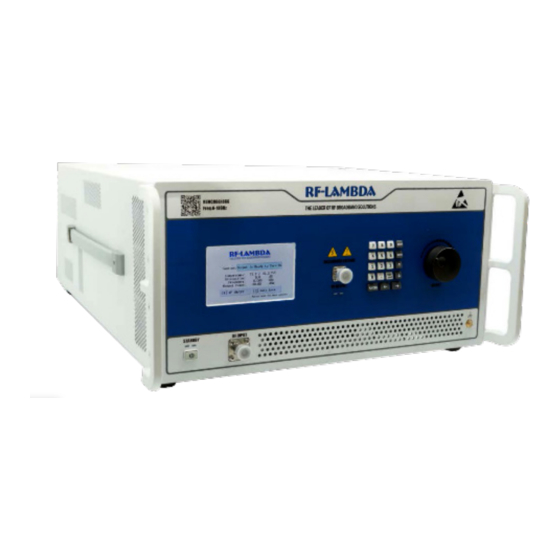

Note: Photo is for illustration purposes only.
Please refer to outline drawing.
Features
• Wideband EMC Solid State Power Amplifier
• Small Signal Gain 55dB Typical
• Output Saturation Power 50dBm Typical
• Supply Voltage 110/220 VAC
• 50 Ohm Matched Input/Output
• Overvoltage Protection
• Overcurrent Protection
• Auto Calibration
Electrical Specifications (T
Parameter
Frequency Range
Small Signal Gain
Gain Flatness
Gain Variation Over Temperature (0⁰C to +50⁰C)
Input Return Loss
*Output 1dB Compression Point (P1dB)
*Saturated Output Power (Psat)
Supply Current (Vcc = 110VAC)
RF ON and OFF Speed
Power Added Efficiency (PAE)
Time Division Duplexing (TDD) Blanking
Impedance
Input / Output Connectors
Rev 1. 07-18-2022. | Subject to change without notice
Wideband EMC Benchtop Power Amplifier
26GHz-40GHz
=+25⁰C)
A
IM3
Weight
Package
Product Description
REMC26G40GF is a wideband EMC power amplifier with a frequency range
of 26 to 40GHz
The power output of this amplifier is 50dBm typical. The typical small signal
gain is 55 dB with a great flatness of ±6 dB. This performance is achieved
through the use of GaN devices.
The power amplifier's input connector is 2.92mm-Female and output
connector is WR28.
The operating temperature of this product is within 0⁰C to +50⁰C.
Typical Applications
• Wireless Infrastructure
• Military and Aerospace Applications
• Test Instrumentation
• Radar Systems
• 5G Wireless Communications
• Microwave Radio Systems
• TR Modules
• Research and Development
• Cellular Base Stations
Min
26
ON
OFF
2.92mm-Female(Input) – WR28(Output)
Please see the detailed mechanical drawing
Sales:
REMC26G40GF
Typ Max
40
55
±6
±3
-10
48
50
10
-
50
10
1500
500
-
50
5U
RF-LAMBDA USA LLC:
sales@rflambda.com Technical:
Units
GHz
dB
dB
dB
dB
dBm
dBm
A
dBc
ns
%
us
us
lbs.
Ohms
