Electrical Specifications, T
Gain Variation Over Temperature
Output 1dB Compression Point (P1dB)
Saturated Output Power ( Psat)
Supply Current (110V/ 220V AC)
Input / Output Connectors
Rev 1. 06-10-2020

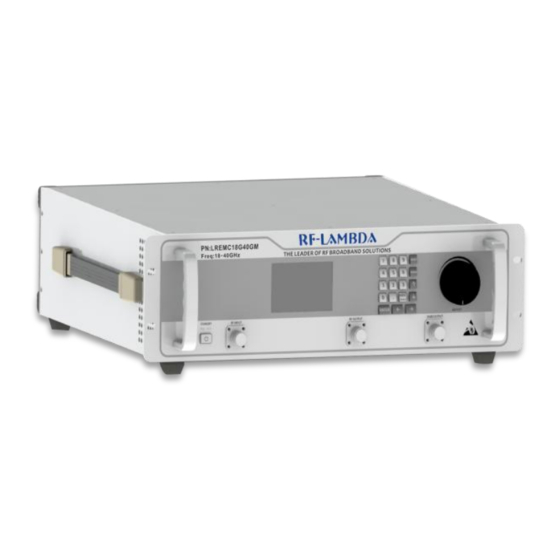

Wide Band EMC Benchtop Power Amplifier
= +25⁰C
A
Parameter
Frequency Range
Gain
Gain Flatness
(-40℃~+85℃ )
Input VSWR
(CW)
Isolation S12
Efficiency at Psat
Weight
Impedance
Finish
2GHz ~18GHz
Min.
2
50
Input SMA-Female/Output N-Female
White Painted Finish
REMC0218GE
Features
• Wideband Power Amplifier
•
Gain:
55dB
• Output Power +50dBm typical
• Supply Voltage: 110V/220V AC
Typical Applications
• Wireless Infrastructure
• Military & Aerospace
• Test and Measurement
Typ.
Max.
18
55
±5
±3
2
45
50
60
7
10
360.49
ounces
50
Ohms
RF-LAMBDA USA
Sales: sales@rflambda.com
Technical : support@rflambda.com
Units
GHz
dB
dB
dB
:1
dBm
dBm
dB
A
%
www.rflambda.com
Advertisement
Table of Contents
Related Manuals for RF-Lambda REMC0218GE
Summary of Contents for RF-Lambda REMC0218GE
- Page 1 REMC0218GE Wide Band EMC Benchtop Power Amplifier 2GHz ~18GHz Features • Wideband Power Amplifier • Gain: 55dB • Output Power +50dBm typical • Supply Voltage: 110V/220V AC Typical Applications • Wireless Infrastructure • Military & Aerospace • Test and Measurement Electrical Specifications, T = +25⁰C...
- Page 2 REMC0218GE Biasing Up Procedure Absolute Maximum Ratings Operating Voltage 230VAC Connect input and output with 50 Ohm RF Input Power +5dBm Step 1 source/load. ( in band VSWR<1.9:1 or >10dB return loss) Step 2 Turn on AC power Step 3...
-
Page 3: Ordering Information
REMC0218GE Ordering Information Part No. Description REMC0218GE 2-18GHz Power Amplifier Amplifier Use Ensure that the amplifier input and output ports are safely terminated into a proper 50 ohm load before turning on the power. Never operate the amplifier without a load. A proper 50 ohm load is defined as a load with impedance less than 1.9:1 or return loss larger than 10dB relative to 50 Ohm within the specified operating band width. -
Page 4: Front Panel
REMC0218GE EMC Equipment User Manual Front Panel ON/OFF switch Power Indicator Alarm Indicator Keypad Gain Adjustment Knob RF Output RF Input Rear Panel Instrument AC power supply switch Fuse Holder Main AC connector GND connector USER CONTROL, D-SUB Connector low-voltage (3.3V) TTL control signals. - Page 5 REMC0218GE Front Panel LCD Screen Display Switching On Instrument Please follow the instructions on the front panel LCD screen after switching on the power. Press “1” on keypad to continue. Self Calibration Screen Calibration is may be recommended “[1] Calibrate” to execute instrument self calibration process.
- Page 6 REMC0218GE Instrument Status Display Page Indicates instrument RF output status. It will display: Output is Ready to Turn on or RF Output is ON Instrument temperature RF output attenuation (change with adjustment knob) RF input signal center frequency Instrument RF output power Press “Menu”...
- Page 7 REMC0218GE User Control Connector on Rear Panel Pin # Name Function Initial State Description Applied Reset Control Resets PA when logic LOW is applied and released Driver Disable Control Appling logic HIGH disables driver of amplifiers Drain Disable Control Applying logic HIGH disables drain of amplifiers...
-
Page 8: Amplifier Outline Drawing
RF-Lambda products are not warranted or authorized for use as critical components in medical, life-saving, or life sustaining applications, or other applications where a failure would reasonably be expected to cause severe personal injury or death.
