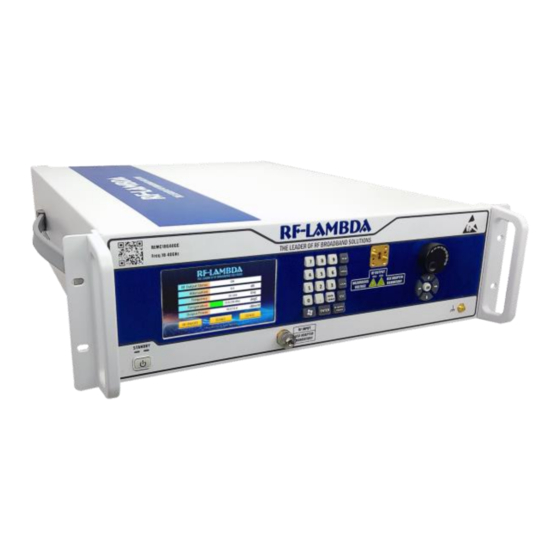

Note: Photo is for illustration purposes only.
Please refer to outline drawing.
Features
•
Wideband EMC Solid State Power Amplifier
•
Small Signal Gain 60dB Typical
•
Output Saturation Power 48dBm Typical
•
Supply Voltage 110/220 VAC
•
50 Ohm Matched Input/Output
•
Overvoltage Protection
•
Overcurrent Protection
•
Auto Calibration
Electrical Specifications (T
Gain Variation Over Temperature (0⁰C to +50⁰C)
Output 1dB Compression Point (P1dB)
Saturated Output Power (Psat)
Supply Current (220V AC)
Power Added Efficiency (PAE)
Turn On/Off Speed (Switch Disable)
Turn On/Off Speed (Drain Disable)
Turn On/Off Speed (Gate Disable)
Input / Output Connectors
Rev 3. 08-09-2023 | Subject to change without notice
Wideband EMC Benchtop Power Amplifier
18GHz-40GHz
=+25⁰C)
A
Parameter
Frequency Range
Small Signal Gain
Gain Flatness
Input VSWR
IM3
Weight
Impedance
Package
Product Description
REMC18G40GM is a wideband EMC power amplifier with a frequency
range of 18 to 40GHz.
The power output of this amplifier is 48dBm typical. The typical small signal
gain is 60dB with a flatness of ±8dB. This performance is achieved through
the use of GaN devices.
The power amplifier's input connector is 2.92mm-Male and Output
connector is WRD180C24. This product has a calibration feature which
enables customer to obtain great performance through time and
temperature changes.
The operating temperature of this product is within 0⁰C to +50⁰C.
Typical Applications
•
Wireless Infrastructure
•
Military and Aerospace Applications
•
Test Instrumentation
•
Radar Systems
•
5G Wireless Communications
•
Microwave Radio Systems
•
TR Modules
•
Research and Development
•
Cellular Base Stations
Min Typ
18
55 60
±8.0
±3.0
45
48
-28
10
ON 100
OFF 100
ON 500
OFF 250
ON 1500
OFF 250
2.92mm-Male(Input)/WRD180C24 (Output)
(Input connector equipped with adapter to 2.92-Female)
(Output connector: H-Plane available with adapter)
3U Rack-mount/Tabletop Chassis
