RF-Lambda REMC0506GF Quick Start Manual

Features
•
Wideband EMC Solid State Power Amplifier
•
Small Signal Gain 60dB
•
Output Saturation Power 53dBm Typical
•
Supply Voltage 110/220 VAC
•
50 Ohm Matched Input/Output
•
Over temperature protection
•
Over current protection
Electrical Specifications (T
Gain Variation Over Temperature (0⁰C to +50⁰C)
Output 1dB Compression Point (P1dB)
Saturated Output Power (Psat) (CW)
Supply Current (220V AC)
Power Added Efficiency (PAE)
Turn On/Off Speed (Switch Disable)
Turn On/Off Speed (Drain Disable)
Turn On/Off Speed (Gate Disable)
Input / Output Connectors
Rev 1. 12-20-2023 | Subject to change without notice
Wideband EMC Benchtop Power Amplifier
Typical
=+25⁰C)
A
Parameter
Frequency Range
Small Signal Gain
Gain Flatness
Input VSWR
IM3
Weight
Impedance
Package
0.5GHz-6GHz
Product Description

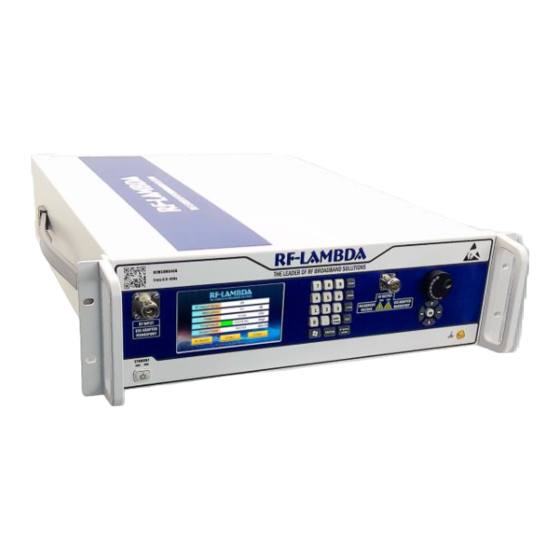

REMC0506GF is a wideband EMC power amplifier with a frequency range
of 0.5 to 6GHz.
The power output of this amplifier is 53dBm typical. The typical small signal
gain is 60dB with a flatness of ±3.0dB. This excellent performance is
achieved through the use of GaN devices.
The power amplifier input connector is N-Female and output connector is N-
Female.
The operating temperature of this product is within 0⁰C to +50⁰C.
Typical Applications
•
Wireless Infrastructure
•
Military and Aerospace Applications
•
Test Instrumentation
•
Radar Systems
•
5G Wireless Communications
•
Microwave Radio Systems
•
TR Modules
•
Research and Development
•
Cellular Base Stations
Min
0.5
55
ON
OFF
ON
OFF
ON
OFF
Sales:
REMC0506GF
Typ Max
6.0
60
±3.0
±3.0
1.5 2.0
48
53
0.5 10
-30
30
200
200
100
500
100
500
/
50
N-Female
3U Rack-mount/Tabletop Chassis
RF-LAMBDA USA LLC:
sales@rflambda.com Technical:
Units
GHz
dB
dB
dB
:1
dBm
dBm
A
dBc
%
ns
ns
us
us
us
us
lbs.
Ohms
www.rflambda.com
