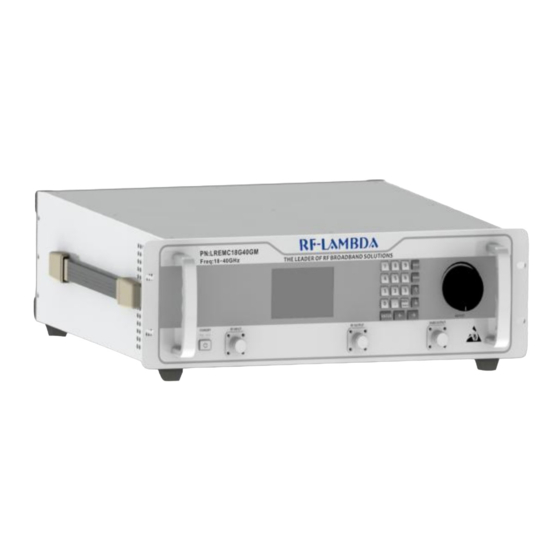

Wide Band EMC Benchtop Power Amplifier
18GHz ~26.5GHz
= +25⁰C
A
Parameter
Frequency Range
Gain
Gain Flatness
(-40℃~+85℃ )
Input VSWR
(CW)
Isolation S12
Efficiency at Psat
Weight
Impedance
Finish
Features
• Wideband Power Amplifier
•
Gain:
52dB
• Output Power +52dBm typical
• Supply Voltage: 110V/220V AC
Typical Applications
• Wireless Infrastructure
• Military & Aerospace
• Test and Measurement
Min.
Typ.
18
50
52
±5
±3
2
47
52
60
10
10
360.49
50
Input SMA-Female/Output WR42
White Painted Finish
Sales: sales@rflambda.com
REMC18G26GF
Max.
Units
26.5
GHz
dB
dB
dB
:1
dBm
dBm
dB
A
%
ounces
Ohms
RF-LAMBDA USA
www.rflambda.com
Technical : support@rflambda.com
Advertisement
Table of Contents
Related Manuals for RF-Lambda REMC18G26GF
Summary of Contents for RF-Lambda REMC18G26GF

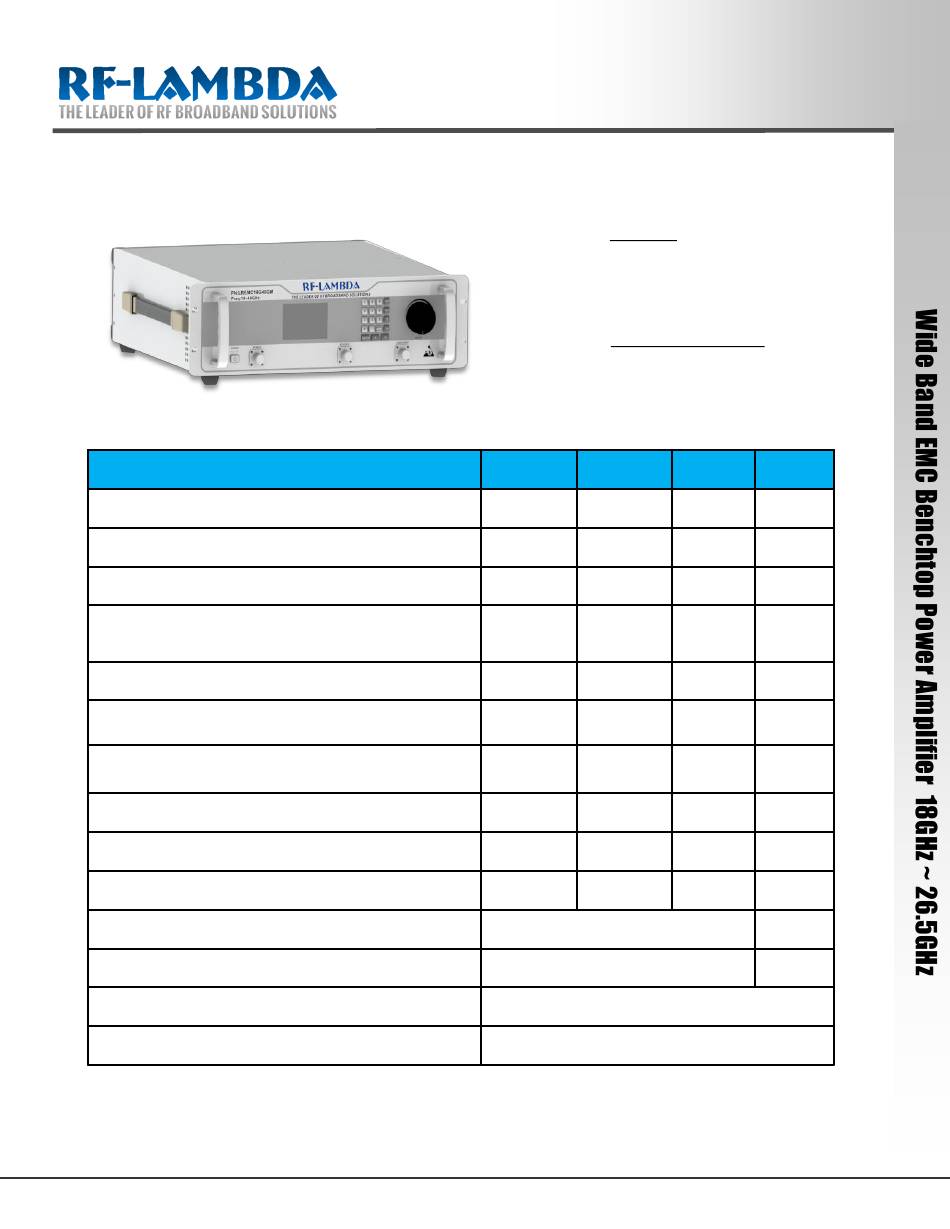

- Page 1 REMC18G26GF Wide Band EMC Benchtop Power Amplifier 18GHz ~26.5GHz Features • Wideband Power Amplifier • Gain: 52dB • Output Power +52dBm typical • Supply Voltage: 110V/220V AC Typical Applications • Wireless Infrastructure • Military & Aerospace • Test and Measurement Electrical Specifications, T = +25⁰C...
- Page 2 REMC18G26GF Biasing Up Procedure Absolute Maximum Ratings Operating Voltage 230VAC Connect input and output with 50 Ohm RF Input Power +5dBm Step 1 source/load. ( in band VSWR<1.9:1 or >10dB return loss) Step 2 Turn on AC power Step 3...
- Page 3 REMC18G26GF Ordering Information Part No. Description REMC18G26GF 18-26.5GHz Power Amplifier Amplifier Use Ensure that the amplifier input and output ports are safely terminated into a proper 50 ohm load before turning on the power. Never operate the amplifier without a load. A proper 50 ohm load is defined as a load with impedance less than 1.9:1 or return loss larger than 10dB relative to 50 Ohm within the specified operating band width.
- Page 4 REMC18G26GF EMC Equipment User Manual Front Panel ON/OFF switch Power Indicator Alarm Indicator Keypad Gain Adjustment Knob RF Output RF Input Rear Panel Instrument AC power supply switch Fuse Holder Main AC connector GND connector USER CONTROL, D-SUB Connector low-voltage (3.3V) TTL control signals.
- Page 5 REMC18G26GF Front Panel LCD Screen Display Switching On Instrument Please follow the instructions on the front panel LCD screen after switching on the power. Press “1” on keypad to continue. Self Calibration Screen Calibration is may be recommended “[1] Calibrate” to execute instrument self calibration process.
- Page 6 REMC18G26GF Instrument Status Display Page Indicates instrument RF output status. It will display: Output is Ready to Turn on or RF Output is ON Instrument temperature RF output attenuation (change with adjustment knob) RF input signal center frequency Instrument RF output power Press “Menu”...
- Page 7 REMC18G26GF User Control Connector on Rear Panel Pin # Name Function Initial State Description Applied Reset Control Resets PA when logic LOW is applied and released Driver Disable Control Appling logic HIGH disables driver of amplifiers Drain Disable Control Applying logic HIGH disables drain of amplifiers...
- Page 8 RF-Lambda products are not warranted or authorized for use as critical components in medical, life-saving, or life sustaining applications, or other applications where a failure would reasonably be expected to cause severe personal injury or death.
