RF-Lambda REMC18G40GC2 Quick Start Manual

Wideband 25W EMC Solid State Power Amplifier
Typical Applications
•
Wireless Infrastructure
•
Military and Aerospace Applications
•
Test Instrumentation
•
Radar Systems
•
5G Wireless Communications
•
Microwave Radio Systems
•
TR Modules
•
Research and Development
•
Cellular Base Stations
Electrical Specifications (T
Frequency Range
Small Signal Gain
Gain Variation Over Temperature (-40⁰C to +70⁰C)
Input Return Loss
*Output 1dB Compression Point (P1dB)
*Saturated Output Power (Psat)
Supply Current ( Vcc =110/220VAC)
RF ON and OFF Speed.
(Gate/Drain control through d-sub connector)
Power Added Efficiency (PAE)
Time Division Duplexing (TDD) Blanking
(RF switch control through d-sub connector)
Input / Output Connectors
Rev 2. 06-23-2023 | Subject to change without notice
B1.0
=+25⁰C)
A
Parameter
Gain Variance
IM3
Weight
Impedance
Package
18-40GHz
Product Description

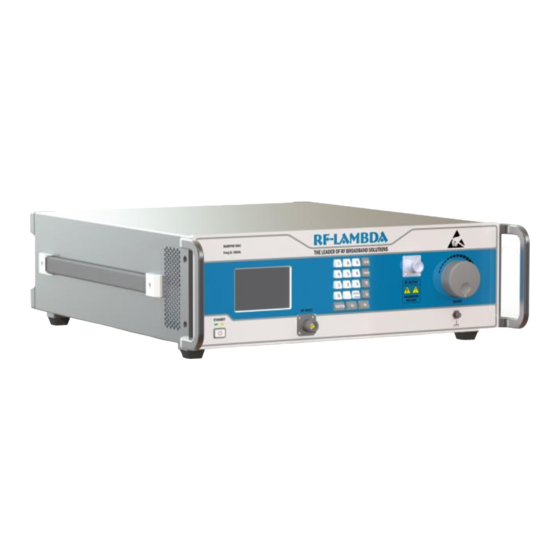

REMC18G40GC2 is a wideband EMC power amplifier with wide
frequency range of 18 to 40GHz.
Features
1. Small Signal Gain 50dB Typical
2. Digital Control Attenuator 15dB max, 0.5db step
3. Psat 44dBm Typical
4. Power supply: 110/220 VAC. Compatible for USA
and EU standard.
5. 50 Ohm Matched Input/Output
6. Protection Functions:
•
•
•
•
•
7. Amplifier Automatic Calibration Function
8. RF Output Power Display
9. RF Output Enable Function
10. Ethernet Remote Control
11. 5-inch LCD Front Panel Display Screen
Min
18 – 40GHz
ON
OFF
Input 2.92mm-Female/ Output WRD180C24
Please reference the mechanical drawing
Sales: sales@rflambda.com
REMC18G40GC2
Over temperature
Over current
Current imbalance
RF input over drive protection
VSWR protection
Typ Max
50
+/-6
+/-3
-10
42
44
6 8.75
-30
100
20
20
200
45
50
RF-LAMBDA USA LLC:
Technical: support@rflambda.com
Units
GHz
dB
dB
dB
dB
dBm
dBm
A
dBc
Us
%
us
us
lbs.
Ohms
www.rflambda.com
