100W Solid State EMC Benchtop Power Amplifier
Electrical Specifications, T
Frequency Range
Gain Variation Over Temperature
Input Return Loss
Output Return Loss
Saturated Output Power (Psat)
Output Third Order Intercept (IP3)
Supply Current (110V/ 220V AC)
Input Max Power (No Damage)
Power Supply Connector
Input / Output Connectors
Rev 2. 03-19-2021
℃
=25
A
Parameter
Gain
Gain Flatness
(-45 ~ +85)
IM3
Isolation S12
Weight
Impedance
Material
2GHz~6GHz
Features
•
Automatic Calibration
•
Built in Temperature Compensation
•
Adjustable Attenuation:
31.5dB Range, 0.5dB Step Size
•
Supply Voltage: 110V/220V AC
Typical Applications
•
Aerospace and military applications
•
Test and Measurement.
•
Research and Development.
Min.
Typ.
Max.
Min.
2 - 4
75
±5
±3
>7
10
50
-30
-
-65
Quiescent = 1.8
Max = 10
Psat – Gain
35
50
D-SUB COMBO 3POS
Input: SMA-Female or N-Type Female , Output: N-Type Female
Aluminum / Copper
RAMP02G06GC
Typ.
Max.
4 - 6
65
±4
±3
>7
10
50
-30
-
-65
RF-LAMBDA INC.
Sales: sales@rflambda.com
Technical : support@rflambda.com
Units
GHz
dB
dB
dB
dB
dB
dBm
dBc
dBm
dB
A
dBm
lbs
Ohms
www.rflambda.com
Advertisement
Related Manuals for RF-Lambda RAMP02G06GC
Summary of Contents for RF-Lambda RAMP02G06GC

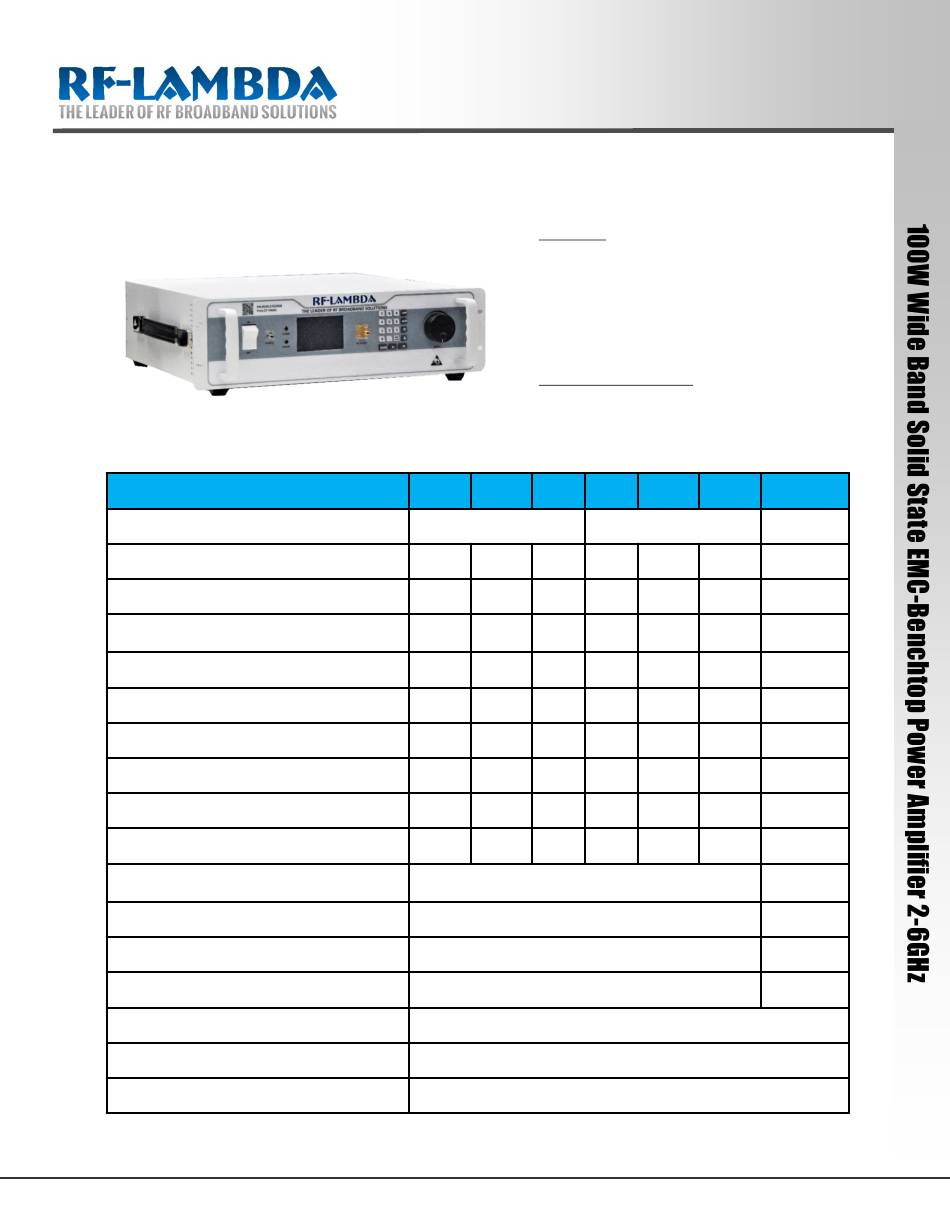

- Page 1 RAMP02G06GC 100W Solid State EMC Benchtop Power Amplifier 2GHz~6GHz Features • Automatic Calibration • Built in Temperature Compensation • Adjustable Attenuation: 31.5dB Range, 0.5dB Step Size • Supply Voltage: 110V/220V AC Typical Applications • Aerospace and military applications ℃ •...
- Page 2 RAMP02G06GC Biasing Up Procedure Absolute Maximum Ratings Connect input and output with 50 Ohm Supply Voltage 110V 220v ac Step 1 source/load. ( in band VSWR<1.9:1 or >10dB RF Input Power (RFIN) return loss) Psat – Gain Pin_max = Psat - Gainsat Step 2 Turn on AC power.
-
Page 3: Ordering Information
RAMP02G06GC Ordering Information Part No. Description RAMP02G06GC 2GHz~6GHz Power Amplifier Amplifier Use Ensure that the amplifier input and output ports are safely terminated into a proper 50 ohm load before turning on the power. Never operate the amplifier without a load. A proper 50 ohm load is defined as a load with impedance less than 1.9:1 or return loss larger than 10dB relative to 50 Ohm within the specified operating band width. - Page 4 RAMP02G06GC Typical Performance Plots Small Signal S-Parameters Note: Input/output return loss measurements include attenuators to protect equipment RF-LAMBDA INC. www.rflambda.com Rev 2. 03-19-2021 Sales: sales@rflambda.com Technical : support@rflambda.com...
- Page 5 RAMP02G06GC Gain vs Output Power (2.1 and 5.9GHz) P7dB vs Frequency (2.1 and 5.9GHz) P7dB vs Frequency (2.2 and 5.8 GHz) Gain vs Output Power (2.2 and 5.8GHz) P7dB vs Frequency (2GHz to 6GHz) Gain vs Output Power (2GHz to 6GHz) RF-LAMBDA INC.
- Page 6 RAMP02G06GC Harmonic Wave vs Pout Harmonic Wave vs Pout Current vs Pout Harmonic Wave vs Pout RF-LAMBDA INC. www.rflambda.com Rev 2. 03-19-2021 Sales: sales@rflambda.com Technical : support@rflambda.com...
-
Page 7: Outline Drawing
RF-Lambda products are not warranted or authorized for use as critical components in medical, life-saving, or life sustaining applications, or other applications where a failure would reasonably be expected to cause severe personal injury or death. -
Page 8: Front Panel
RAMP02G06GC EMC Equipment User Manual Front Panel ON/OFF switch Power Indicator Alarm Indicator Keypad Gain Adjustment Knob RF Output RF Input Rear Panel Instrument AC power supply switch Fuse Holder Main AC connector GND connector USER CONTROL, D-SUB Connector low-voltage (3.3V) TTL control signals. - Page 9 RAMP02G06GC Front Panel LCD Screen Display Switching On Instrument Please follow the instructions on the front panel LCD screen after switching on the power. Press “1” on keypad to continue. Self Calibration Screen Calibration is may be recommended “[1] Calibrate” to execute instrument self calibration process.
- Page 10 RAMP02G06GC Instrument Status Display Page Indicates instrument RF output status. It will display: Output is Ready to Turn on or RF Output is ON Instrument temperature RF output attenuation (change with adjustment knob) RF input signal center frequency Instrument RF output power Press “Menu”...
- Page 11 RAMP02G06GC User Control Connector on Rear Panel Pin # Name Function Initial State Description Applied Reset Control Resets PA when logic LOW is applied and released Driver Disable Control Appling logic HIGH disables driver of amplifiers Drain Disable Control Applying logic HIGH disables drain of amplifiers...
