RF-LAMBDA
The power beyond expectations

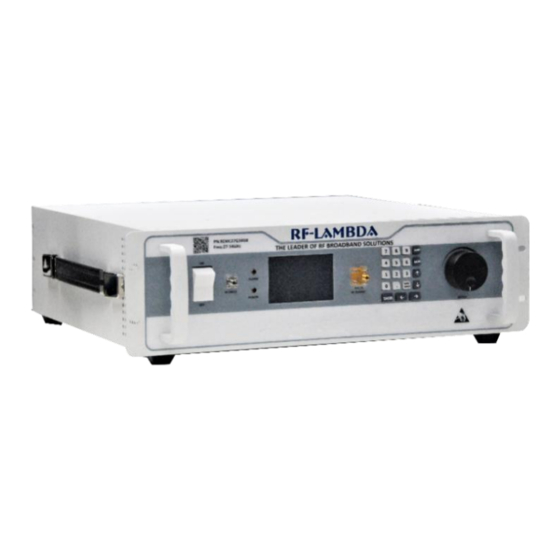

40W Solid State EMC Benchtop Power Amplifier
Electrical Specifications, T
Parameter
Frequency Range
Gain
Gain Flatness
Gain Variation Over Temperature
(-45 ~ +85)
Noise Figure
Input Return Loss
Output Return Loss
Output Power for 1 dB Compression (P1dB)
Saturated Output Power (Psat)
IM3 at (40dBm output)
Supply Current (5A 110V AC)
Output Third Order Intercept (IP3)
Isolation S12
Input Max Power (No Damage)
Weight
Impedance
Power Supply Connector
Input / Output Connectors
Material
6GHz~18GHz
℃
=25
A
Min.
Typ.
6 – 12
58
42
45
2.7
80
Input: SMA-Female ,Output: N-Type Female
Features
•
Automatic Calibration
•
Built in Temperature Compensation
•
Adjustable Attenuation:
31.5dB Range, 0.5dB Step Size
•
Supply Voltage: 110V/220V AC
Typical Applications
•
Aerospace and military applications
•
Test and Measurement.
•
Research and Development.
Max.
Min.
Typ.
12 – 18
62
68
52
56
±5
±4
±3
±3
6
6
15
13
25
22
43
44
40
41
46
46.5
43
45
-41
-39
3
3.5
3.7
3.6
-
-
86
79
85
+5
35
50
D-SUB COMBO 3POS
Aluminum / Copper
Sales: sales@rflambda.com
RAMP06G18GC
Max.
Units
GHz
60
dB
dB
dB
dB
dB
dB
42
dB
46
dBm
dBc
3.9
A
dBm
dB
dBm
lbs
Ohms
RF-LAMBDA INC.
www.rflambda.com
Technical : support@rflambda.com
Advertisement
Table of Contents
Related Manuals for RF-Lambda RAMP06G18GC
Summary of Contents for RF-Lambda RAMP06G18GC

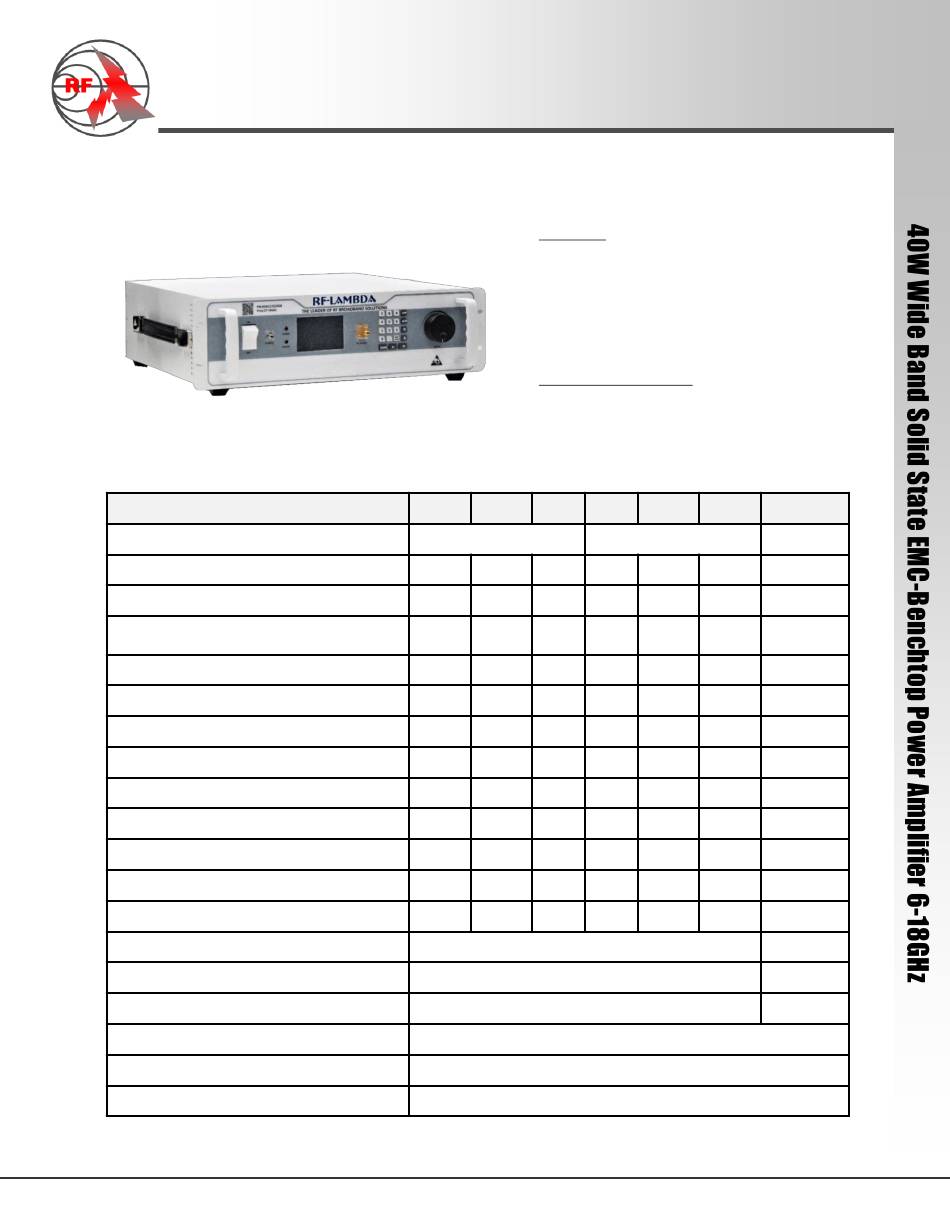

- Page 1 RF-LAMBDA RAMP06G18GC The power beyond expectations 40W Solid State EMC Benchtop Power Amplifier 6GHz~18GHz Features • Automatic Calibration • Built in Temperature Compensation • Adjustable Attenuation: 31.5dB Range, 0.5dB Step Size • Supply Voltage: 110V/220V AC Typical Applications • Aerospace and military applications •...
- Page 2 RF-LAMBDA RAMP06G18GC The power beyond expectations Absolute Maximum Ratings Biasing Up Procedure Supply Voltage 110V 220v ac Connect input and output with 50 Ohm RF Input Power (RFIN) Step 1 source/load. ( in band VSWR<1.9:1 or >10dB +5dBm Pin_max = Psat - Gainsat return loss) Storage Temperature (°C)
-
Page 3: Ordering Information
RF-LAMBDA RAMP06G18GC The power beyond expectations Ordering Information Part No. Description RAMP06G18GC 6GHz~18GHz Power Amplifier Amplifier Use Ensure that the amplifier input and output ports are safely terminated into a proper 50 ohm load before turning on the power. Never operate the amplifier without a load. A proper 50 ohm load is defined as a load with impedance less than 1.9:1 or return loss larger than 10dB relative to 50 Ohm within the specified operating band width. - Page 4 RF-LAMBDA RAMP06G18GC The power beyond expectations Typical Performance Plots Small Signal S-Parameters Note: Input/output return loss measurements include attenuators to protect equipment RF-LAMBDA INC. www.rflambda.com Sales: sales@rflambda.com Technical : support@rflambda.com...
- Page 5 RF-LAMBDA RAMP06G18GC The power beyond expectations 2nd Harmonic Wave Output Power 6‐18GHz Gain vs. Output Power 6‐18GHz 3rd Harmonic Wave output Power 6‐18GHz 4th Harmonic Wave output Power 6‐10GHz P7dB vs. Frequency 6‐18GHz P1dB vs. Frequency 6‐18GHz RF-LAMBDA INC. www.rflambda.com Sales: sales@rflambda.com...
-
Page 6: Outline Drawing
RF-Lambda products are not warranted or authorized for use as critical components in medical, life-saving, or life sustaining applications, or other applications where a failure would reasonably be expected to cause severe personal injury or death. -
Page 7: Front Panel
RF-LAMBDA RAMP06G18GC The power beyond expectations EMC Equipment User Manual Front Panel ON/OFF switch Power Indicator Alarm Indicator Keypad Gain Adjustment Knob RF Output RF Input Rear Panel Instrument AC power supply switch Fuse Holder Main AC connector GND connector USER CONTROL, D-SUB Connector low-voltage (3.3V) TTL control signals. - Page 8 RF-LAMBDA RAMP06G18GC The power beyond expectations Front Panel LCD Screen Display Switching On Instrument Please follow the instructions on the front panel LCD screen after switching on the power. Press “1” on keypad to continue. Self Calibration Screen Calibration is may be recommended “[1] Calibrate”...
- Page 9 RF-LAMBDA RAMP06G18GC The power beyond expectations Instrument Status Display Page Indicates instrument RF output status. It will display: Output is Ready to Turn on or RF Output is ON Instrument temperature RF output attenuation (change with adjustment knob) RF input signal center frequency Instrument RF output power Press “Menu”...
- Page 10 RF-LAMBDA RAMP06G18GC The power beyond expectations User Control Connector on Rear Panel Pin # Name Function Initial State Description Applied Reset Control Resets PA when logic LOW is applied and released Driver Disable Control Appling logic HIGH disables driver of amplifiers...
