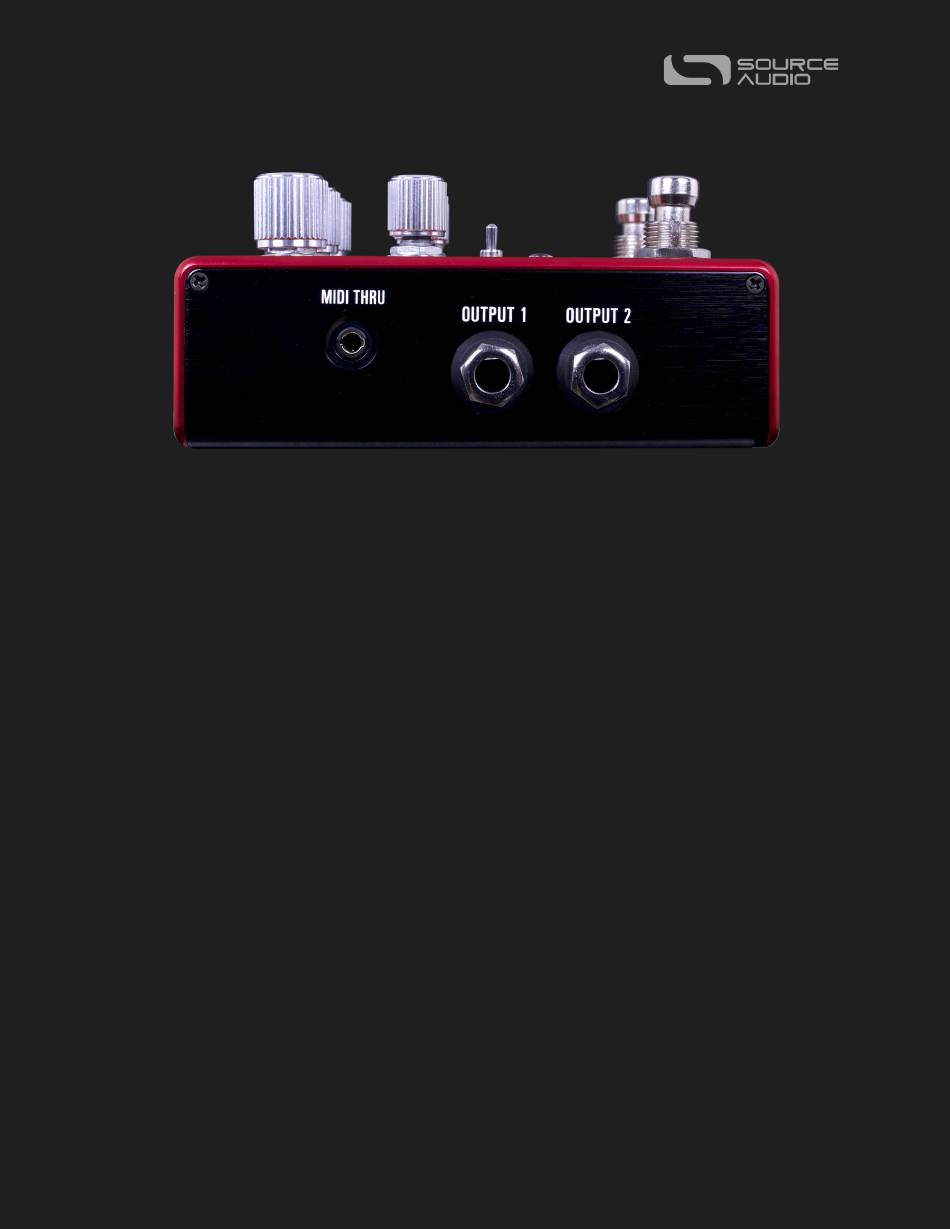

Output Side Connections

OUTPUT 1

This is the primary audio output. Connect it to your amplifier, recording interface, or the

next device in your effects signal chain using a mono (TS) ¼" cable.

OUTPUT 2

OUTPUT 2 can act as a second, stereo audio output. Be sure to continue to use TS cables.

Artifakt outputs a stereo image using two unbalanced (TS) outputs, not one TRS output.

OUTPUT 2 as an Audio Output:

output. It carries an audio signal when the Artifakt is configured with a signal routing that

uses stereo outputs. Connect it to your amplifier, recording interface, or the next device in

your effects signal chain using a mono (TS) ¼" cable.

MIDI THRU (3.5mm TRS)

Here is where you'll connect any downstream MIDI devices to the Artifakt. The Artifakt

uses class compliant TRS "Type A" pinout for MIDI connectivity. If your next device uses a

full-sized MIDI DIN cable, you'll likely need a 3.5mm (1/8 inch) to DIN passive adaptor.
