CD-3602EK
2D Image Scanner
User Manual
CD-3602EK for EK Series Kiosk
Package Contents

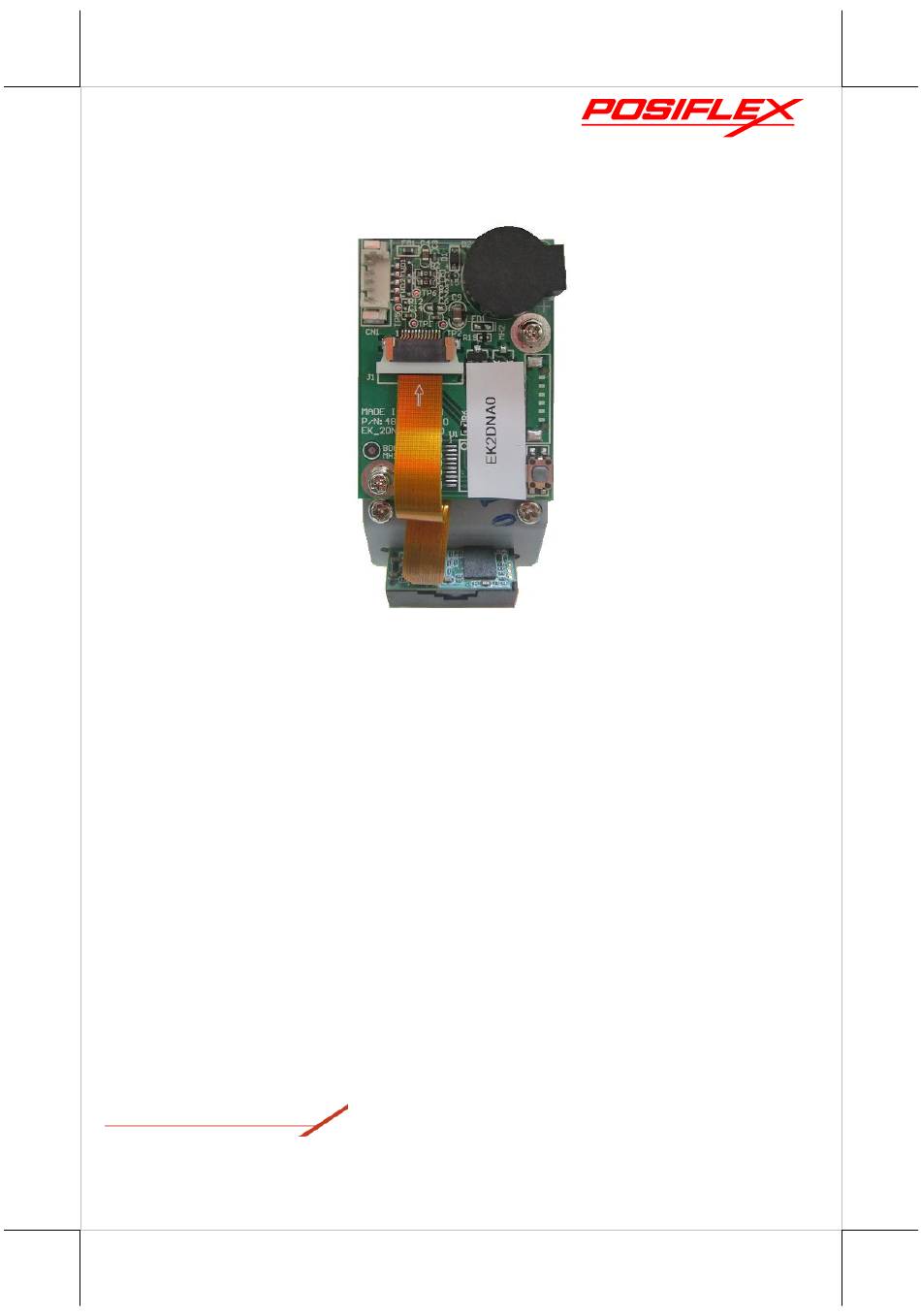

CD-3602EK 2D Image Scanner
USB Type A to 5-Pin Connector Cable
ψ
2
2.6-8L Screws
CD-3602EK Ver. B0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CD-3602EK and is the answer not in the manual?

Questions and answers

Summary of Contents for POSIFLEX CD-3602EK

  • Page 1 CD-3602EK 2D Image Scanner User Manual CD-3602EK for EK Series Kiosk Package Contents  CD-3602EK 2D Image Scanner  USB Type A to 5-Pin Connector Cable ψ  2.6-8L Screws CD-3602EK Ver. B0...
  • Page 2 5-Pin USB Connector Screw Hole for Screw Hole for EK Series Kiosk EK Series Kiosk Scanner Engine Installing CD-3602EK to EK Series Kiosk To unlock the front door, turn the key counterclockwise to around 180 degrees. See the images below. 180゜...
  • Page 3 Once the front door is unlocked, the user is able to open the front door. See the images below. Tear off the protective film on one side of the acrylic lens with a "light blue handle", then place the acrylic lens in the scanner holder. Fix it with 2 dots of yellow glue.
  • Page 4 Please remove the two screws to take the USB hub board off from the front door. Be careful of the cables.
  • Page 5 After removing the USB hub board, fix the scanner module inside the front door with two ψ2.6 screws. Connect the 5-Pin USB connector of the scanner module with the USB cable.
  • Page 6 Fix the USB hub board back inside the front door, and then connect the other side of the USB cable to the USB hub board. Please refer to the below pictures. Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance.
  • Page 7: Programming Codes

    Problem Diagnostic Tips The scanner is on but cannot read The scanner window is dirty. Clean the scanner any barcode. window as described in the Scanner Maintenance section. The presented barcode type is not enabled. Use this guide to tell the scanner to accept that type of barcode.
  • Page 8 Firmware Version Scan the below barcode label to retrieve the current firmware version. Query Firmware Version Default Settings Scanning the following barcode can restore the engine to the factory defaults. Restore All Factory Defaults Programming Barcodes Scanning the Enter Setup barcode can enable the engine to enter the setup mode.
  • Page 9 Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture:  Normal Illumination LEDs on the engine are turned on during image capture.  Always On Illumination LEDs on the engine keep on after the engine is powered ...
  • Page 10 Aiming When scanning/capturing image, the engine projects an aiming pattern which allows positioning the target barcode whining its field of view and thus makes decoding easier.  Normal The engine projects an aiming pattern only during barcode scanning/capturing.  Always On Aiming pattern is constantly on after the engine is powered on.
  • Page 11 Good Read Beep Volume There are 20 volume levels to choose from. The bigger the value, the louder the Good Read Beep. Before setting, please scan the Enter Setup barcode first. After setting, please scan the Exit Setup barcode. Loud Medium Enabling/Disabling of readable codes Before setting, please scan the Enter Setup barcode first.
  • Page 12 Disable All Symbologies Enable 1D Symbologies Disable 1D Symbologies Enable 2D Symbologies Disable 2D Symbologies Enable Code 128 Disable Code 128 Enable EAN-8...
  • Page 13 Disable EAN-8 Enable EAN-13 Disable EAN-13 Enable UPC-E Disable UPC-E Enable UPC-A Disable UPC-A Enable Interleaved 2 of 5...
  • Page 14 Disable Interleaved 2 of 5 Enable Matrix 2 of 5 Disable Matrix 2 of 5 Enable Code 39 Disable Code 39 Enable Codabar Disable Codabar Enable Code 93...
  • Page 15 Disable Code 93 Enable GS1-128 Disable GS1-128 Enable GS1 Databar Disable GS1 Databar Enable Code 11 Disable Code 11 Enable ISBN...
  • Page 16 Disable ISBN Enable ISSN Disable ISSN Enable Industrial 25 Disable Industrial 25 Enable Standard 25 Disable Standard 25 Enable Plessey...
  • Page 17 Disable Plessey Enable MSI-Plessey Disable MSI-Plessey Enable AIM 128 Disable AIM 128 Enable PDF417 Disable PDF417 Enable QR Code...
  • Page 18 Disable QR Code Enable Micro QR Disable Micro QR Enable Data Matrix Disable Data Matrix Enable Rectangular Barcode Disable Rectangular Barcode...
  • Page 19 Resolution=30mil; PCS=0.8. ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3602U/R, please check this model from Posiflex Global Website. Or download the advanced manual for more detailed settings.
