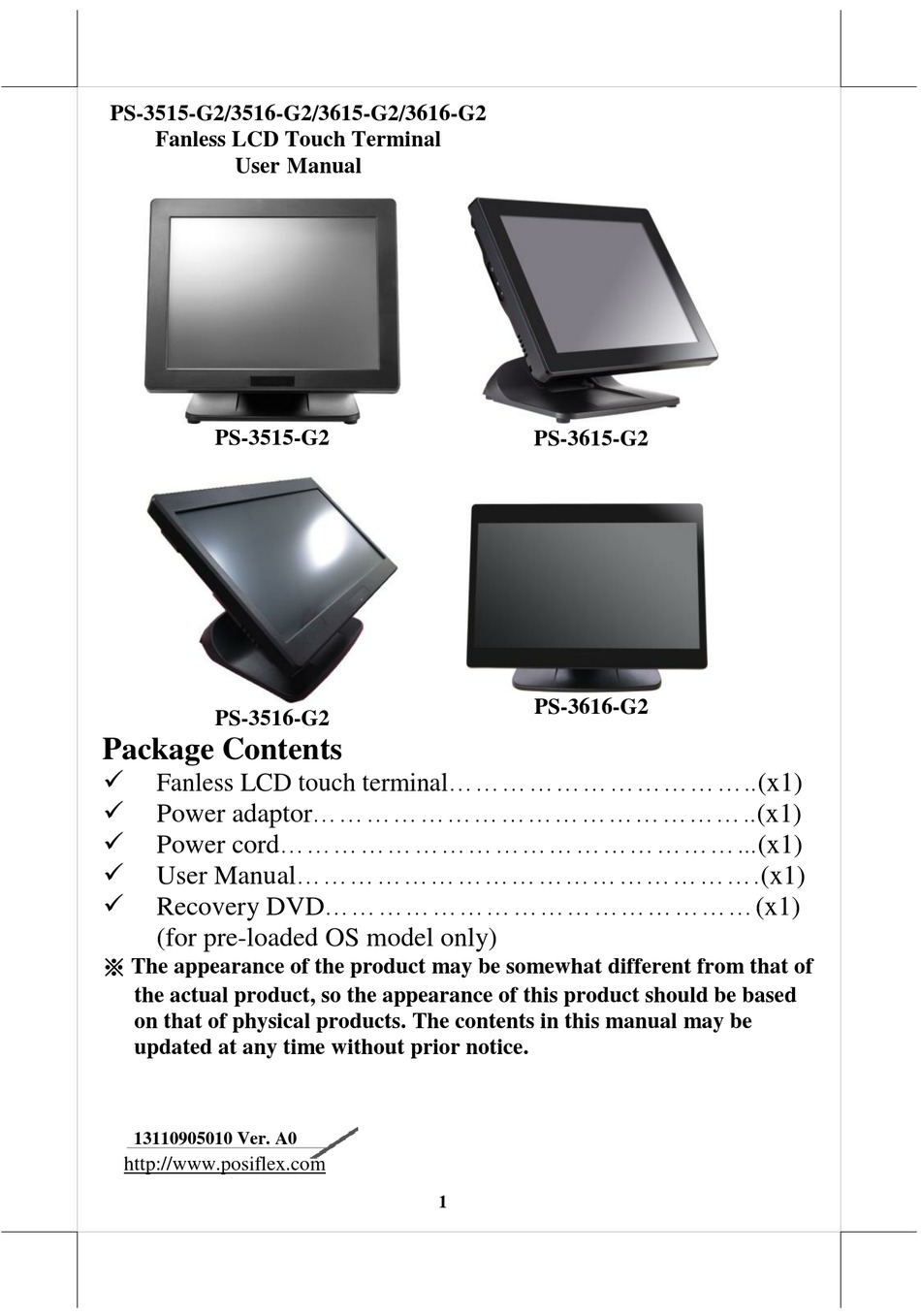

PS-3515-G2/3516-G2/3615-G2/3616-G2 Fanless LCD Touch Terminal User Manual PS-3515-G2 PS-3615-G2 PS-3616-G2 PS-3516-G2 Package Contents Fanless LCD touch terminal ……………………………..(x1) Power adaptor…………………………………………..(x1) Power cord……………………………………………...(x1) User Manual…………………………………………….(x1) Recovery DVD…………………………………………(x1) (for pre-loaded OS model only) ※ The appearance of the product may be somewhat different from that of the actual product, so the appearance of this product should be based on that of physical products.
Page 2
SOME IMPORTANT NOTES FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 3
種情況下,使用者會被要求採取某些適當的對策。 SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants. BATTERY CAUTION NOTES ...
Page 4
Terminal from shipping mode to operation mode In consideration of proper packaging, before shipping, the terminal is folded, staying in shipping mode. Thus, when receiving the product, you will find that the terminal is well folded, as shown below. Before operating this terminal, unfold it and make this terminal rise in operation mode by referring to the following steps.
Page 5
4. Tilt this terminal to a degree in the direction as indicated by the arrow below. 5. Remove the cable cover from the base. 6. Fix the base with two #/6/32 screws. 7. Push the cable cover back to the base. Terminal from operation mode to shipping mode To fold this terminal, refer to the following steps.
Page 6
2. Carefully hold the lower rim of the display. 3. Push the base-folding lever in the direction as indicated by the arrow below (1). Then, the display will be loosen and go down (2). 4. When the display goes down to a degree, loose the base-folding lever, as shown in the direction as indicated by the arrow below.
Page 7
6. Put back the cable cover. Overviews of the PS-3515-G2/3516-G2/3615- G2/3616-G2 Front View Resistive Touch Panel LED Indicator Gen 7E Base PS-3515-G2 PS-3516-G2 P-CAP Touch Panel LED Indicator Gen 7E Base PS-3615-G2 PS-3616-G2...
Rear View Rear I/O Cover Display Screw Hole Hinge for LCD Neck Cover Cable Cover Cable Exit Left Side View Right Side View Power Button Brightness Adjustment Button “+” Side Attachment Cover Brightness Adjustment Button “-” Bottom View Bottom I/O Cover...
Page 9
RJ11 Cash Drawer Port 12VDC-IN Power Jack Installing Optional Upgrade Kits and Peripherals PS-3515-G2/3516-G2/3615-G2/3616-G2 can work with multiple optional upgrade kits and peripheral devices, such as magnetic stripe reader (MSR), LCD monitor, cash drawer and the like. Before installing an optional upgrade kit and/or peripheral device, make sure...
Page 10
Connecting Power Adapter and I/O Cables Before connecting power adapter and I/O cables to the I/O ports of PS series terminal, please route and arranging the cables. Refer to the following step-by- step instruction of cable routing and arrangement for the details. Here, an equivalent model with GEN 7 base is taken below for example.
Page 11
4. Press the circled section with two thumbs and pull by force the two sides of the locking hook with two forefingers as indicated by the arrow. 5. Remove the neck cover from the base stand. 6. Tilt the terminal slightly at a little angle in the direction as shown by the arrow, making cables easily pass through the cable passage.
Page 12
8. Push and tilt the terminal to the end in the direction as shown by the arrow. 9. Remove the bottom I/O cover with your forefinger inserting the middle hole of the cover. 10. Connect the connector of the power adapter to the 12VDC-IN power jack.
Page 13
12. Push and tilt the terminal to the end in the direction as shown by the arrow. 13. Arrange well the I/O cable located at the area of neck cover. 14. Shield the I/O cable arrangement area on the neck of the base stand with the neck cover.
Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre. Powering ON the PS-3515-G2/3516-G2/3615- G2/3616-G2 After connecting the power cable to the power jack of the terminal, press the power button to power on the terminal.
Please contact your service center for operating system recovery. Driver Download If your POS terminal is shipped without OS pre-installed, please download the relevant driver that you need from the Posiflex website (http://www.posiflex.com/en-global/Download/download). Operation Environment This terminal must NOT be operated in an environment with restricted ventilation.
Page 16
0°C - 40°C, 20%RH - 90%RH Condition Storage -20°C - 60°C, 10%RH - 90%RH Condition ※ The product information and specifications are subject to change without prior notice. To get the detailed information on the PS-3515-G2/3516- G2/3615-G2/3616-G2, please check this model from Posiflex Global Website.
