CD-3604EK
2D Image Scanner
User Manual
CD-3604EK for EK Series Kiosk
Package Contents

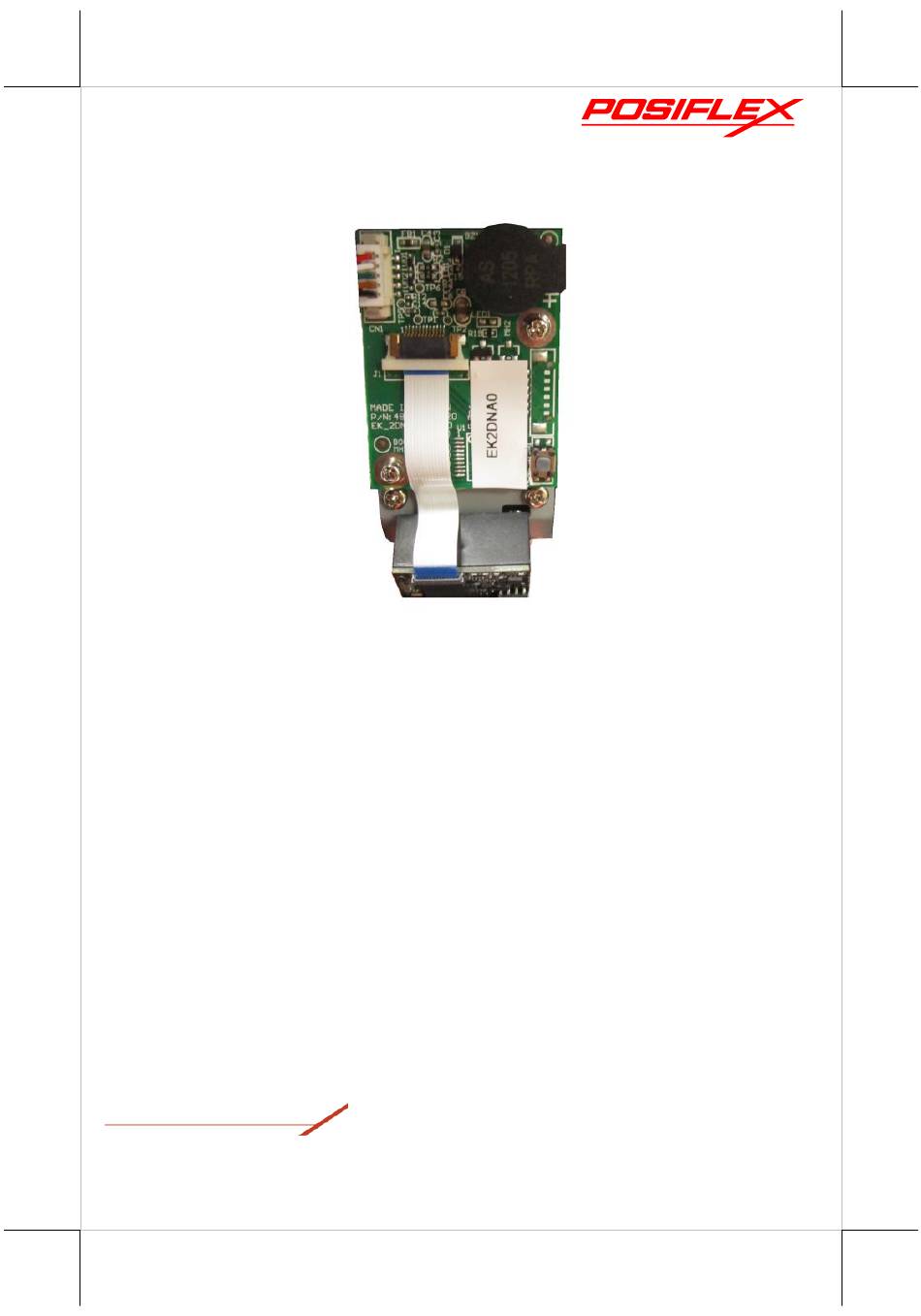

CD-3604EK 2D Image Scanner
USB Type A to 5-Pin Connector Cable
ψ
2
2.6 Screws
CD-3604EK Ver. A0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-3604EK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX CD-3604EK

Summary of Contents for POSIFLEX CD-3604EK

  • Page 1 CD-3604EK 2D Image Scanner User Manual CD-3604EK for EK Series Kiosk Package Contents  CD-3604EK 2D Image Scanner  USB Type A to 5-Pin Connector Cable ψ  2.6 Screws CD-3604EK Ver. A0...
  • Page 2 Parts of the 2D Image Scanner CD-3602EK Scanner Module 5-Pin USB Connector Manual Trigger Button Screw Hole for Screw Hole for EK Series Kiosk EK Series Kiosk Scanner Engine Trigger Mode The scanner for EK series model is auto trigger by default. The manual trigger button is for scanner setup.
  • Page 3 Please remove the two screws to take the USB hub board off from the front door. Be careful of the cables. After removing the USB hub board, fix the scanner module inside the front door with two ψ2.6 screws. And then connect the 5-Pin USB connector of the scanner module with the USB cable.

  • Page 4: Scanner Maintenance

    Fix the USB hub board back inside the front door, and then connect the other side of the USB cable to the USB hub board. Please refer to the below pictures. Scanner Maintenance The scanner is designed for long-term trouble-free operation and rarely requires any maintenance.

  • Page 5: Default Settings

    Problem Diagnostic Tips The barcode type presented is not supported by the scanner. The scanner does not accept more Determine whether the required barcode types than two or three barcode labels. are enabled or not. A stray barcode is sitting somewhere in the scanner field of view.

  • Page 6: Programming Barcodes

    Programming Barcodes Scanning the Enter Setup barcode can enable the engine to enter the setup mode. Then you can scan a number of programming barcodes to configure your engine. To exit the setup mode, scan the Exit Setup barcode or a non- programming barcode, or reboot the engine.
  • Page 7 USB HID-KBW (default) $>:S0F0116.<$ USB HID POS $>: S0F0516.<$ USB Virtual COM $>: S0F0216.<$ RS232 $>: S0F0016.<$ Illumination A couple of illumination options are provided to improve the lighting conditions during every image capture: Before setting, please scan the Enter Setup barcode on P.6. After setting, please scan the Exit Setup barcode on P.6.

  • Page 8: Good Read Beep Frequency

    Always On $>:S0C0800.<$ Aiming When scanning/capturing image, the engine projects an aiming pattern which allows positioning the target barcode whining its field of view and thus makes decoding easier. Before setting, please scan the Enter Setup barcode on P.6. After setting, please scan the Exit Setup barcode on P.6. $>:S300000.<$ Reading On (Lit when reading, default) $>:S301000.<$...
  • Page 9 Medium $>:SFF4B27.<$ Loud (default) $>:SFF2527.<$ Prompt Tone Duration Before setting, please scan the Enter Setup barcode on P.6. After setting, please scan the Exit Setup barcode on P.6. 40ms (Short) $>:SFF1F28.<$ 80ms (Middle) (default) $>:SFF3E28.<$ 120ms (Long) $>:SFF5D28.<$ Good Read Tone Sound Before setting, please scan the Enter Setup barcode on P.6.
  • Page 10 Medium $>:S030118.<$ Loud $>:S030218.<$ Enabling/Disabling of readable codes Before setting, please scan the Enter Setup barcode on P.6. After setting, please scan the Exit Setup barcode on P.6. Enable All Barcodes $>:S010187.<$ Disable All Barcodes $>:S010087.<$ Enable All 1D Codes $>:S020287.<$ Disable All 1D Codes $>:S020087.<$...
  • Page 11 Disable All 2D Codes $>:S040087.<$ Enable Code128/AIM128/EAN128/NL128 (default) $>:S010188.<$ Disable Code128/AIM128/EAN128/NL128 $>:S010088.<$ Enable UPC/EAN/ISSN/ISBN (default) $>:S010189.<$ Disable UPS/EAN/ISSN/ISBN $>:S010089.<$ Enable Codabar $>:S01018C.<$ Disable Codabar (default) $>:S01008C.<$...
  • Page 12 Enable Code 39 (default) $>:S01018A.<$ Disable Code 39 $>:S01008A.<$ Enable Code 32 (default) $>:S0101AB.<$ Disable Code 32 $>:S0100AB.<$ Enable Code 93 (default) $>:S01018D.<$ Disable Code 93 $>:S01008D.<$ Enable Code 11 $>:S01018F.<$...
  • Page 13 Disable Code 11 (default) $>:S01008F.<$ Enable ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14 (default) $>:S01018B.<$ Disable ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14 $>:S01008B.<$ Enable Industrial 25 $>:S010193.<$ Disable Industrial 25 (default) $>:S010093.<$ Enable Matrix 25 $>:S01018E.<$ Disable Matrix 25 (default) $>:S01008E.<$...
  • Page 14 Enable NEC 25/Japan Matrix 25 $>:S01019E.<$ Disable NEC 25/Japan Matrix 25 (default) $>:S01009E.<$ Enable Standard 25 $>:S010192.<$ Disable Standard 25 (default) $>:S010092.<$ Enable Data Logic 25 $>:S01019F.<$ Disable Data Logic 25 (default) $>:S01009F.<$ Enable MSI-Plessey $>:S010191.<$...
  • Page 15 Disable MSI-Plessey (default) $>:S010091.<$ Enable Plessey $>:S0101A0.<$ Disable Plessey (default) $>:S0100A0.<$ Enable RSS-EXP/RSS_14/GS1 Data $>:S010190.<$ Disable RSS-EXP/RSS_14/GS1 Data (default) $>:S010090.<$ Enable Telepen $>:S010194.<$ Disable Telepen (default) $>:S010094.<$...
  • Page 16 Enable Pharma Code One-Track $>:S0101A1.<$ Disable Pharma Code One-Track (default) $>:S0100A1.<$ Enable Pharma Code Two-Track $>:S0101A2.<$ Disable Pharma Code Two-Track (default) $>:S0100A2.<$ Enable AZTEC $>:S01019A.<$ Disable AZTEC (default) $>:S01009A.<$ Enable CODABLOCK A $>:S01019C.<$...
  • Page 17 Disable CODABLOCK A (default) $>:S01009C.<$ Enable CODABLOCK F $>:S01019D.<$ Disable CODABLOCK F (default) $>:S01009D.<$ Enable Data Matrix (default) $>:S010197.<$ Disable Data Matrix $>:S010097.<$ Enable MaxiCode $>:S010199.<$ Disable MaxiCode (default) $>:S010099.<$...
  • Page 18 Enable PDF417 (default) $>:S010195.<$ Disable PDF417 $>:S010095.<$ Enable Micro PDF $>:S0101A3.<$ Disable Micro PDF (default) $>:S0100A3.<$ Enable Micro QR $>:S010198.<$ Disable Micro QR (default) $>:S010098.<$ Enable Han Xin Code $>:S01019B.<$...
  • Page 19 Disable Han Xin Code (default) $>:S01009B.<$ Enable DOTCODE $>:S0101AE.<$ Disable DOTCODE (default) $>:S0100AE.<$ Allow ID Card Reading $>:S0101AC.<$ Prohibit ID Card Reading (default) $>:S0100AC.<$ Allow Passport Reading $>:S0202AC.<$ Prohibit Passport Reading $>:S0200AC.<$...

  • Page 20: Specifications

    **Test conditions: Scan Distance=(min. DOF + max. DOF)/2; T=25°C; Illumination=200lux using incandescent lamp. ※ The product information and specifications are subject to change without prior notice. To get the detailed information of the CD-3604 series, please check this model from Posiflex Global Website.
