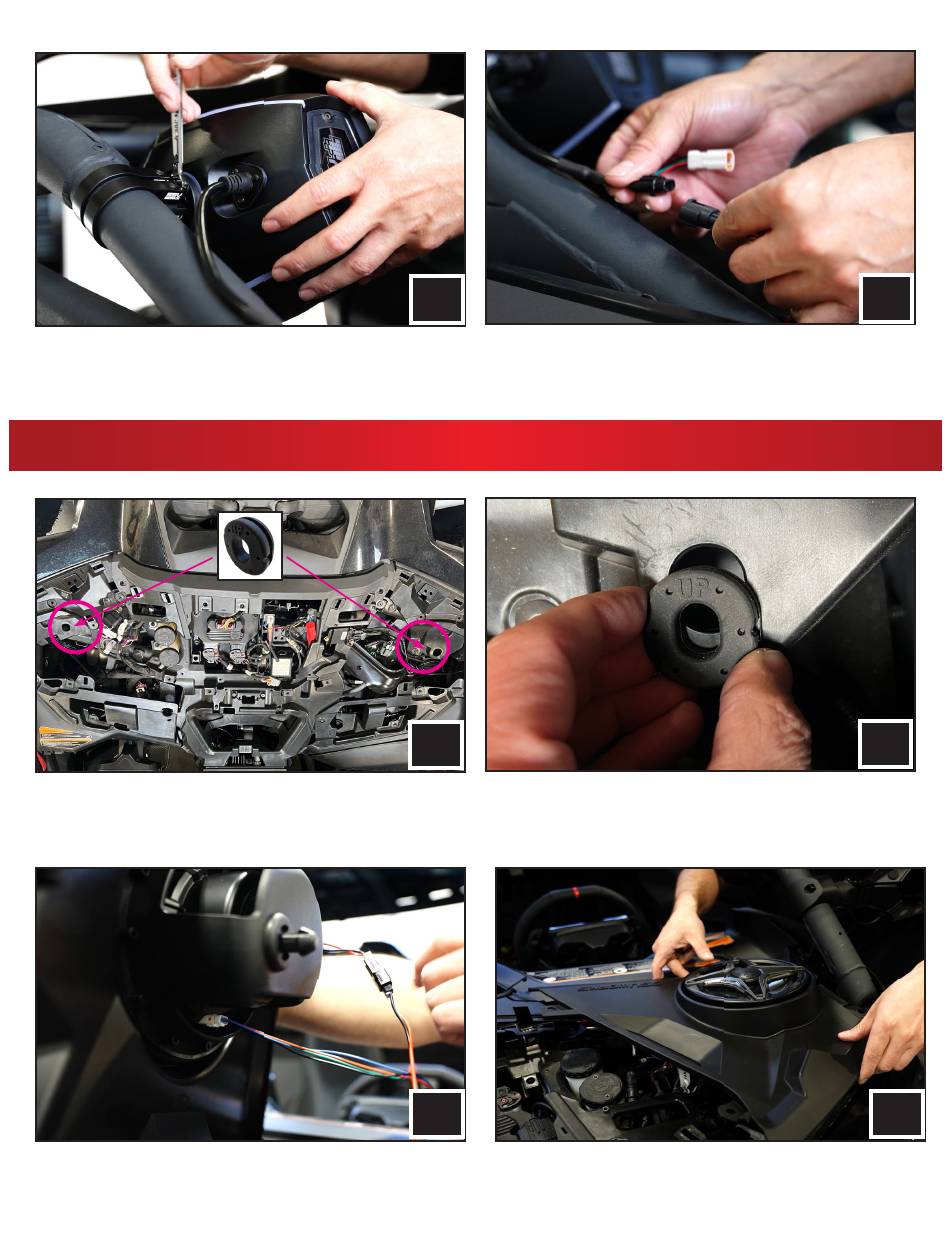

G. Adjust the cage pod to point towards the headrest and tighten the
clamp base bolts.
MAVERICK R DASH PANEL ASSEMBLY
.
A
Insert the speaker bucket grommets (included in the kit) to the
front dashboard support holes encircled above.
B. Plug in audio connectors of B-H1385 to the driver and passenger
side dash panel speakers.
12
G
I. Plug in the speaker pod audio connectors to the B-H2936 rear
speaker Y harnesses.
A
A1. The speaker bucket grommet is designed to be inserted with the
"UP" side on top for ease of the installation.
B
C. Mount the dash panels on the dashboard.
H
A1
C
