MAVERICK R REAR CAGE POD INSTALLATION
The rear cage pods are loaded with 8" Kicker Horn Speakers at the factory for ease of installation.

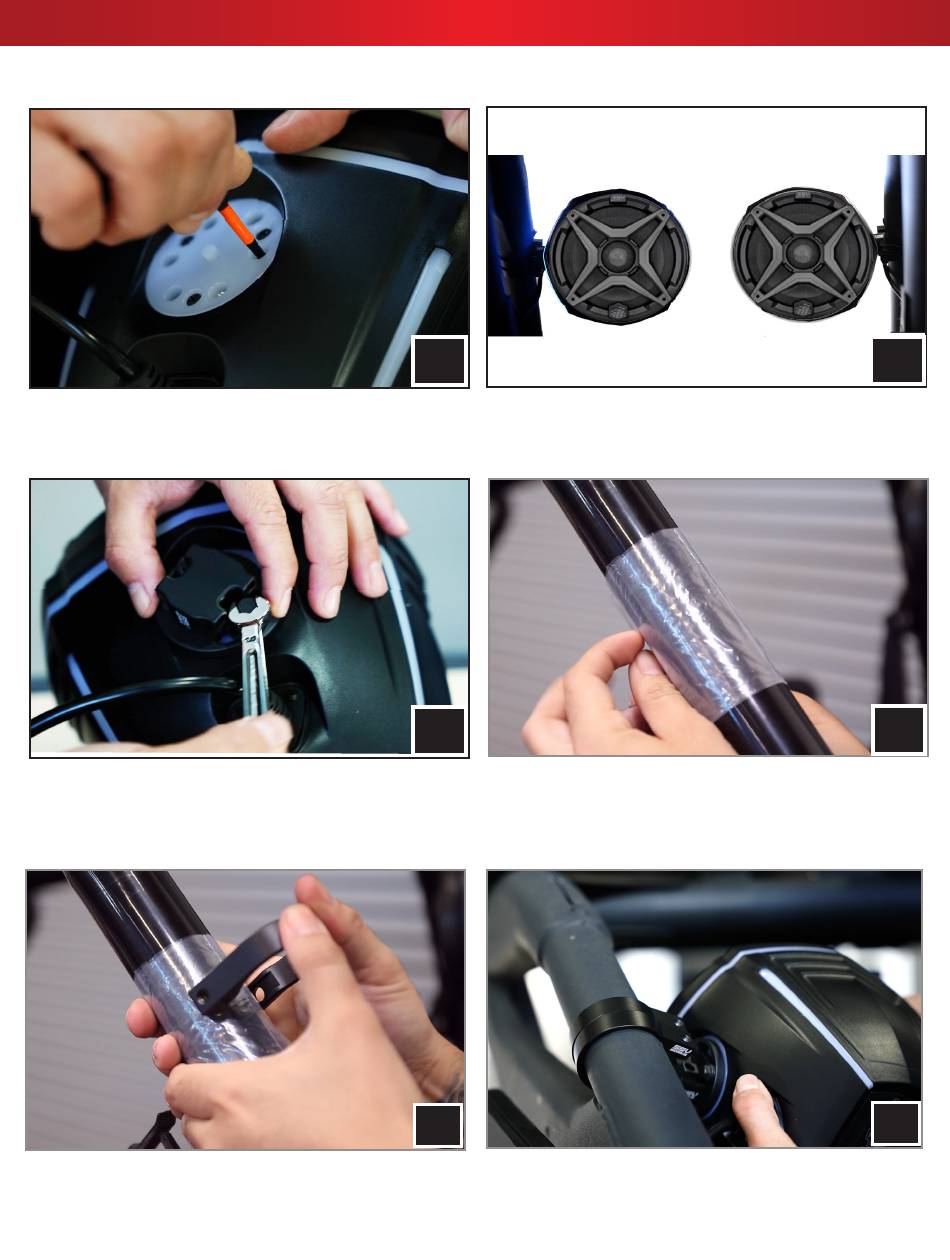

A. Find the best orientation for the speaker on your bar and screw
in the Set Screws on the OPPOSITE holes of where the clamp will
install into.
C. Mount the clamp base using (x2) M6-1X20mm flanged hex head
screws. Do not completely tighten the bolts yet.
E. Slide the (2) clamps onto the tube.
B Pillar
SSV Logo
A
B. Image above is the recommended speaker orientation when viewed
from inside the vehicle.
C
D. Place both ring mounting clamps on the cage using the plastic bag
to prevent scratching, place the cage mount pod in its final mounting
location and
E
F. Secure to the clamps using the two (2) M6 Allen socket head bolts
and washers with a 5mm Allen key.
