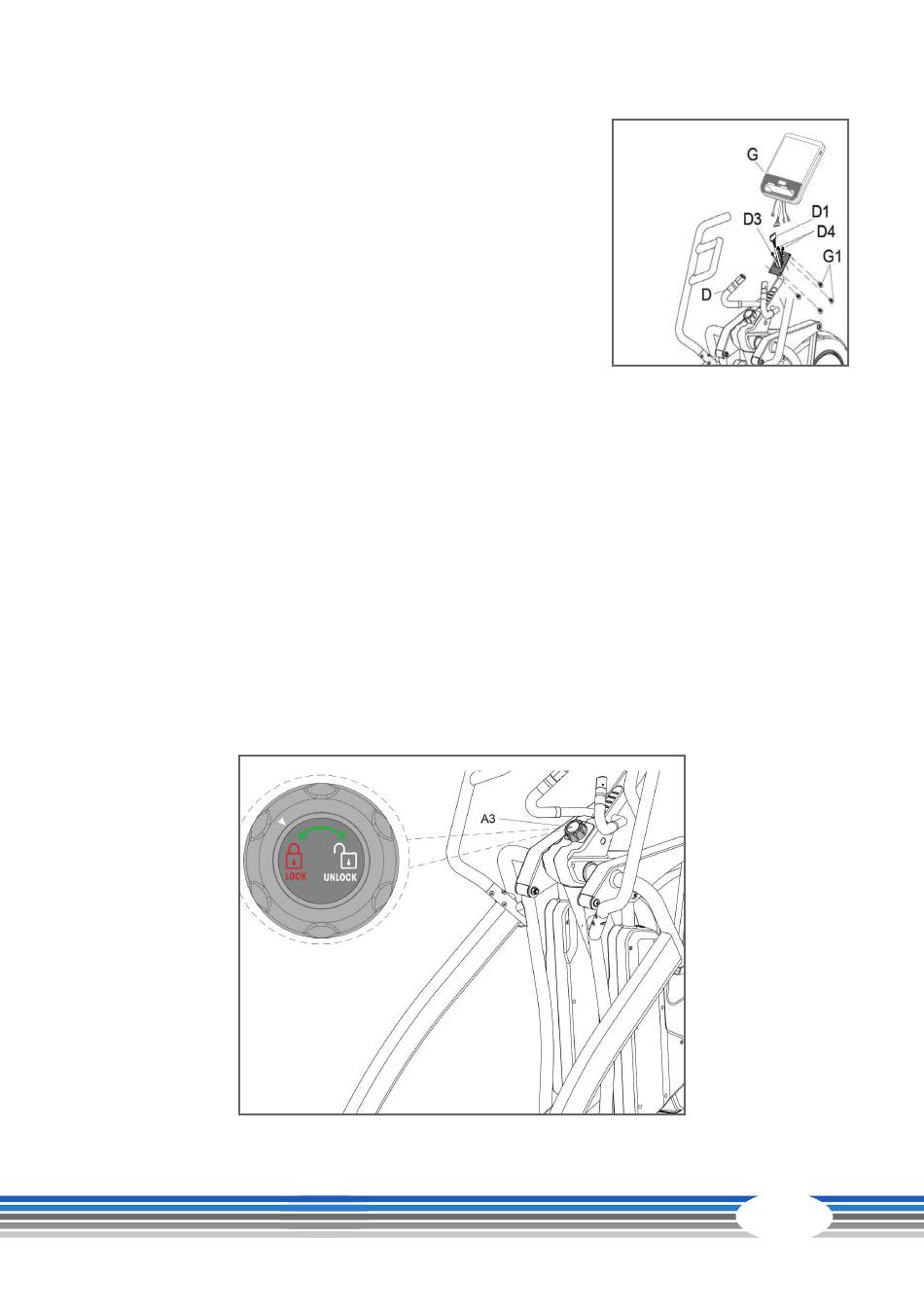

Step 9: Assembly of the console
1. Loosen the four pre-mounted screws (G1) from the console
(G).
2. Connect the console cables (D1, D2, D14 & D16) and the heart
rate cable (D4) from the console mast with the console.
NOTICE
L
Make sure that the cables are properly connected with each
other. Slide the excess cable into the casing and the console
mast (D).
࣑ ATTENTION
Pay attention to not pinch the cables.
3. Mount the console (G) on the console mast (D) with the four screws (G1).
4. Tighten the screws.
Step 10: Locking the pedal bars (B1 and B2)
CAUTION
⚠
+ The pedal bars should always be locked if the equipment is not being used.
+ Never lock the pedal bars if the equipment is still moving, but rather only when the
equipment has come to a complete standstill.
To do this, turn the knob (A3) to the "LOCK" position in order to lock the pedal bars (B1 and B2) and
avoid possible injuries.
