Assembly - Taurus cardiostrong EX90 Touch Assembly And Operating Instructions Manual

2.3

Assembly

Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
NOTICE
L
First loosely screw all parts together and check that they fit properly. Tighten the screws using
the tool only when you are instructed to do so.

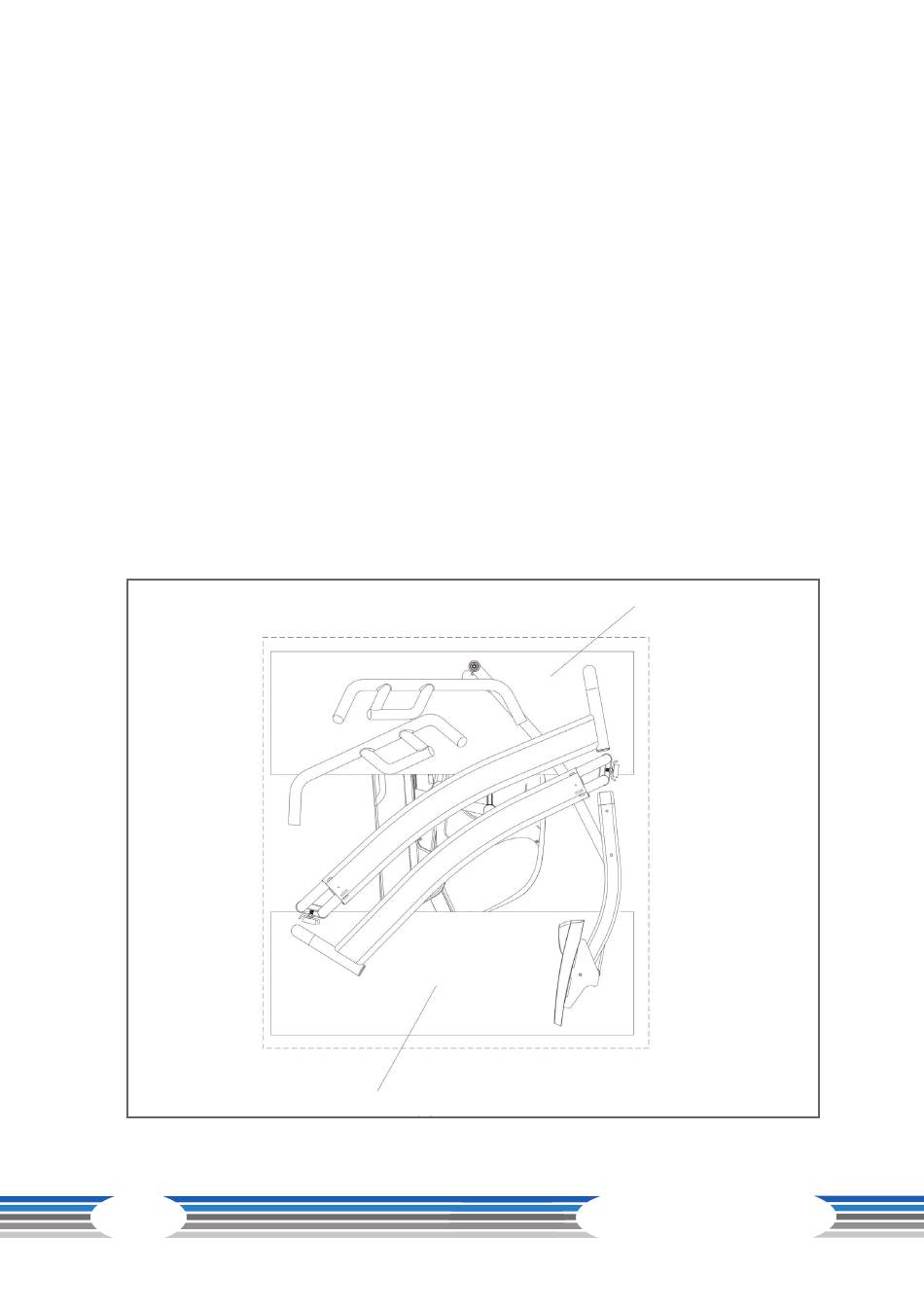

Step 1: Unpacking
1. Remove the upper foam parts (1) and (2) and leave the main frame (A) and lower foam parts (3)
and (4) in the box.
2. Take out the console, console supporting tube, console mast, pedal supporting bars and
hardware bag.
⚠ CAUTION
For safety reasons, the pedal bars are just to be released with the respective control knob once
you are asked to do so at the end of the instructions.
14
Polysterene (2)
Polysterene (1)
EX90 Touch
