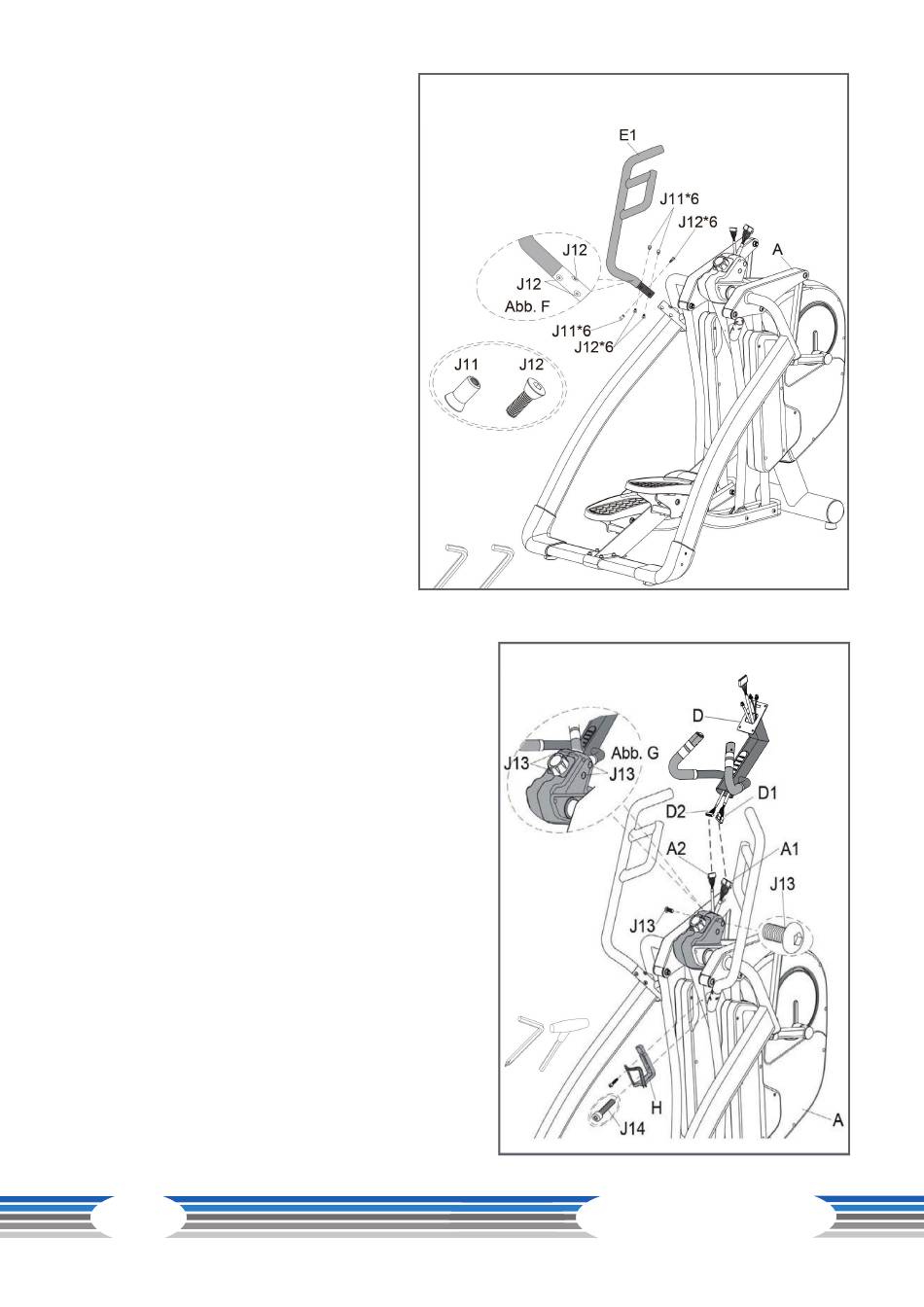

Step 7: Assembly of the handles
1. Loosen the six pre-mounted screws
(J12 and J11) from the left handle
(E1).
2. Connect the left handle (E1) with
the main frame (A) by tightening all
screws (J12 and J11) with two 6mm
Allen keys; see figure F.
3. Repeat the process for the right
handle (E2).
Step 8: Assembly of the console mast and the
bottle holder
1. Connect the cable (D1 and D2) from the
console mast (D) with the cables (A1 and A2)
from the main frame (A).
࣑ ATTENTION
Pay attention to not pinch the cables.
2. Mount the console mast (D) on the main frame
(A) with two screws (J3) and two pre-mounted
screws (J13); see figure G.
3. Mount the bottle holder (H) on the main frame
(A) with two screws (J14).
4. Tighten the screws.
