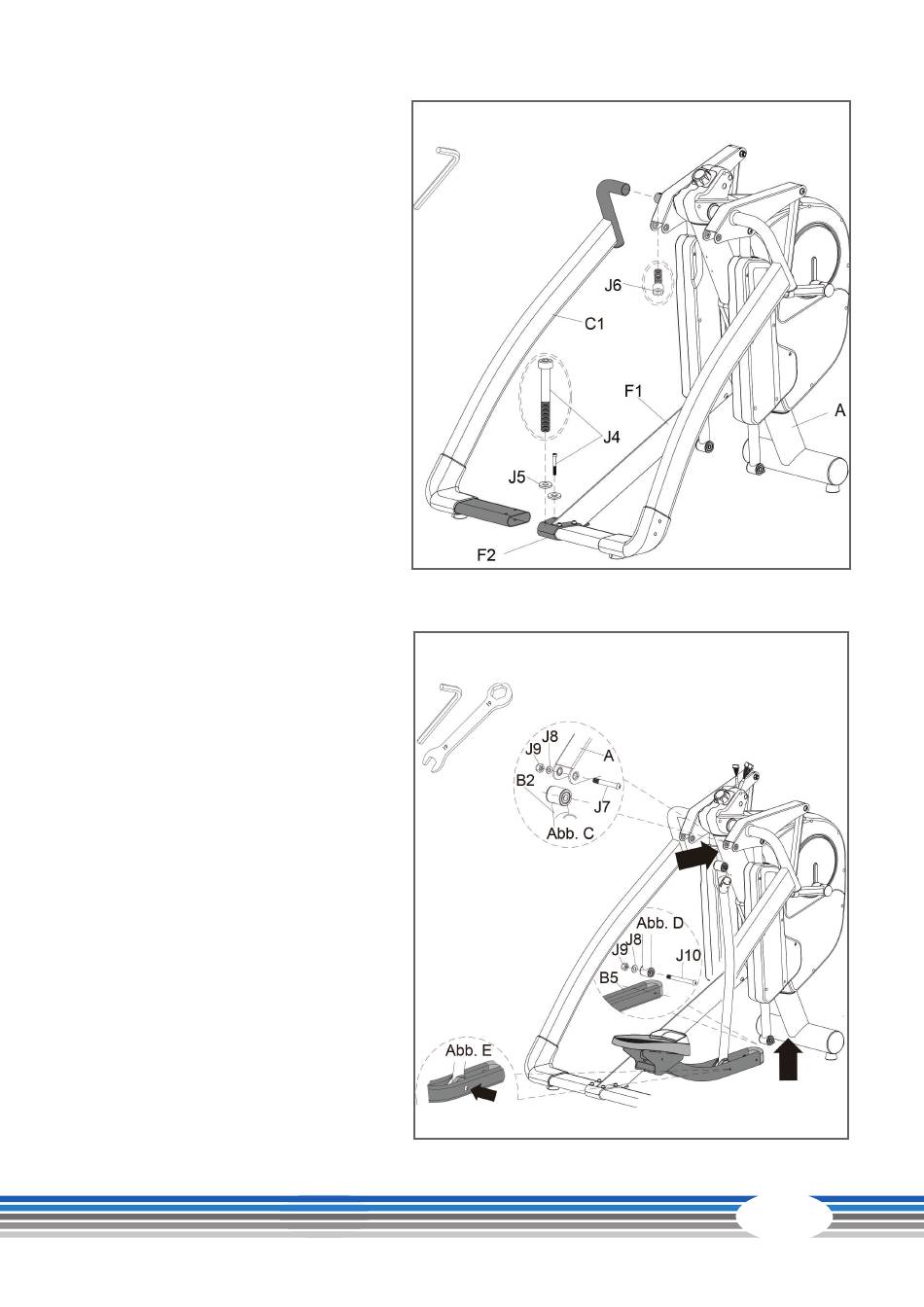

Step 5: Assembly of the left side bar (C1) and covers
1. Connect the left side bar (C1) on
the main frame (A) with a screw (J6)
on top and two screws (J2) and the
bracket (F2) on the bottom.
2. Now you can tighten all of the
screws from the previous steps (J6,
J4).
Step 6: Assembly of the pedal bars
1. Connect the right pedal bar (B2) on
the top with the main frame (A) and
mount it with the nuts (J9), washers
(J8) and screws (J3) as in figure C.
2. Mount the pedal bar on the bottom
of the main frame with a bolt (J5),
a washer (J8) and a nut (J9) as in
figure D.
3. Tighten the bolts (J5) and the nuts
(J9); see figure E.
4. Repeat the process for the left pedal
bar (B1).
