Step 4:

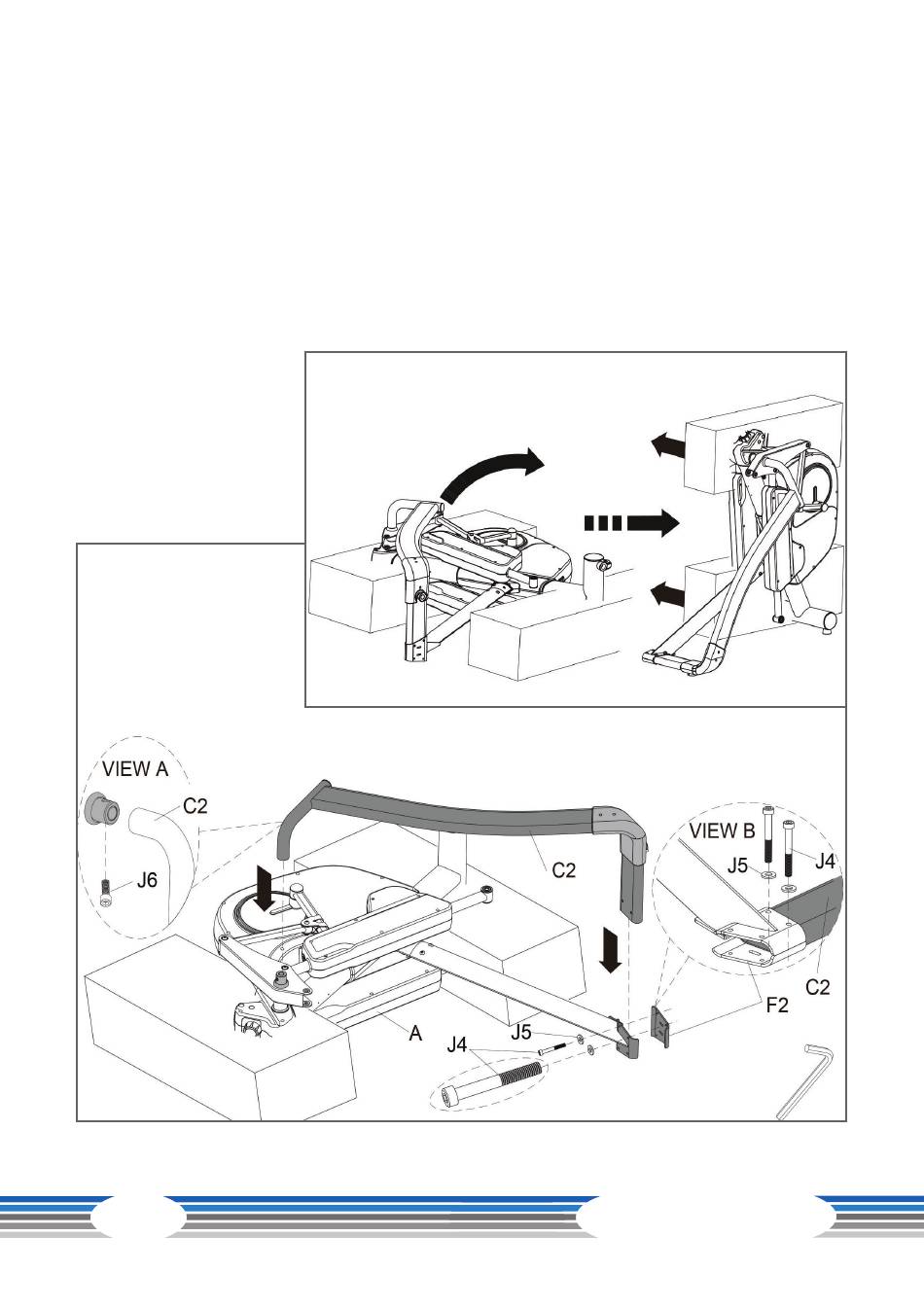

Assembly of the right side bar (C2)
1.
Mount the right side bar (C2) on the main frame (A) with a screw (J8) on top (figure A) and two
screws (J5) including washers (J5) with the bracket (F2) on the bottom (figure B).
࣑ ATTENTION
Do not tighten the screws (J6 and J4) completely yet.
2.
Raise the main frame (A) with two people and remove the foam (see figure on the right).
