EK-Quantum Momentum2 Quad RAM Module Set User Manual page 12

CONNECTING THE D-RGB LED STRIP
TESTING THE LOOP
To make sure the installation of EK components was successful, we
recommend you perform a leak test for 24 hours. When your loop
is complete and filled with coolant, connect the pump to a PSU
outside of your system. Do not connect power to any of the other
components. Turn on the PSU and let the pump run continuously.
It is normal for the coolant level to drop during this process as air
collects in the distribution plate. Inspect all parts of the loop, and
in the eventuality that coolant leaks, fix the issue and repeat the
testing process. Ensure that all hardware is dry before the system is
powered on in order to prevent any damage.
D-RGB HEADER
RGB HEADER
STEP 1
- 12 -
STEP 1

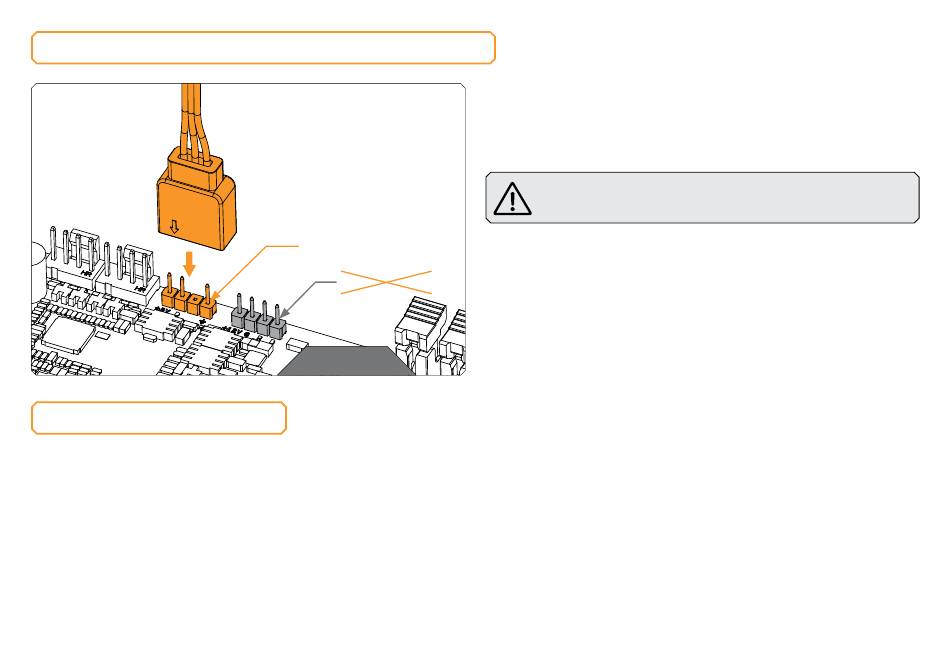

Plug the 3-pin D-RGB connector from the RAM water block into a
D-RGB header on your motherboard or controller. The LED strip
will only work if the pin layout on the header is as follows: +5V,
Digital, Empty, Ground.
Incorrect installation or installation of the incorrect header
could result in damage to the LED strip or the header itself.
