PREPARING AND INSTALLING THE EK-Quantum Momentum

THERMAL PAD F 1.0 mm
STEP 1
EK-Quantum
Momentum

RAM WB

2
STEP 2
STEP 1

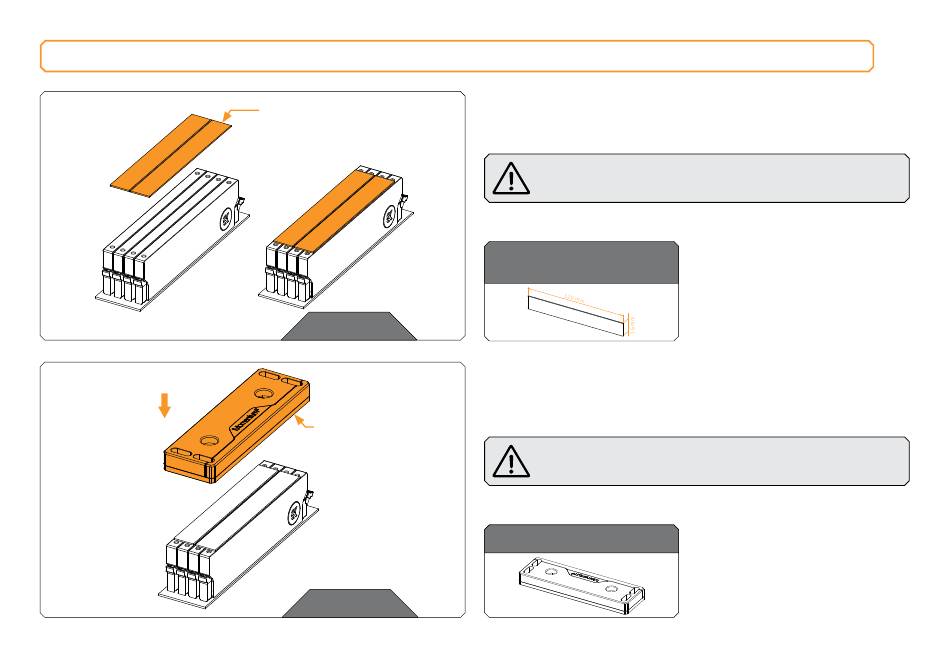

After securing Memory modules, position two (2) provided Thermal
Pad F 1.0 mm on the shown places.
Remove the protective foil from both sides of the thermal
pad before installation.
For this step, you will need:
Thermal Pad F 1.0mm
(120x16 mm) (2 pcs)
STEP 2
Carefully position the EK-Quantum Momentum
Thermal Pads. During this process, make sure you have aligned the
mounting holes of the Memory modules with the holes of the water block.
Before placing the Water Block, make sure all the Thermal
Pads are placed correctly!
For this step, you will need:
EK-Quantum Momentum RAM WB
2
