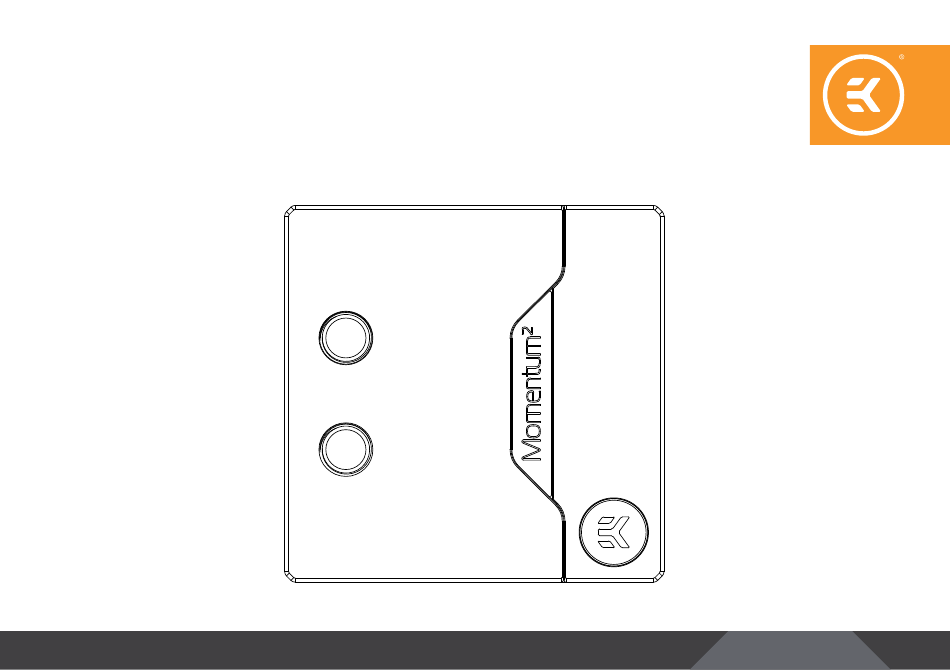

- Page 1 EK-Quantum Momentum ROG Strix Z790-I D-RGB USER GUIDE...
- Page 2 Please note the installation of the product is intended to be undertaken by an adequately trained and experienced person. You are installing the product at your own risk. If you are not properly trained or experienced or feel unsure about the installation procedure, please refrain from installing the product yourself and contact our tech support for assistance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING THE MOTHERBOARD INSTALLING AND CLEANING THE CPU APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK CONNECTING THE D-RGB LED STRIP TESTING THE LOOP WARRANTY SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Allen Key 2 mm (1 pc) Allen Key 2.5 mm (1 pc) EK-Quantum Momentum ROG Strix Z790-I D-RGB Thermal grease (1 pc) - 4 -... -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 33 mm 26 mm 22.5 mm 94.5 mm 20.5 mm 79.5 mm - 5 -... -
Page 6: Technical Specifications And Water Block Parts
TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Technical Specification: Dimensions (L x H x W): 94.5 x 94.5 x 34mm D-RGB cable length: 500 mm D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground Position Description Quantity 106431 Mid Plate (Ni) 104913 Mounting Screw (Ni) 100747 Spring M3 x 10 mm... -
Page 7: Preparing The Motherboard
PREPARING THE MOTHERBOARD STEP 1 INSTALLING AND CLEANING THE CPU Non-abrasive Cloth If already installed, please remove the motherboard from your computer and place it on an even surface. Remove the CPU(IHS) protective plastic and place the CPU(IHS) in the socket. Wipe the IHS clean using a non-abrasive cloth or Q-tip as shown in the illustration. -
Page 8: Installing The Water Block
INSTALLING THE WATER BLOCK STEP 1 Unscrew the pre-installed backplate from the backside of the Water block using an Allen Key 2.5 mm and save it for the later steps. STEP 1 STEP 2 Before placing the water block, it is mandatory to remove the protective foil from the backside. - Page 9 STEP 3 Carefully place the CPU water block onto the motherboard and align four (4) mounting screws with four (4) holes on the motherboard. Hold the water block and motherboard and turn them upside down. STEP 3 STEP 4 TOP OF THE After placing the water block, the stored backplate must be attached MOTHERBOARD MAX TORQUE:...
-
Page 10: Connecting The D-Rgb Led Strip
STEP 5 With EK-Momentum series water blocks, it is mandatory to use the bottom port as the INLET. Mixing the ports may result in poor OUTLET thermal performance of the water block. PORT Tighten the fittings in a clockwise direction until the gasket underneath is compressed. -
Page 11: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 12: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
