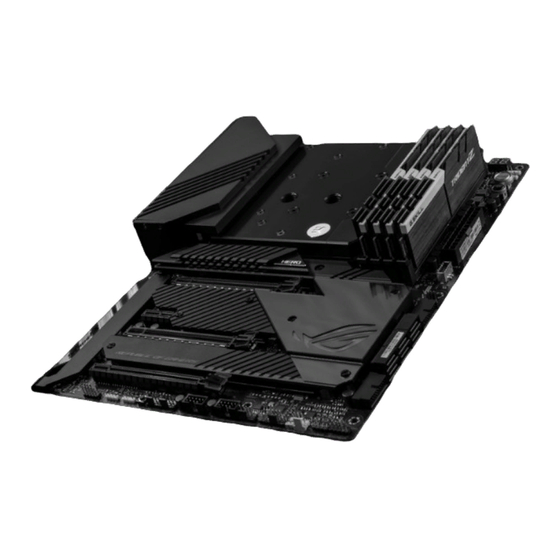

- Page 1 EK-Quantum Momentum ROG Maximus XIII Hero D-RGB MONOBLOCK USER GUIDE...
- Page 2 This product is intended for installation by expert users only. Please Before you start using this product, please follow these basic guidelines: consult with a qualified technician. Improper installation may result in damage to your equipment. EK assumes no liability whatsoever, Carefully read the manual before beginning with the expressed or implied, for the use of this product or its installation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS REQUIRED TOOLS MONOBLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND PRODUCT PARTS PREPARING YOUR MOTHERBOARD REMOVING THE PLASTIC I/O COVER REMOVING THE STOCK COOLER CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND INSTALLING THE MONOBLOCK INSTALLING THE I/O COVER INSTALLING FITTINGS AND TUBING CONNECTING THE D-RGB LED STRIP TESTING THE LOOP... -
Page 4: Box Contents
PA M4 Washer 0.8 mm (5 pcs) PA M2.5 Washer 0.5 mm (5 pcs) PA Self Adhesive M2.5 PVC Washer 0.7 mm (5 pcs) EK-Quantum Momentum ROG Maximus XIII Hero D-RGB Thermal Pad F 1.0 mm (3 pcs) M4x8 DIN7984 Screw (5 pcs) M2.5 x 5 AX1 Screw (5 pcs) -
Page 5: Required Tools
REQUIRED TOOLS Phillips Head Screwdriver Scissors MONOBLOCK DIMENSIONS 122 mm 68 mm 83 mm 46 mm - 5 -... -
Page 6: Technical Specifications And Product Parts
TECHNICAL SPECIFICATIONS AND PRODUCT PARTS Technical Specification: Dimensions (monoblock) (L x H x W): 122 x 26.5 x 135 mm D-RGB (Adressable RGB) Cable Length: 500 mm D-RGB LED Count: 6 (Plexi version) D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground) Position EAN Description Quantity... -
Page 7: Preparing Your Motherboard
PREPARING YOUR MOTHERBOARD REMOVING THE PLASTIC I/O COVER Unscrew the two (2) bottom screws to remove the plastic I/O cover. Unscrew the two pairs of screws holding the side covers in place. Put the screws aside as you will have to reattach the covers later. Remove the two standoffs from the I/O cover. -
Page 8: Removing The Stock Cooler
REMOVING THE STOCK COOLER Unscrew the four (4) screws. These must be removed in order to remove the factory-installed MOSFET cooling solution from the motherboard. After removing the screws, carefully detach the stock cooler and pre-applied thermal pads. EK provides replacement thermal pads with the water block (see Chapter: CUTTING AND PLACING THERMAL PADS). -
Page 9: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS Thermal Pad F – 1.0 mm Your monoblock comes with thermal pads that need to be trimmed to fit the voltage regulation area (MOSFET) on the motherboard’s circuit board. 120 mm 1 mm Place larger strips of thermal pads over the marked area and make sure Thermal Pad F 1.0 mm all MOSFET and inductor chips are covered, as shown in the picture. -
Page 10: Applying Thermal Compound
APPLYING THERMAL COMPOUND Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound) on the CPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even in thickness over the entire surface of the IHS. Use a plastic spatula (a credit card works great) to spread the thermal compound across the IHS evenly. -
Page 11: Installing The Monoblock
INSTALLING THE MONOBLOCK Carefully place your EK-Quantum Momentum ROG Maximus XIII Hero water block on the motherboard or vice versa, as shown in the picture. Make sure the holes are aligned. Before you fasten the screws, make sure the mounting holes on the motherboard’s circuit board are aligned with the water block. -
Page 12: Installing The I/O Cover
INSTALLING THE I/O COVER Make sure the factory standoffs are attached to the enclosed I/O cover before proceeding. Reattach the LED module to the cover. FACTORY Place the I/O cover on the motherboard and attach the two side SCREW covers with the factory screws. Turn the motherboard over and use the original two (2) screws to attach the I/O cover to the motherboard. -
Page 13: Installing Fittings And Tubing
INSTALLING FITTINGS AND TUBING For the EK-Quantum Momentum ROG Maximus XIII Hero D-RGB TUBING monoblock to operate properly, the G1/4 port nearest to the right side of the water block (and the EK badge) MUST BE USED AS THE INLET PORT. -
Page 14: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 15: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
