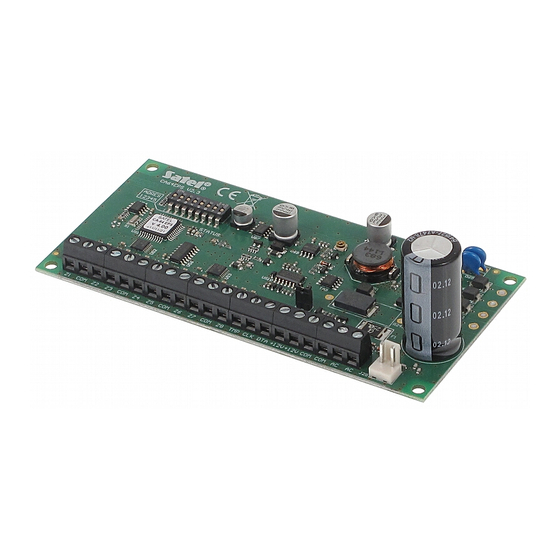

The CA-64 EPS expander is a device designed to work together with the CA-64 alarm control
panel. It allows extension of the alarm system by eight zones having identical features as the
zones of the control panel main board. NO and NC type detectors may be connected to the
expander. The zones can be configured to work with a single parameter (EOL - the circuit
closed with a 2.2kΩ resistor) and with a double parameter (2EOL - the circuit closed with two
1.1kΩ resistors). Each of the zones can be individually programmed and assigned one of a few
dozen types of response to violation. The module has a built-in impulse power supply of 2.2A
capacity, as well as supply input short-circuit protection and battery charging and testing circuit
with disconnection of discharged battery.

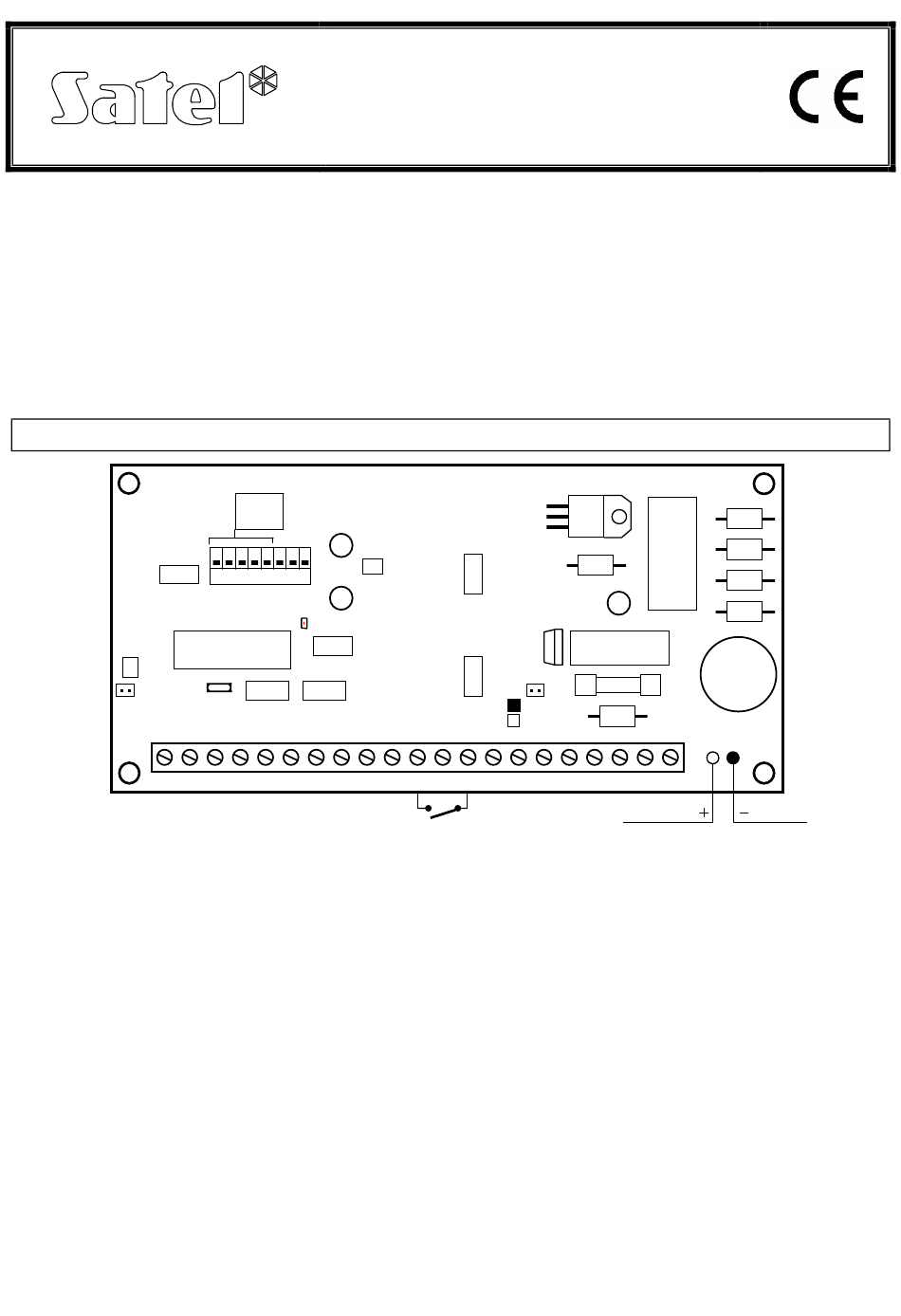

MODULE DESCRIPTION
CA-64EPS
RESET
Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8 TMP CLK DTA+12V+12V COM COM AC AC
EXPANDER TERMINALS:
Z1 do Z8
- zone line
COM
- ground
TMP
- expander anti-tampering circuit input (NC)
CLK, DTA - expander bus
+12V
- power supply input
AC
- module power supply 17...24V AC (from mains transformer secondary winding)
The minimum input voltage at the maximum load of the transformer by the module must
not drop below 16V (AC).
The set of switches situated on the board is intended to set up the individual address of the
expander.
On the board there are Installed two LED controls:
1. The LED situated next to the address switches signals communication process between the
control panel and the expander. During normal operation, the LED blinks with a changing
frequency.
2. The LED situated next to the pins designated as J28 is on when the battery status is being
tested by the module and when discharged battery is being charged.
During testing, the power supply voltage is reduced by the processor, and the consumers
are supplied from the battery. The testing takes place every 4 min. and lasts less than 20 s.
®
ADRES
12345
ON
1 2 3 4 5 6 7 8
ZONES EXPANDER
WITH POWER SUPPLY
CA-64 EPS
J28
350mA
700mA
EKSPANDER HOUSING
ANTI-TAMPERING CONTACT
-
1 -
5W0.1ΩJ
T3.15A
(RED)
(BLACK)
BATTERY
ca64eps_e 06/04
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Satel CA-64 EPS
Summary of Contents for Satel CA-64 EPS
- Page 1 CA-64 EPS ca64eps_e 06/04 The CA-64 EPS expander is a device designed to work together with the CA-64 alarm control panel. It allows extension of the alarm system by eight zones having identical features as the zones of the control panel main board. NO and NC type detectors may be connected to the expander.
- Page 2 The J28 pins serve to set up the battery charging current: 350mA - pins shorted, 700mA - pins open. Two leads (red and black) serve to connect the battery. The RESET pins are used in production process and should not be shorted. The TMP input is intended for connecting the expander housing anti-tampering contact, and, if unused, it should be shorted to ground.
- Page 3 Addresses of expanders connected to one bus may not be repeated, while the sequence of addressing is optional. 4. Connect the leads of detectors and housing anti-tampering contact to the inputs. Details of the cable connections are presented in the CA-64 control panel manual “System Description and Installation”.
- Page 4 Current efficiency ........................2.2A Battery charging current (switch-over) ............... 350mA or 700mA Dimensions ......................... 68x140 mm Latest EC declaration of conformity and product approval certificates can be downloaded from our Web site www.satel.pl SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel.
