Satel CA-64 PP Manual

The CA-64 PP expander (referred to as the subpanel) is a device designed to
interface with the CA-64 alarm control panel. It makes possible extension of the alarm
system by eight zones and eight outputs (4 relay outputs and 4 OC type outputs).
Features of the zones and functional characteristics of the outputs are identical as
those of the main board of the alarm control panel.
NO and NC type detectors can be connected to the expander inputs. The zones can
be configured to work with a single parameter (EOL - the circuit closed with a 2.2kΩ
resistor) and with a double parameter (2EOL - the circuit closed with two 1.1kΩ
resistors). Each of the zones can be individually programmed and assigned one of
a few dozen types of response to violation. Furthermore, every zone can be
individually programmed with possible selection of one of a few dozen types of output
signals.
The module is fitted with a built-in impulse power supply unit of 2.2A capacity. It also
has a short-circuit protection of the supply output as well as battery charging and
testing circuits with disconnection of discharged battery.

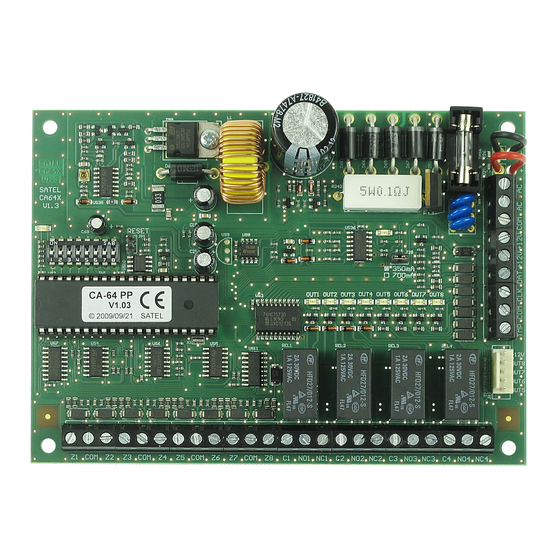

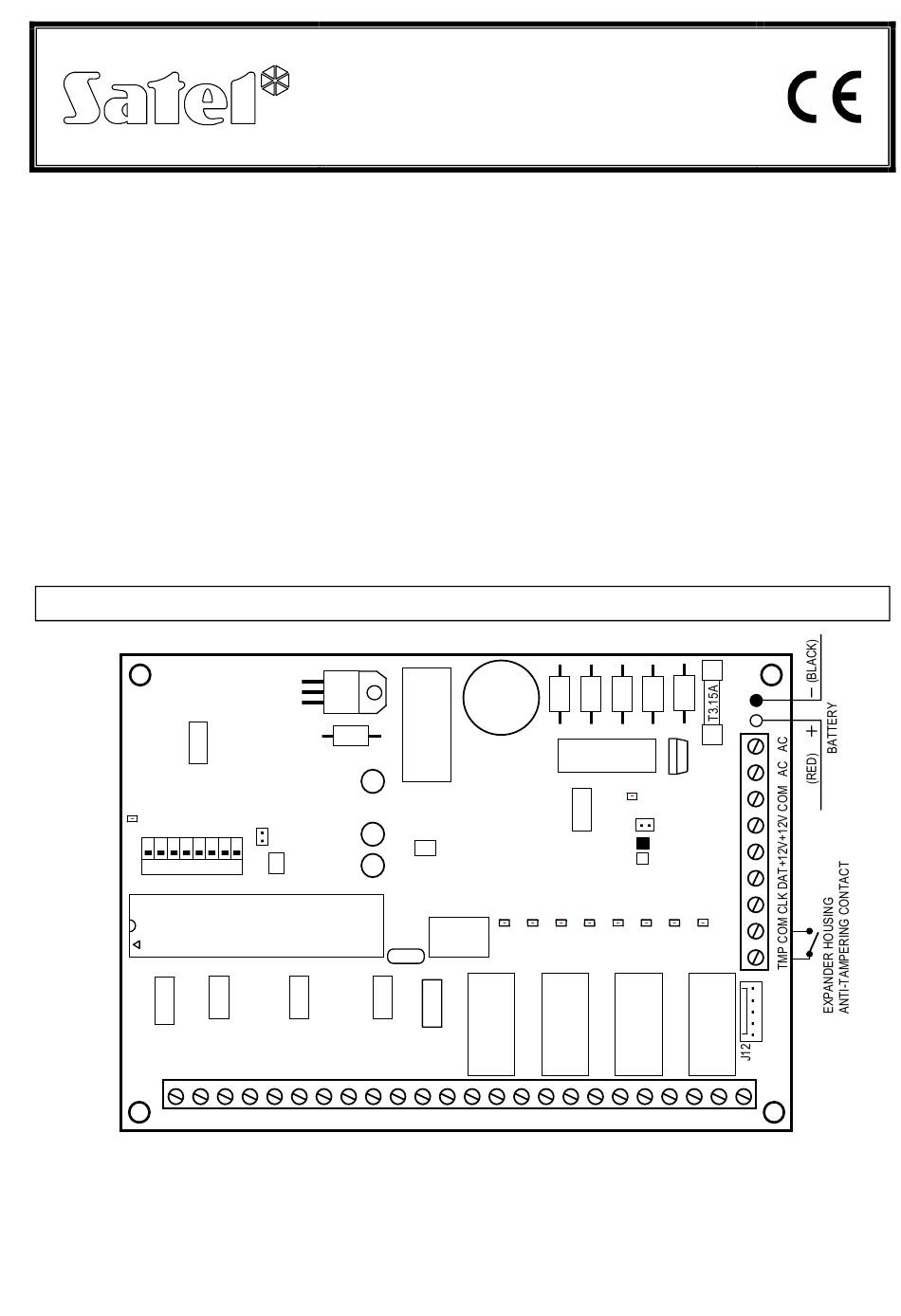

MODULE DESCRIPTION

D9
ON
1 2 3 4 5 6 7 8
Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8 C1 NC1 NO1 C2 NC2 NO2 C3 NC3 NO3 C4 NC4 NO4
ZONES & OUTPUTS EXPANDER
®
RESET
CA-64 PP
WITH POWER SUPPLY
CA-64 PP
SUBPANEL
5W0.1ΩJ
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
- 1 -
ca64pp_e 06/04
D10
J28
350mA
700mA
+12V
OUT8
OUT7
OUT6
OUT5
