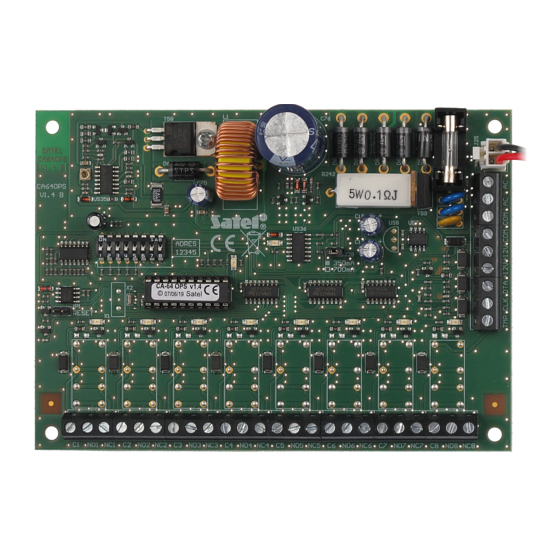

The CA-64 OPS output expander with power supply is designed for operation in intruder alarm
systems. It is capable of interfacing with the SATEL made CA-64, INTEGRA and VERSA control
panels. The device enables expansion of the system by 8 programmable outputs. It has a built-in
2.2 A switching mode power supply with battery backup. It comes in three versions:
−
CA-64 OPS-OC – 8 OC type outputs;
−
CA-64 OPS-R – 8 relay outputs;
−
CA-64 OPS-ROC – 4 OC type outputs and 4 relay outputs.
1. Description of electronics board
C1
NO1 NC1 C2 NO2 NC2 C3 NO3 NC3 C4 NO4 NC4 C5 NO5 NC5 C6 NO6 NC6 C7 NO7 NC7 C8 NO8 NC8

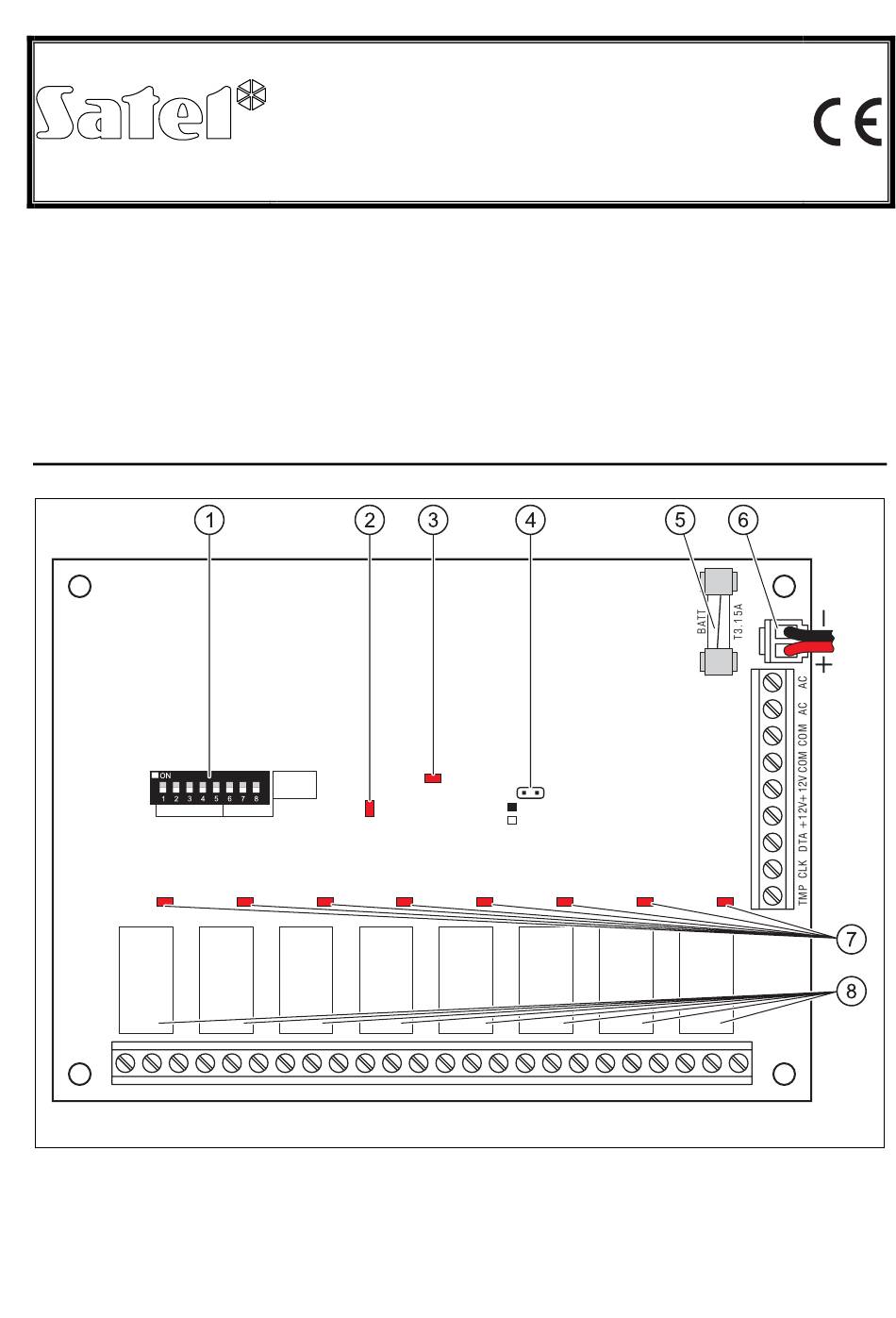

Fig. 1. View of the CA-64 OPS-R expander electronics board.
Explanations for Fig. 1:
1
- a set of DIP-switches for setting individual address of the module (see section
2
- LED indicating communication with the control panel:
− LED is blinking – data exchange with the control panel;
− LED is lit – no communication with the control panel.
OUTPUT EXPANDER WITH POWER SUPPLY
CA-64 OPS-OC
®
CA-64 OPS-ROC
A D R E S
1 2 3 4 5
CA-64 OPS-R
350mA
700mA
ca64ops_en 06/09
DIP-
).
SWITCHES
Advertisement
Table of Contents
Related Manuals for Satel CA-64 OPS-OC
Summary of Contents for Satel CA-64 OPS-OC
- Page 1 The CA-64 OPS output expander with power supply is designed for operation in intruder alarm systems. It is capable of interfacing with the SATEL made CA-64, INTEGRA and VERSA control panels. The device enables expansion of the system by 8 programmable outputs. It has a built-in 2.2 A switching mode power supply with battery backup.
- Page 2 NC is shorted to common terminal C. - relays – all relays are only installed in the CA-64 OPS-R version. In the CA-64 OPS-ROC version, the relays are installed for outputs from 5 to 8. In the CA-64 OPS-OC version, the relays are not installed.
- Page 3 SATEL CA-64 OPS 15 (0Fh) 22 (16h) Fig. 2. Examples of address setting (address 15 (0Fh) is required for interfacing with VERSA series control panels). 2. Installation and start-up All connections should only be made when power supply of the alarm system is disconnected.
-
Page 4: Specifications
Weight CA-64 OPS-OC....................CA-64 OPS-R....................CA-64 OPS-ROC ................... Latest EC declaration of conformity and product approval certificates are available for downloading on website www.satel.eu SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl...
