The CA-64 SR expander for proximity card readers is a device designed to work together
with the CA-64 and INTEGRA alarm control panels. The expander supports the SATEL made
CZ-EMM / CZ-EMM2 / CZ-EMM3 / CZ-EMM4 proximity card readers. The expander can
simultaneously interact with two readers of this type. The expander function is to control the
access to and operate the electromagnetic door lock (or to control the operation of another
device requiring the access control). This manual is drawn up for the expander with PCB
version 1.6 and firmware version 2.01 or later.
Note: Full use of all the options available in the module is only possible when working with
the INTEGRA control panels.
1. Description of electronics board
+GA SIGA COM BPA LD1A LD2A DISA
Legend:
1 – LED SATUS to indicate the process of communication between control panel and
expander:
− blinking – data exchange with the panel;
− ON – no data exchange with the panel (the module and the control panel connecting
wire is damaged, identification of module is not carried out or the STARTER program
is started in the control panel).
2 – package of DIP switches designed for setting individual address of the module and for
selecting the type of supported readers (see: DIP
EXPANDER FOR PROXIMITY
®
TMPA +GB SIGB COM BPB LD1B LD2B DISB

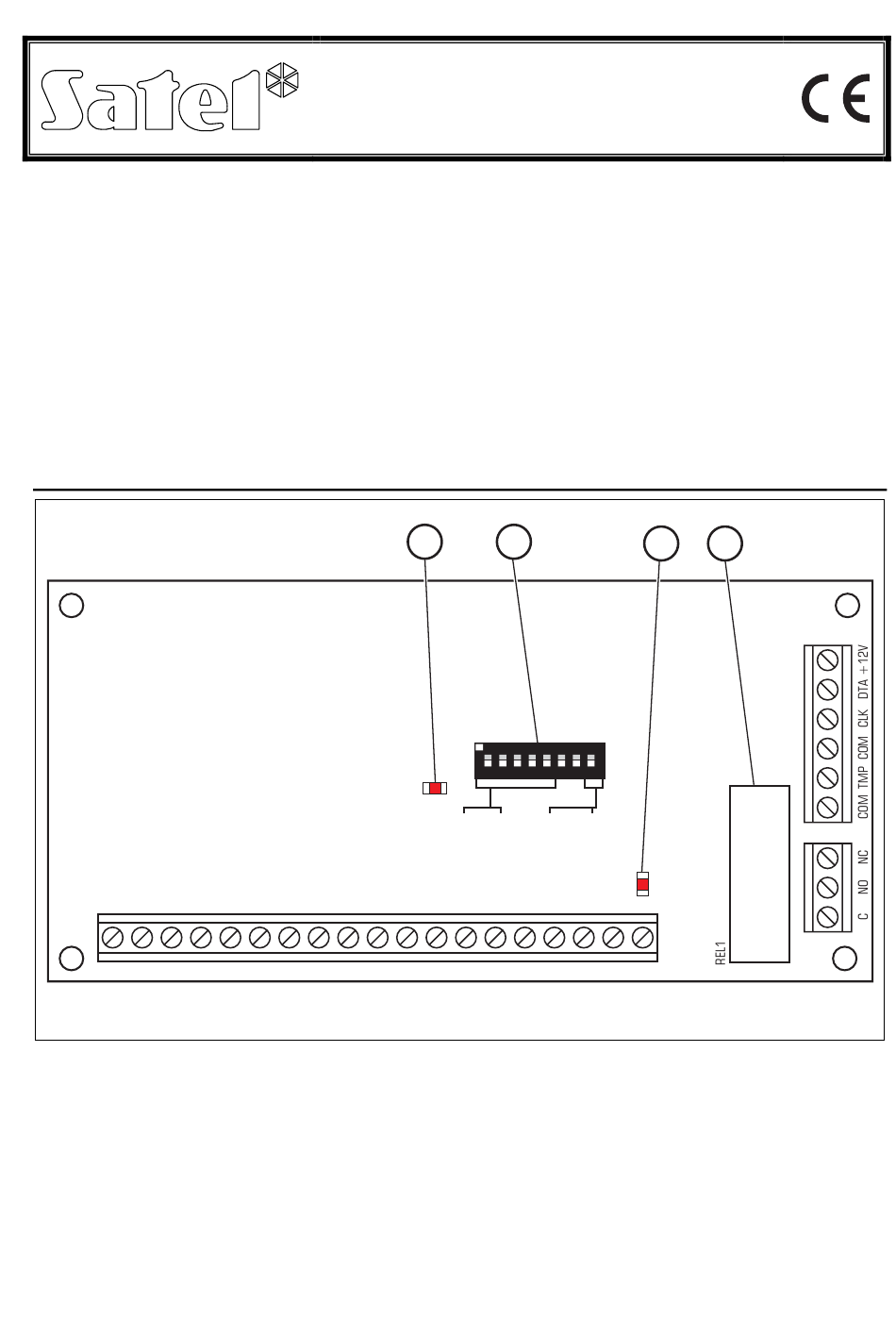

Fig. 1. Schematic view of the module electronics board.
CARD READERS
CA-64 SR
1 2
ON ECE
1 2 3 4 5 6 7
STATUS
READER
ADRES
12345 TYPE
TMPB ON
SWITCHES
ca64sr_en 07/09
3 4
8
IN COM
).
