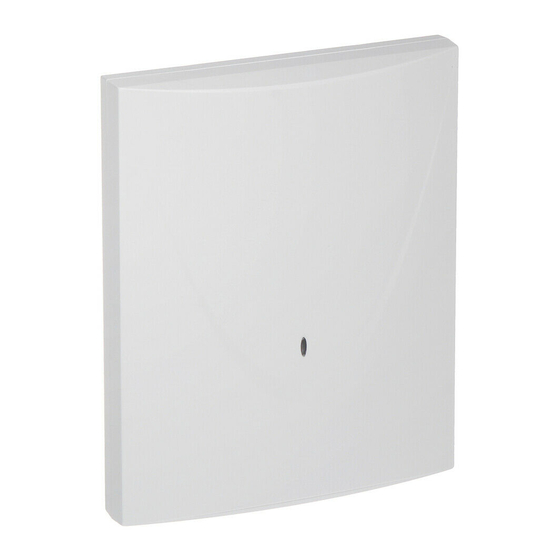

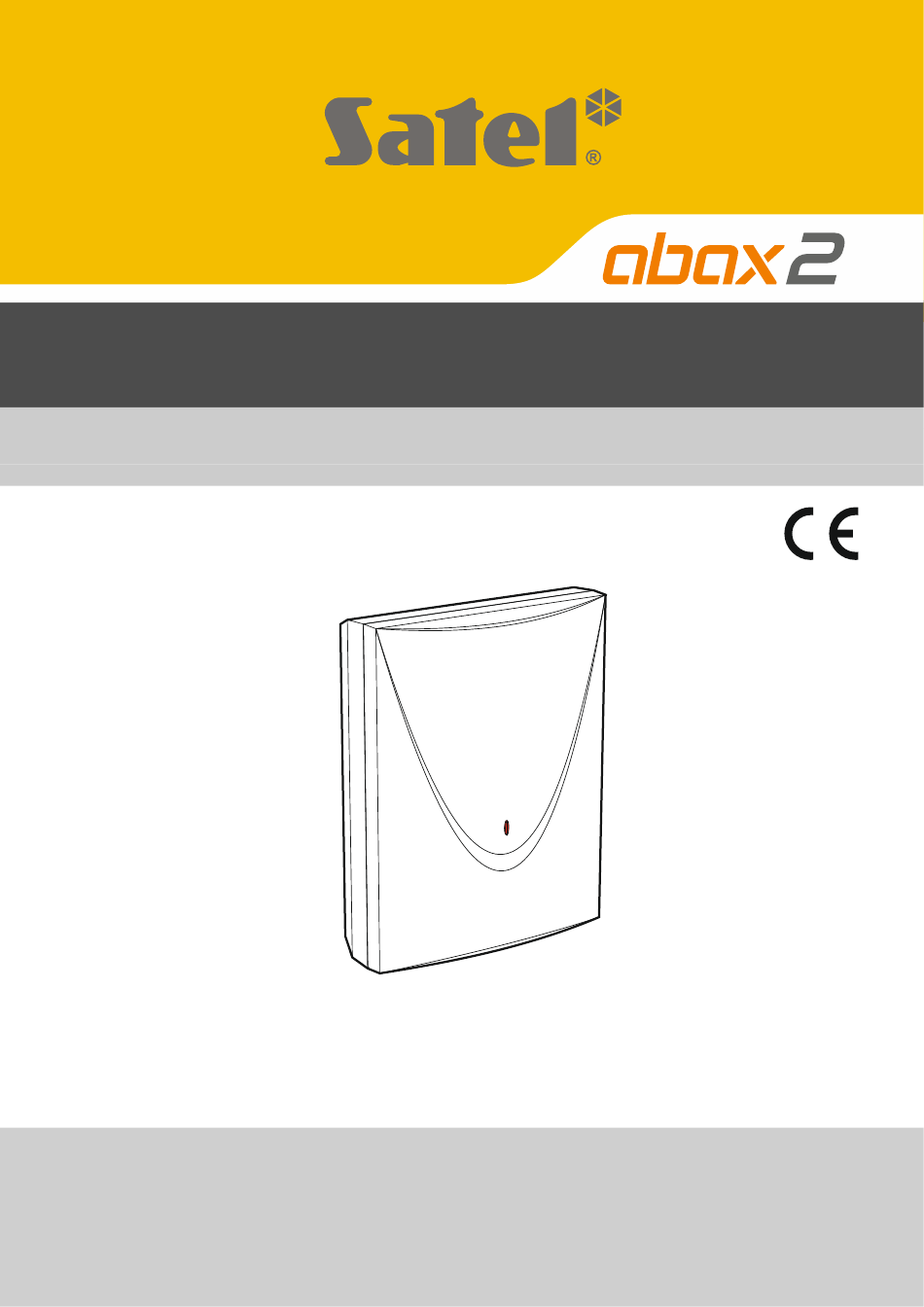

- Page 1 ACX-220 Hardwired zone / output expander Firmware version 1.00 acx-220_en 08/19 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 The rating plate of the device is located on the enclosure base. SATEL aims to continually improve the quality of its products, which may result in changes in their technical specifications and software. Current information about the changes being introduced is available on our website.
-
Page 3: Specifications
The ACX-220 expander enables hardwired devices (detectors, sirens, etc.) to be used in a wireless system. The expander is designed for use as part of the ABAX 2 / ABAX two-way wireless system. This manual applies to the expander with firmware version 1.00, which is supported by: ... - Page 4 Enclosure dimensions ................. 126 x 158 x 32 mm Weight..........................204 g 3. Electronics board APS connector for a SATEL power supply unit (e.g. APS-412). LED indicator which flashes when the communication with a controller takes place. LEDs indicating the status of the relay outputs: OFF –...
- Page 5 4. Installation Disconnect power before making any electrical connections. The ACX-220 expander should be installed indoors, in spaces with normal air humidity. Remember that thick walls, metal partitions, etc. will reduce the range of the radio signal. It is recommended that the expander be mounted high above the floor. This will allow you to get a better range of radio communication and avoid the risk of the expander being accidentally covered by people moving around the premises.
- Page 6 ACX-220 SATEL 9. Secure the enclosure base to the wall with wall plugs (screw anchors) and screws. Proper wall plugs must be selected for the type of mounting surface (different for concrete or brick wall, different for plaster wall, etc.).
