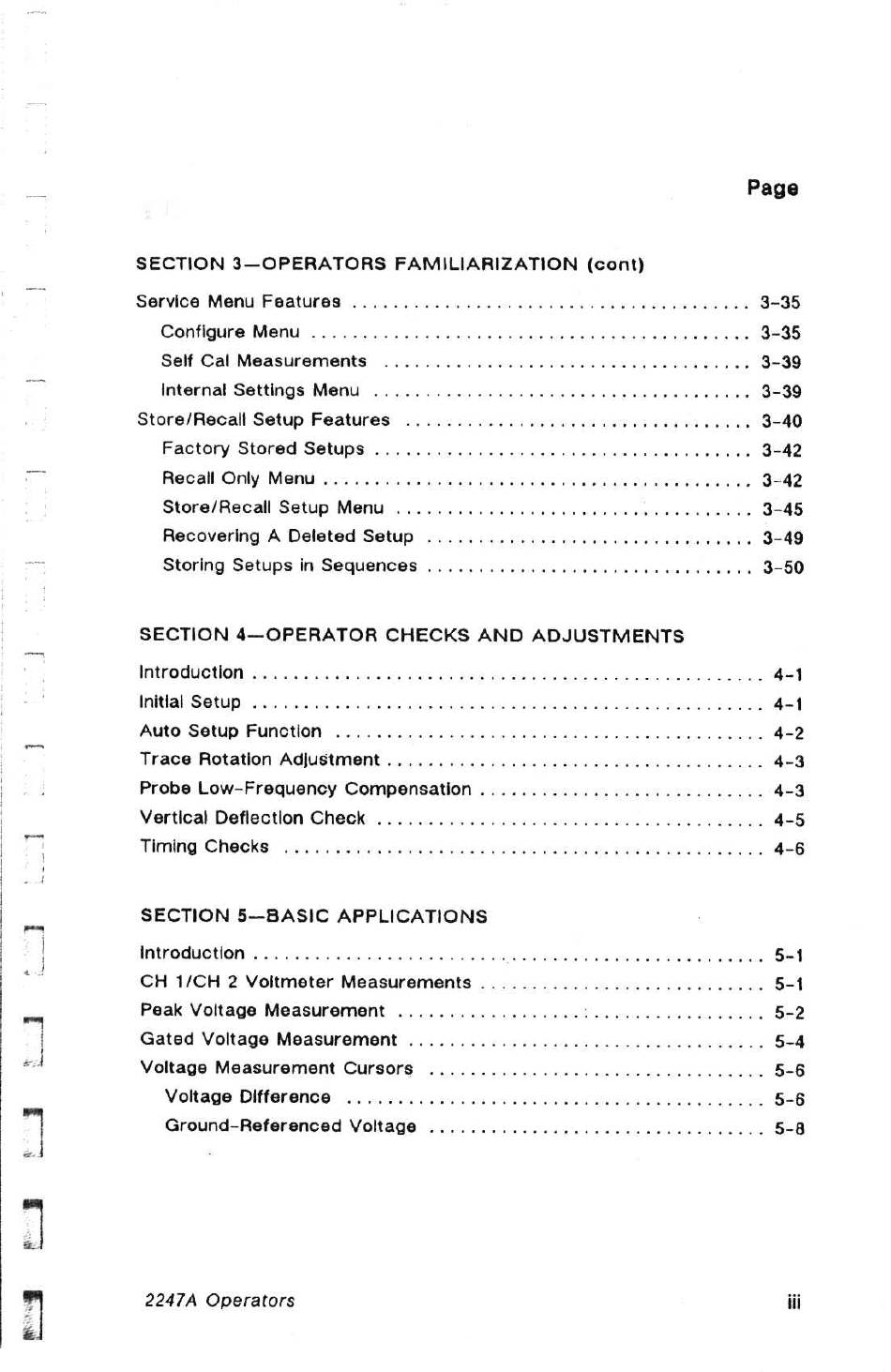

Tektronix 2247A Operator's Manual page 8

Page
SECTION 3—OPERATORS FAMILIARIZATION (cont)
Service Menu Features . . 3-35
Configure Menu... 0... cece cece eee tenn . 3-35
Self Cal Measurements ......... 0060s cece cece cence ees 3-39
Internal Settings Menu ...... 0.2... eee cere eens 3-39
Store/Recall Setup Features... 00... ccc cece eee eee 3-40
Factory Stored Setups ......... 0... cece cece eee 3-42
Recall Only Menu ..... . 3-42
Store/Recall Setup Menu 3-45
Recovering A Deleted Setup ......... 0... cece cee eee e eens 3-49
Storing Setups in Sequences ........ 0.0.0... ccc cee ce eens 3-50
SECTION 4—OPERATOR CHECKS AND ADJUSTMENTS
Introduction
Initial Setup
Auto Setup Function
Trace Rotation Adjustment
Probe Low-Frequency Compensation
Vertical Deflection Check .
Timing Checks
SECTION 5—BASIC APPLICATIONS
Peak Voltage Measurement
Gated Voltage Measurement
Voltage Measurement Cursors
Voltage Difference
Ground-Referenced Voltage
2247A Operators iii
