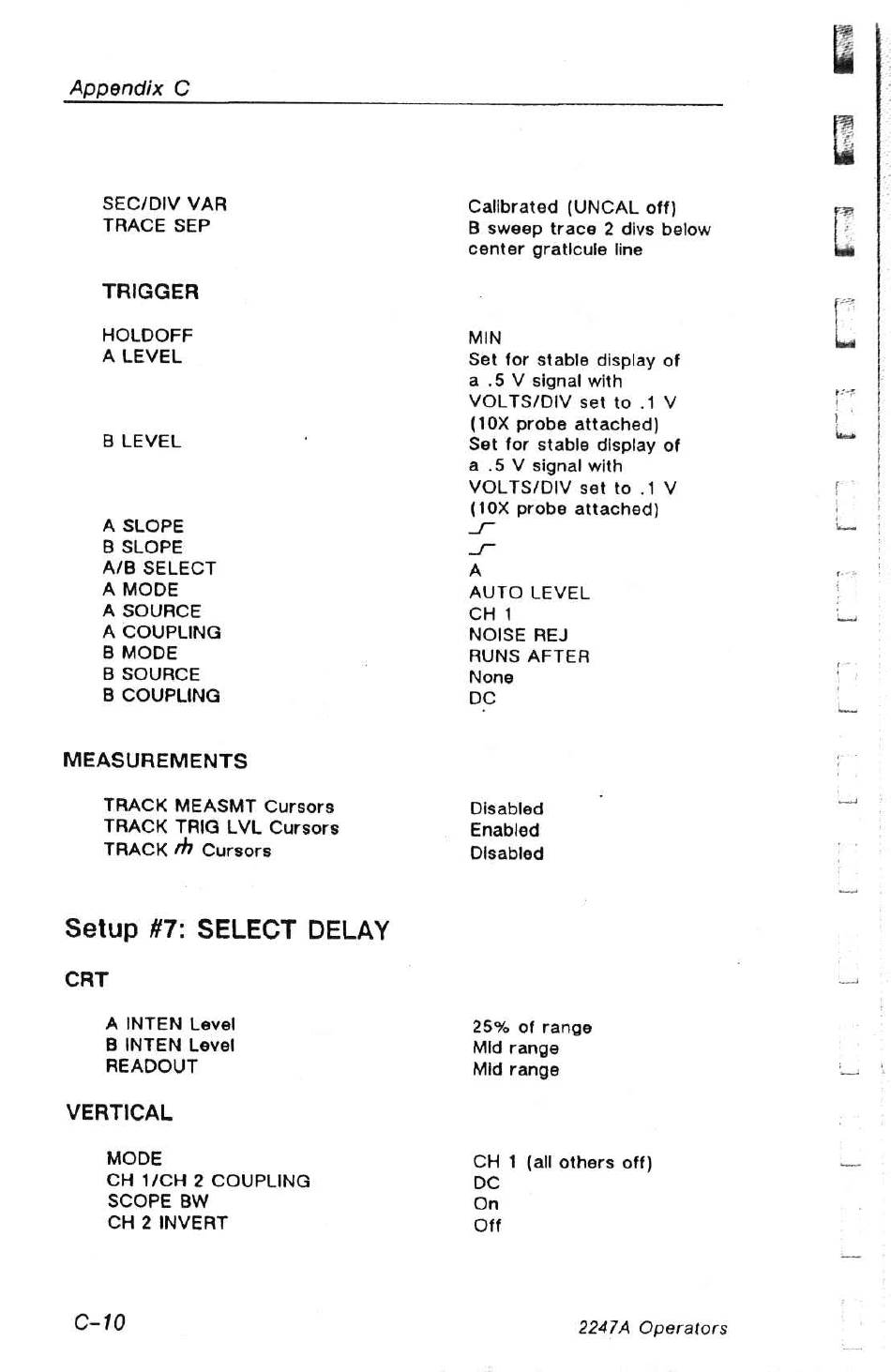

Tektronix 2247A Operator's Manual page 260

Appendix C
SEC/DIV VAR Calibrated (UNCAL off)
TRACE SEP B sweep trace 2 divs below
center graticule line
TRIGGER
HOLDOFF MIN
A LEVEL
Set for stable
display
of
a .§ V signal with
VOLTS/DIV set to .1V
(10X probe attached)
B LEVEL Set for stable display of
a .§ V signal with
VOLTS/DIV set to .1 V
(10X probe attached)
A SLOPE S-
B SLOPE ak
A/B SELECT A
A MODE AUTO LEVEL
A SOURCE CH 1
A COUPLING NOISE REJ
B MODE RUNS AFTER
B SOURCE None
B COUPLING bc
MEASUREMENTS
TRACK MEASMT Cursors Disabled
TRACK TRIG LVL Cursors Enabled
TRACK "4 Cursors Disabled
Setup #7: SELECT DELAY
CRT
A INTEN Level
B INTEN Level
READOUT
VERTICAL
MODE
CH 1/CH 2 COUPLING
SCOPE BW
CH 2 INVERT
C-10
25% of range
Mid range
Mid range
CH 1 (all others off)
bc
On
Off
2247A Operators
