Performance Check Procedure

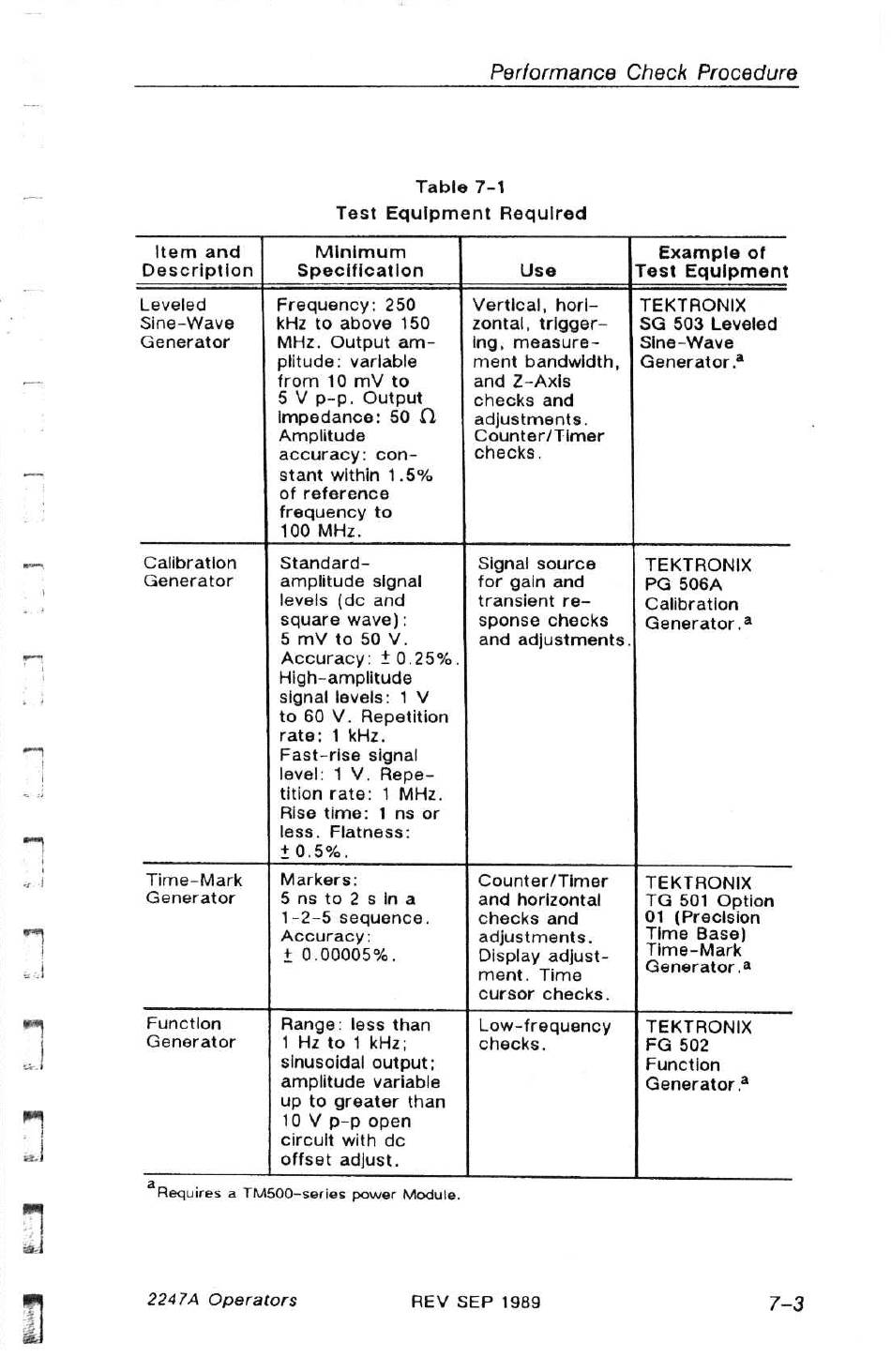

Table 7-1
Test Equipment Requlred
Item and Minimum Example of
Description Specification Use Test Equipment
Leveled Frequency: 250 Vertical, horl- TEKTRONIX
Sine-Wave kHz to above 150 zontal, trigger- | SG 503 Leveled
Generator MHz. Output am- ing, measure- Sine-Wave
plitude: variable ment bandwidth, | Generator ?
from 10 mV to and Z-Axis
5 V p-p. Output checks and
Impedance: 50 1 adjustments.
Amplitude Counter/Timer
accuracy: con- checks.
stant within 1.5%
of reference
frequency to
100 MHz.
Calibration Standard- Signal source TEKTRONIX
Generator amplitude signal for gain and PG 506A
levels (de and transient re- Calibration
square wave): sponse checks Generator.2
5 mV to 50 V. and adjustments.
Accuracy: + 0.25%.
High-amplitude
signal levels: 1 V
to 60 V. Repetition
rate: 1 kHz.
Fast-rise signal
level: 1 V. Repe-
tition rate: 1 MHz.
Rise time: 1 ns or
less. Flatness:
+0.5%.
Time-Mark Markers: Counter/Timer TEKTRONIX
Generator Snsto2sina and horizontal TG 501 Option
1-2-5 sequence. checks and 01 (Precision
Accuracy: adjustments. Time Base)
+ 0,00005%, Display adjust- | Time-Mark |
ment. Time Generator.
cursor checks.
Function Range: less than Low-frequency TEKTRONIX
Generator 1 Hz to 1 kHz; checks. FG 502
sinusoidal output; Function
amplitude variable
up to greater than
10 V p-p open
circult with de
offset adjust.
Generator ?
* Requires a TM500-series power Module.
2247A Operators REV SEP 1989
