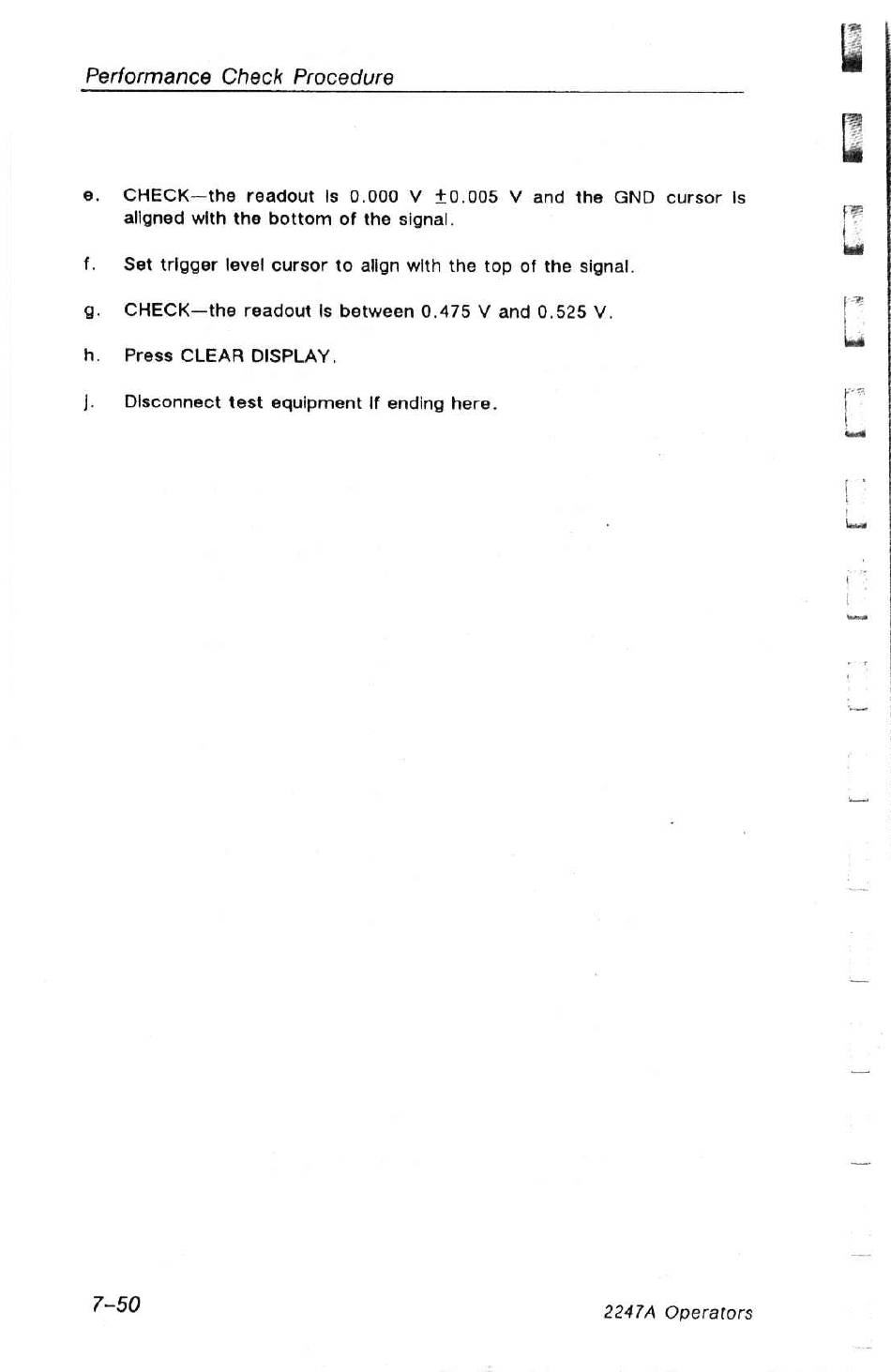

Tektronix 2247A Operator's Manual page 221

Portable oscilloscope
Hide thumbs Also See for 2247A:
Table of Contents

Advertisement

Performance
Check Procedure
e.
CHECK—the
readout
Is 0.000
V
+0.005
V and
the GND
cursor
Is
aligned with the bottom
of the signal.
f.
Set trigger level cursor to align with the top of the signal.
g.
CHECK—the
readout
is between
0.475 V and 0.525 V.
h.
Press CLEAR DISPLAY.
J.
Disconnect test equipment If ending here.
