Operators Familiarization
Introduction
Pressing one of the menu call-up buttons causes a list of menu items to be
displayed on the right-hand side of the CRT beside a group of six Menu Item
Select buttons
(see Figure 3-3).
Pressing
the menu
button next to a menu
Item on the display selects that function (l.e., to another menu page, a
measurement
selection,
a measurement
source channel,
service feature,
store/recall setup features, or menu off). When a measurement mode,
measurement source channel, or service feature In the menu list Is
selected, that label Is underlined.
MEN
so MENU MEASUREMENTS
CLEAR MEASMT LAST | VOLT- CURSOR COUNTER/JRECALL
DISPLAY CHANNEL MEAS MI|METER VOLTS
MENU-SELECT BUTTONS
6373-11

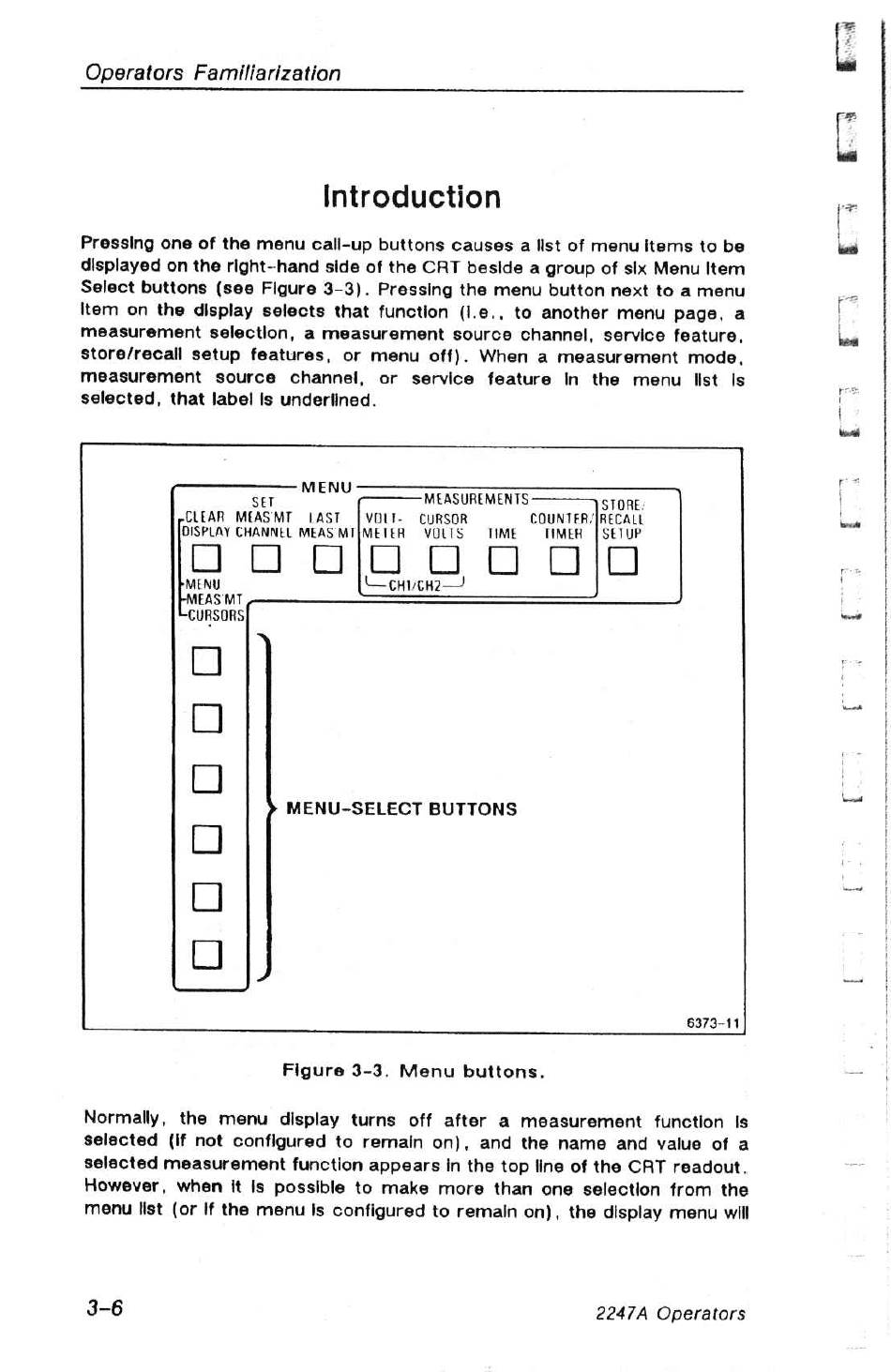

Figure 3-3. Menu buttons.
