LOCATION DECISION

Decide the charge station's location before installation. As Izar's protection reaches to TYPE 4
(IP65) /IK10, it can be installed both indoors and outdoors except for hazardous area such as sites that
are vulnerable to fire or explosion.

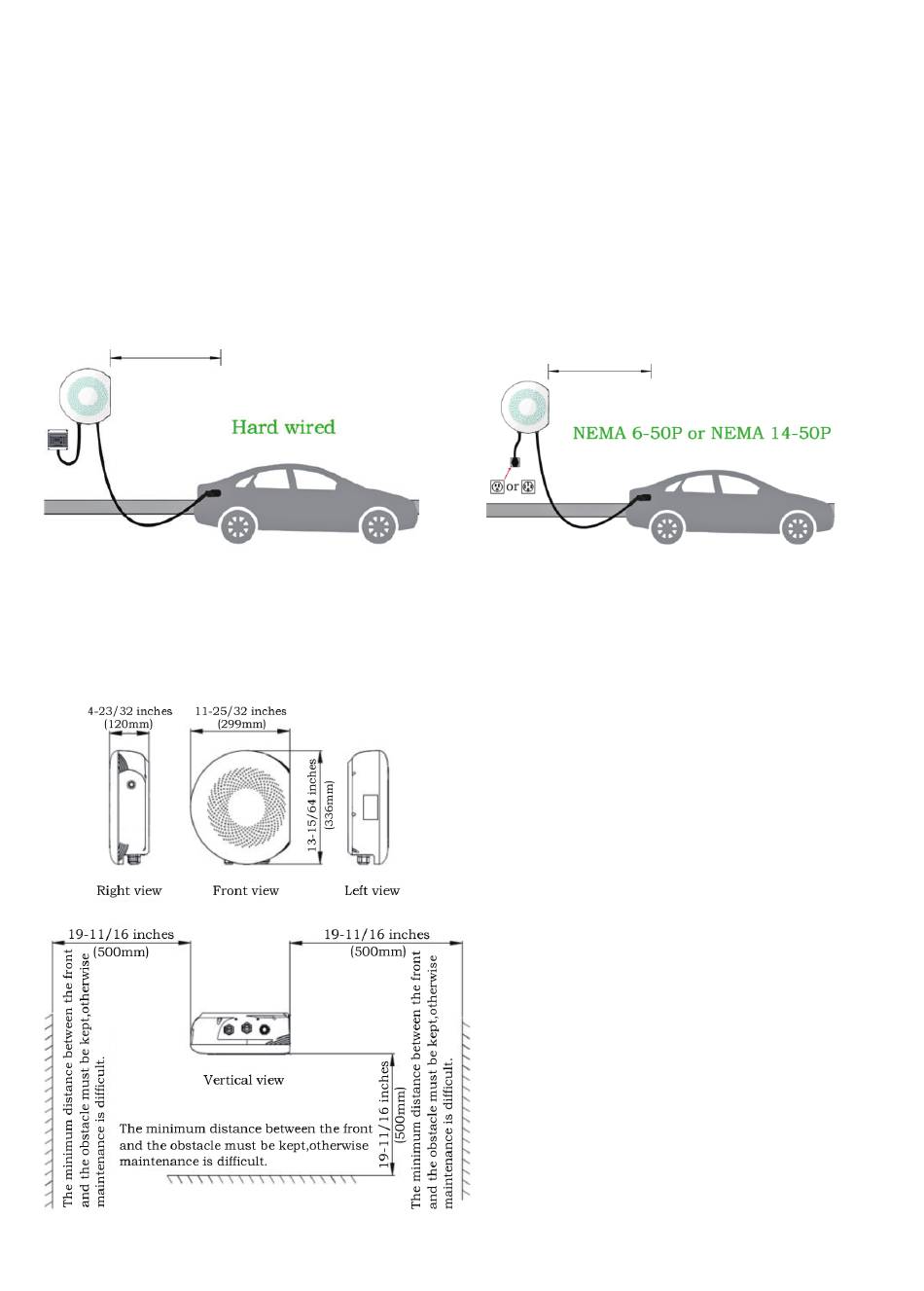

Wall-mounted installation
1. Ensure the location allows the cable to reach the car's charging port while not be taut.
2. There are 3 groups of models (9 models in total) of Izar: SEA 240/40I-U-6/6W/6Y, SEA
240/40I-U-14/14W/14Y and SEA 240/48I-U-H/HW/HY. The former two groups are equipped with
plug while the last one is equipped with an input cable of 31-1/2 inches (0.8m) length. If the charger
is installed outdoors, an anti-corrosion outlet is needed. And the outlet should be equipped with a
7
high-level waterproof box to ensure there is no
chance for water to get inside and thus lead to
electroshock.
3. Ensure enough space are left around the Izar
AC charging station to facilitate future
maintenance.
4. Recommended non-GFCI and dual-pole
breaker for Izar:
For SEA 240/40I-U-6/6W/6Y
240/40I-U-14/14W/14Y: 50A
For SEA 240/48I-U-H/HW/HY: 60A
5. Please note that if the charger is installed in
areas that thunderstorms
occurred, ensure the grounding is effective and
stable and the upper breaker and the bus should
be tightly connected. Please clear all oxide
from conductors and terminals.
and SEA
are frequently
