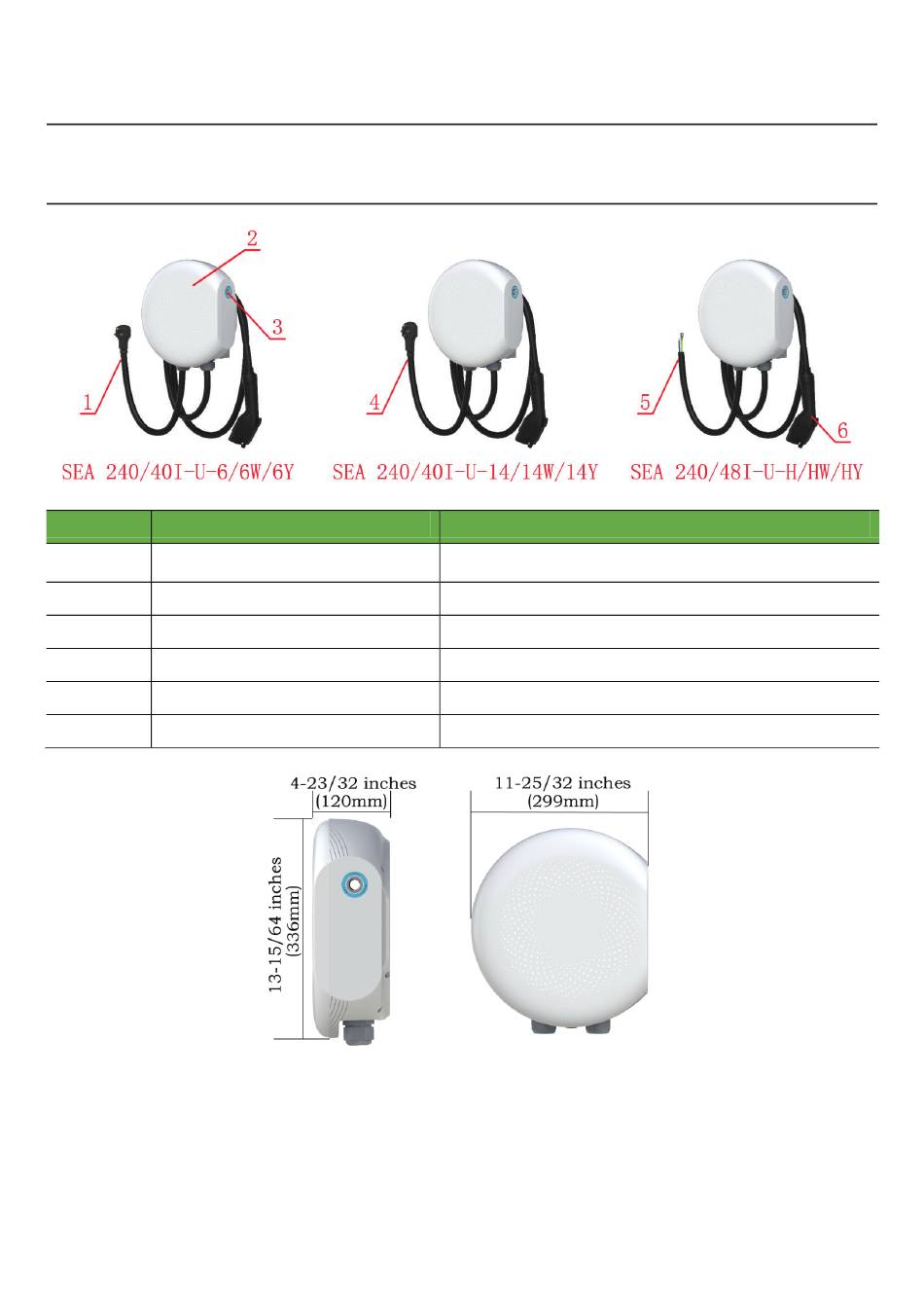

PRODUCT APPEARANCE INTRODUCTION

1. NEMA 6-50P plug
4. NEMA 14-50P plug
No Name
1 NEMA 6-50P plug
2 LED light
3 Reset button
4 NEMA 14-50P plug
5 31-1/2 inches (0.8m) input cable
6 Charging connector
NOTE:
1. Izar series are identical in size and appearance.
2. If the button returns to its initial state within 5 seconds after the reset button is pressed, the
reset function is performed; if the button does not rebound within 5 seconds after the reset
button is pressed, it is necessary to let the button rebound and then perform the reset
operation again. It is normal for the light to go out during the reset process, and when the
reset is complete, the light will return to green, indicating that the charger is in standby
mode!
15
2. LED light
5. 31-1/2 inches (0.8m) input cable
To get power from the grid with NEMA 6-50R outlet
To display charging and standby status
AC Charger soft reboot
To get power from the grid with NEMA 14-50R outlet
To get power from the grid with hard-wired installation
Connect to the car
3. Reset button
6. Charging connector
Functions
